Manual Transmission: 5B-2
Repair Instructions

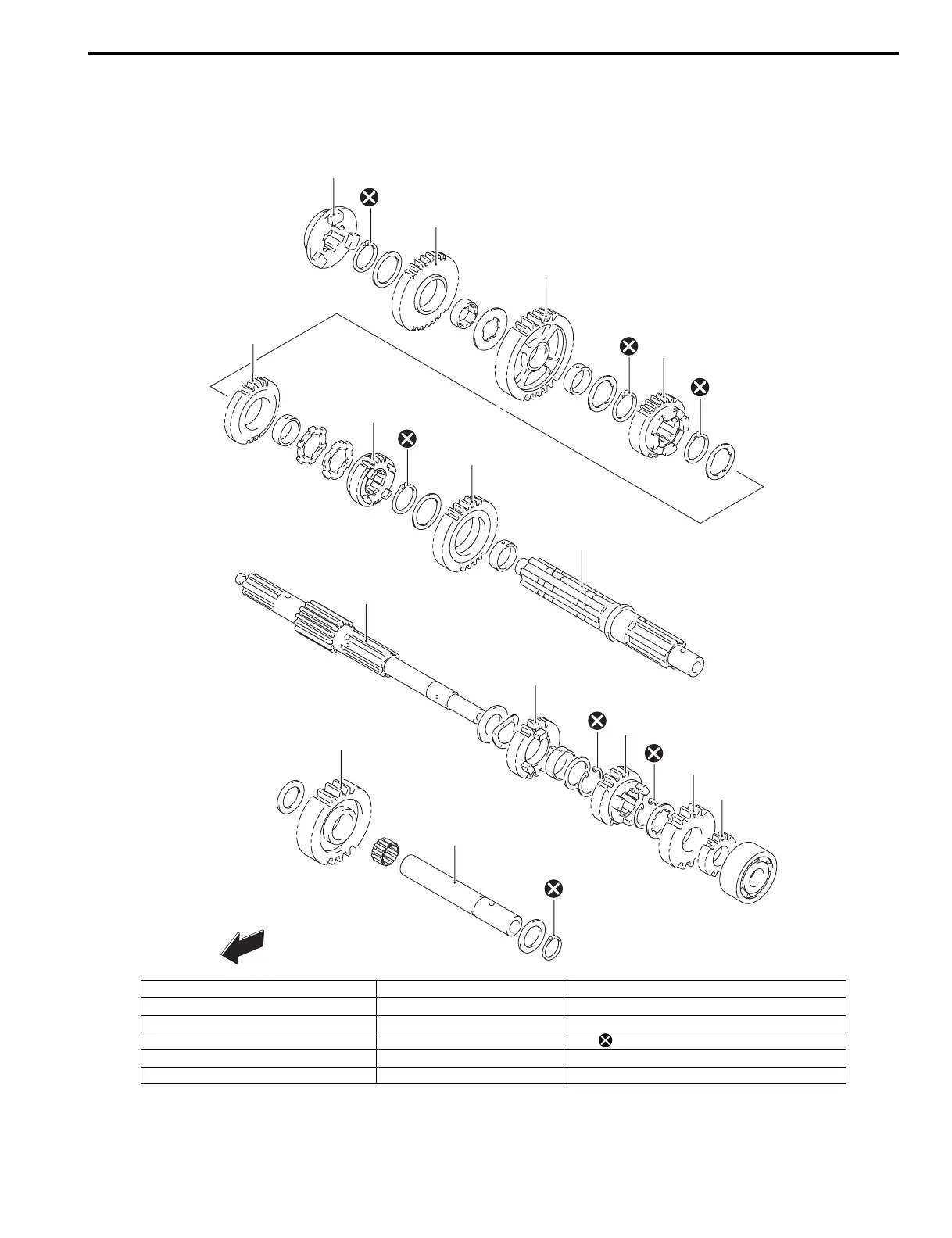

Transmission Components (LT-F400/F)
B827H15206001
1
2
3
4
8
7
6
5
9
10
11
12
13
15
14
FWD
FWD
I827H1520031-02
1. Reverse gear dog 7. 2nd driven gear 13. 2nd drive gear
2. Reverse driven gear 8. Driveshaft 14. Reverse idle gear
3. 1st driven gear 9. Countershaft 15. Reverse idle shaft
4. 4th driven gear 10. 4th drive gear : Do not reuse.
5. 3rd driven gear 11. 3rd drive gear
6. 5th driven gear 12. 5th drive gear
