9B-6 Lighting Systems:
Installation
Install the rear combination light in the reverse order of
removal.

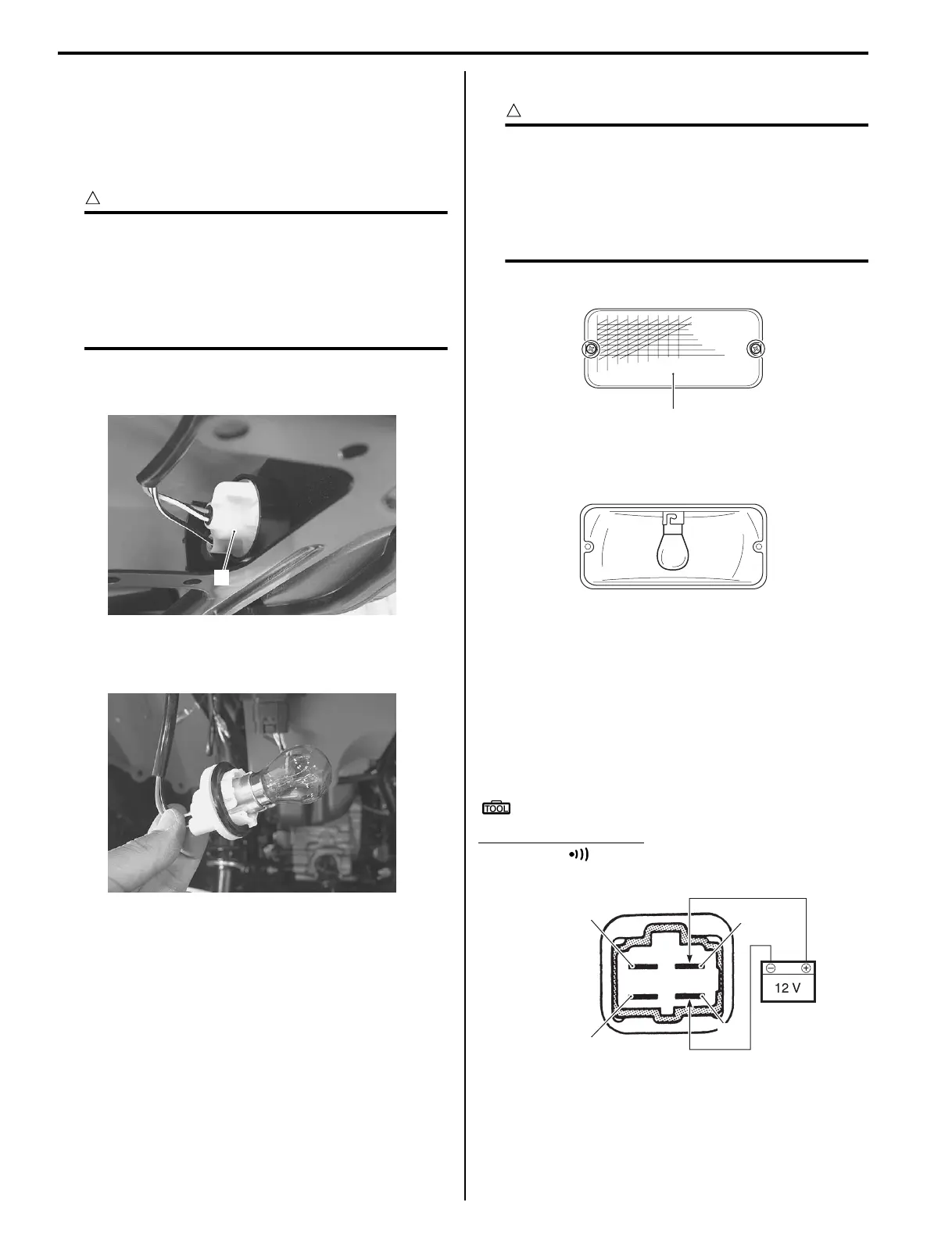

Rear Combination Light Bulb Replacement
B827H19206011
CAUTION
!
• If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent
premature bulb failure.
• Do not use bulb other than those with
predetermined wattage.
1) Remove the bulb socket (1) by turning it
counterclockwise.
2) Push in the bulb and turn it counterclockwise.
3) Replace the bulb.
4) Reinstall the removed parts.
Reversing Light Bulb Replacement (For P-17)
B827H19206012
CAUTION
!
• If you touch the bulb with your bare hands,
clean the bulb with a cloth moistened with
alcohol or soapy water to prevent
premature bulb failure.
• Do not use bulb other than those with
predetermined wattage.
1) Remove and the reversing light lens (1).
2) Push the bulb in and turn it to counterclockwise.
3) Replace the bulb.
4) Reinstall the removed parts.
Reversing Light Relay Inspection (For P-17)
B827H19206013
First, check the insulation between “A” and “B” terminals
with the multi-circuit tester. Then apply 12 V to terminals
“C” and “D” ((+) to “C” and (–) to “D”) and check the
continuity between “A” and “B”. If there is no continuity,
replace the reversing light relay with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Continuity ( )
1
I827H1920013-01
I827H1920014-01
1
I827H1920015-02
I827H1920016-01
“A”
“B”
“C”
“D”
I831G1920028-01
