Suzuki LT-A400F - Steering Assembly Construction

Steering / Handlebar: 6B-2

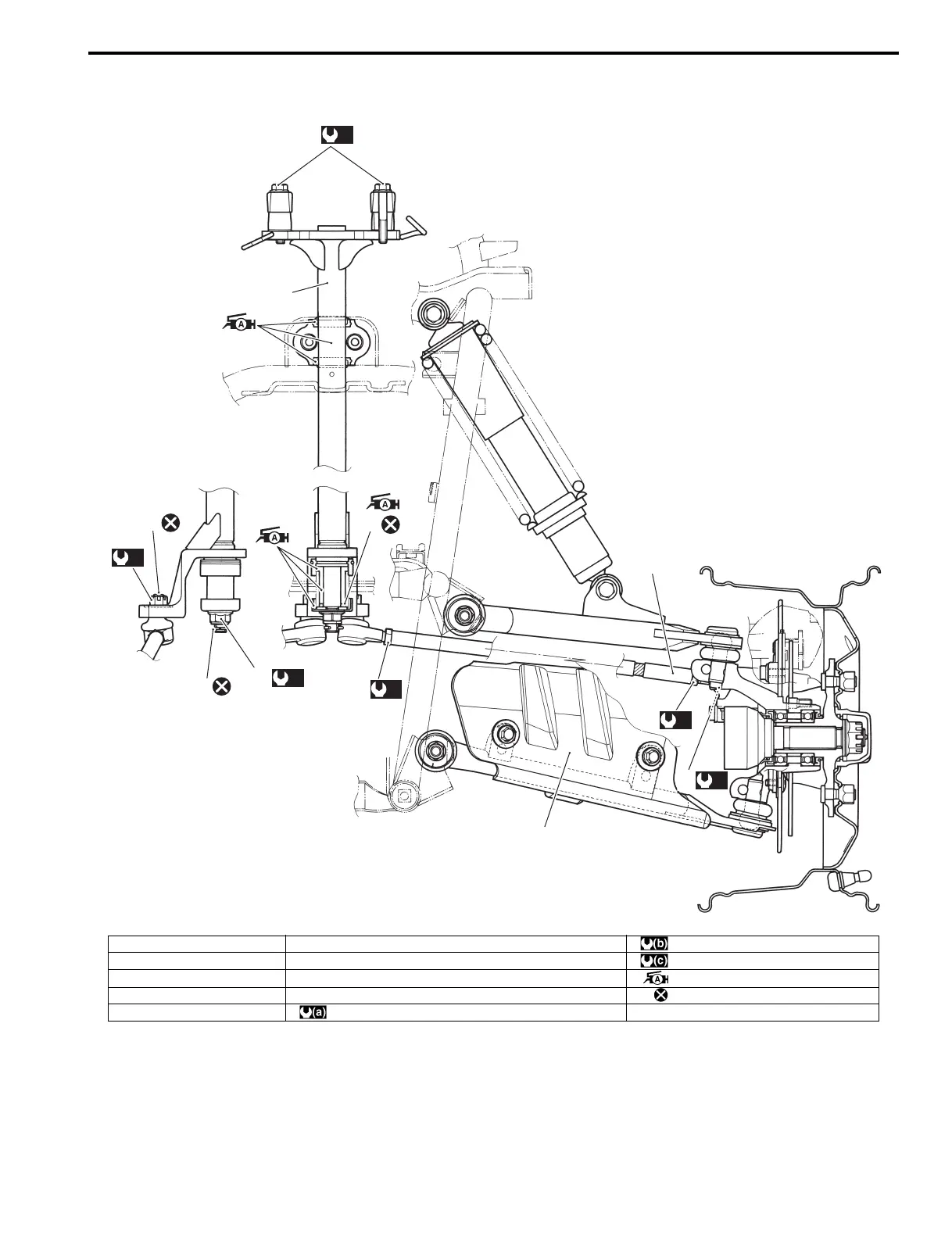

Steering Assembly Construction
B827H16206008
(c)
8
1
7
(a)
3
7
(a)
4
6
9
(a)
4
(a)
1
2
(b)
5
I827H1620001-03
1. Steering shaft 6. O-ring : 49 N⋅m (4.9 kgf-m, 35.5 lb-ft)
2. Tie-rod 7. Cotter pin : 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
3. Tie-rod end nut 8. Handlebar clamp bolt : Apply grease.
4. Tie-rod lock-nut 9. Drive shaft protector (LT-A400F, LT-F400F) : Do not reuse.
5. Steering shaft lower nut : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
