Suzuki LT-A400F Service Manual

5A-5 Automatic Transmission:
Repair Instructions

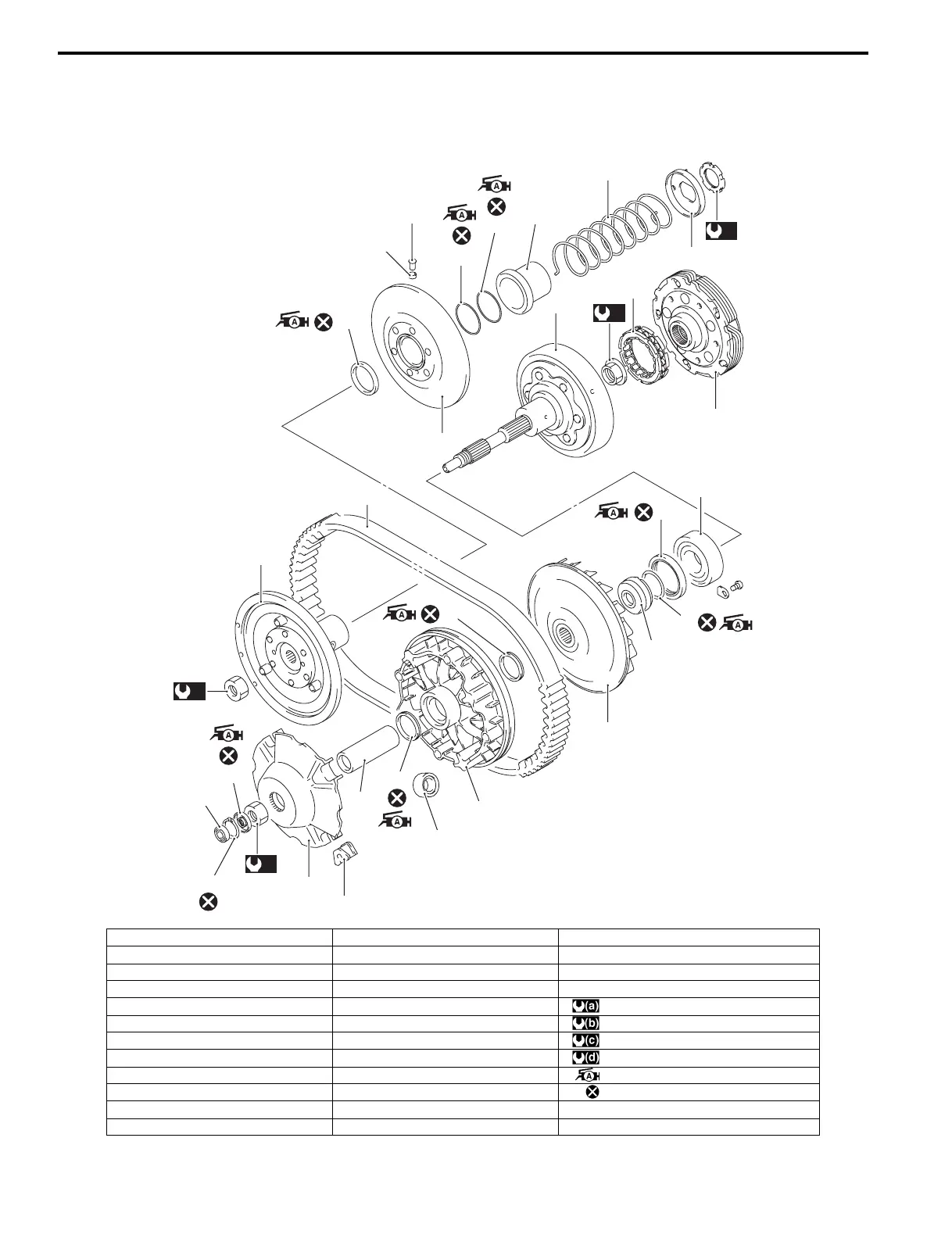

Automatic Transmission Components
B827H15106001
(b)
(a)
(c)
(d)
1
3
5
6
7
8
9
11
10
24
26
25
27
28
20
23
22
22
21
12
13
14
15
16
17
18
19
4
2
I827H1510004-03
1. Clutch shoe assembly 13. Spacer 25. Movable driven face
2. One way clutch 14. Movable driven plate 26. Oil seal
3. Clutch wheel 15. Damper 27. Drive V-belt
4. Bearing 16. Oil seal 28. Fixed driven face
5. Oil seal 17. Snap ring : 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)
6. O-ring 18. Bearing : 115 N⋅m (11.5 kgf-m, 83.0 lb-ft)
7. Collar 19. Spring plate : 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
8. Fixed drive face 20. Spring : 115 N⋅m (11.5 kgf-m, 83.0 lb-ft)
9. Oil seal 21. Spring seat : Apply grease.
10. Movable drive face 22. O-ring : Do not reuse.
11. Oil seal 23. Pin
12. Roller 24. Roller
