Rear Brakes: 4C-1
Brake
Rear Brakes
Precautions
Precautions for Rear Brake
B827H14300001
WARNING
!
When servicing the rear brake system, place the vehicle on a level ground and support the vehicle with
a jack.
Schematic and Routing Diagram

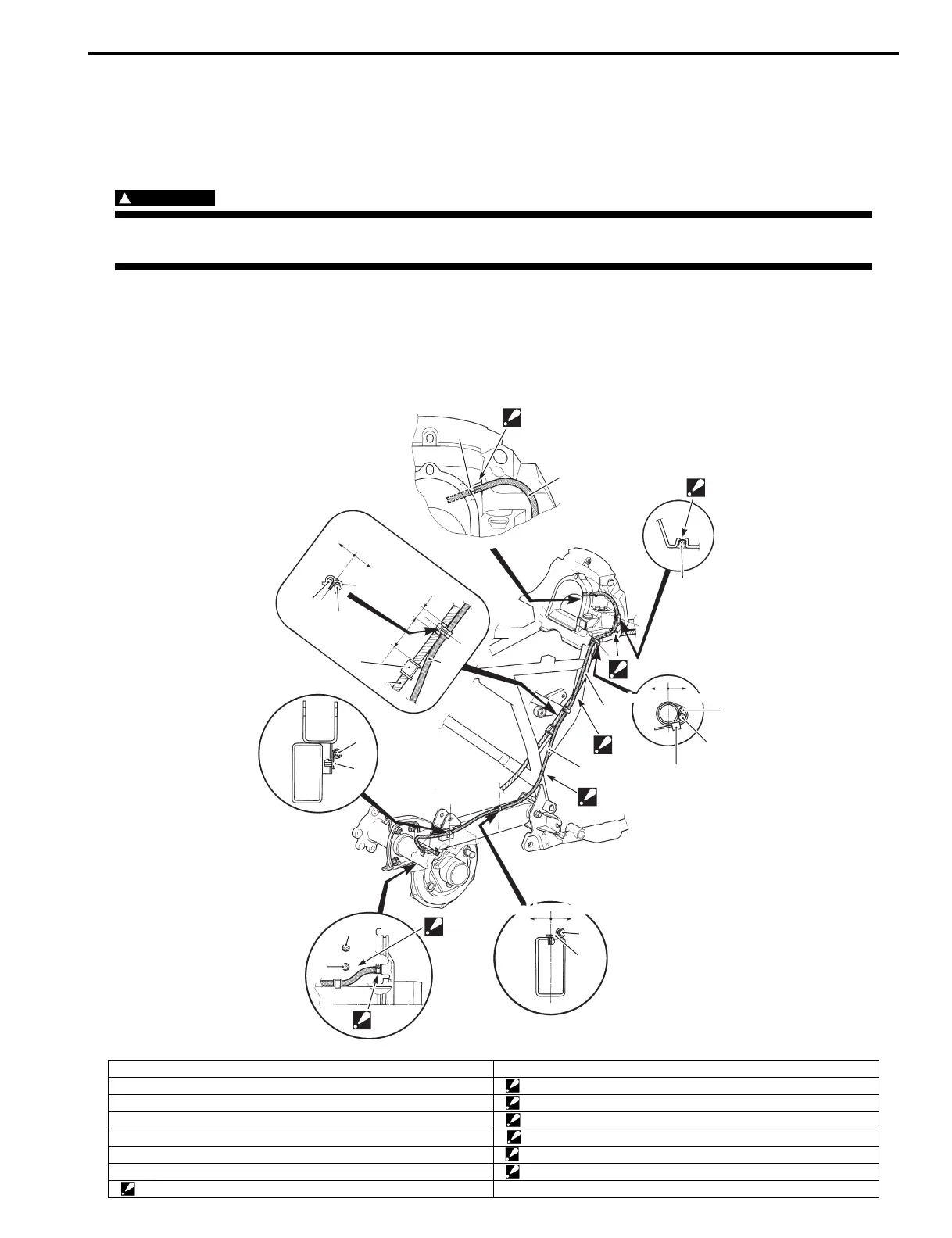

Rear Brake Breather Hose Routing Diagram
B827H14302001
Inside
Outside
4
1
3
“a”
5
4
1
“A”
1
“D”
Inside
Outside
1
2
4
4
“E”
1
“F”
Inside
Outside
1
2
4
6
“H”
“G”
1
2
“C”
1
“B”
I827H1430033-03
1. Rear brake breather hose “B”: White marking
2. Clamp “C”: Set the breather hose firmly.
3. Clip “D”: Pass the breather hose to the hole of the fuel tank upper cover.
4. Parking brake cable “E”: Pass the breather hose outside of the parking brake cable.
5. Brake cable plate “F”: Pass the breather hose outside of the frame.
6. Rear brake cable “G”: Be careful not to contact the brake cables with the breather hose.
“a”: 45 mm (1.8 in) “H”: Insert the breather hose firmly.
“A”: Insert the breather hose to the hole of the fuel tank upper cover.
