Body Structure: 9E-6
Installation

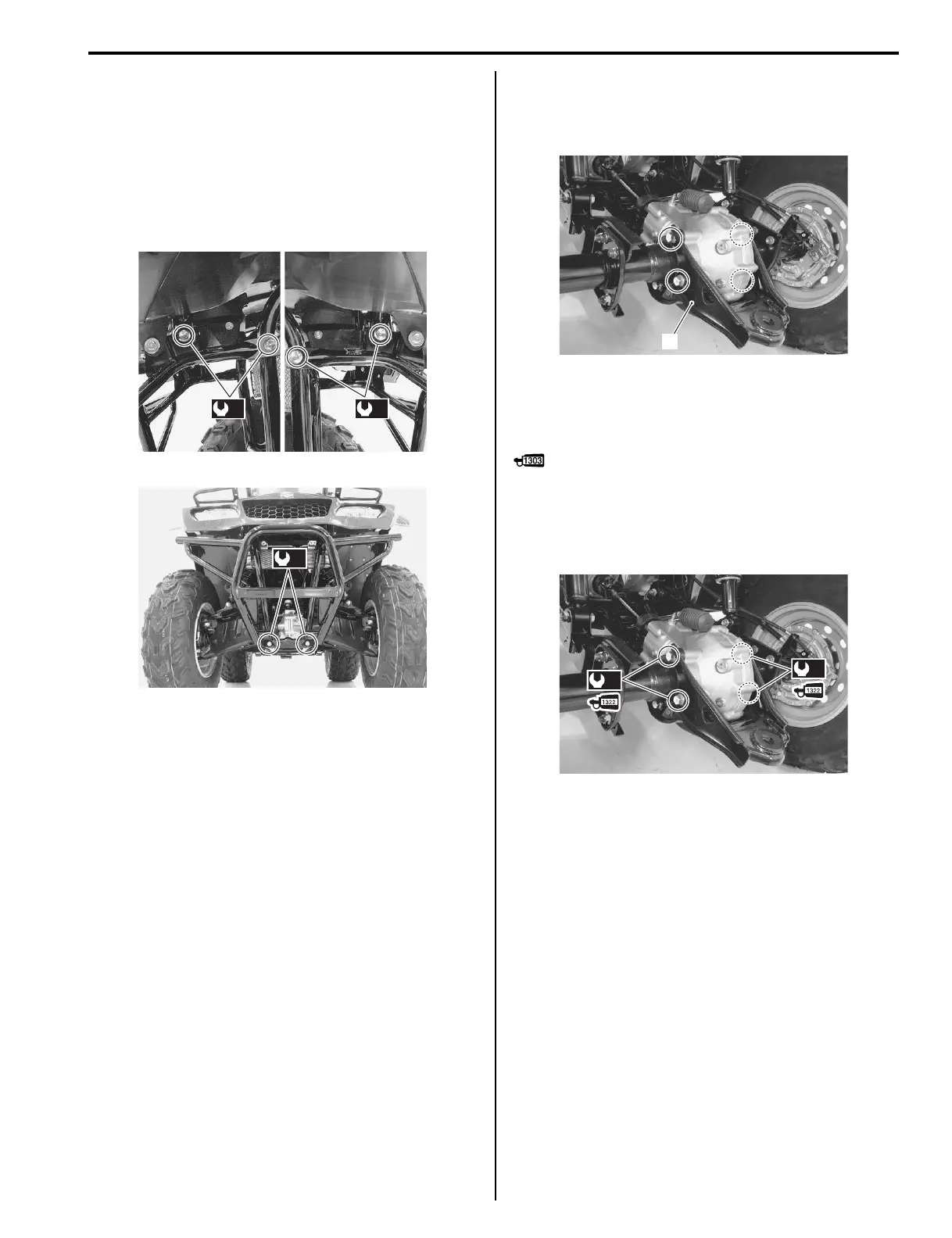

Install the front grip bar in the reverse order of removal.
Pay attention to the following point:
• Tighten the front grip bar mounting bolts to the
specified torque.
Tightening torque
Front grip bar mounting bolt (a): 28 N·m (2.8 kgf-
m, 20.0 lb-ft)
Trailer Towing Removal and Instruction
B827H19506010
Removal
Remove the trailer towing (1) by removing the bolts.
Installation
Apply thread lock to the rear axle housing mounting bolts
and tighten them to the specified torque.
: Thread lock cement 99000–32030 (THREAD
LOCK CEMENT SUPER 1303 or equivalent)
Tightening torque
Rear axle housing mounting bolt (final gear case)
(a): 55 N·m (5.5 kgf-m, 40.0 lb-ft)
(a) (a)
I827H1950015-02
(a)
I827H1950016-02
1
I827H1950017-01
(a)
(a)
I827H1950018-01
