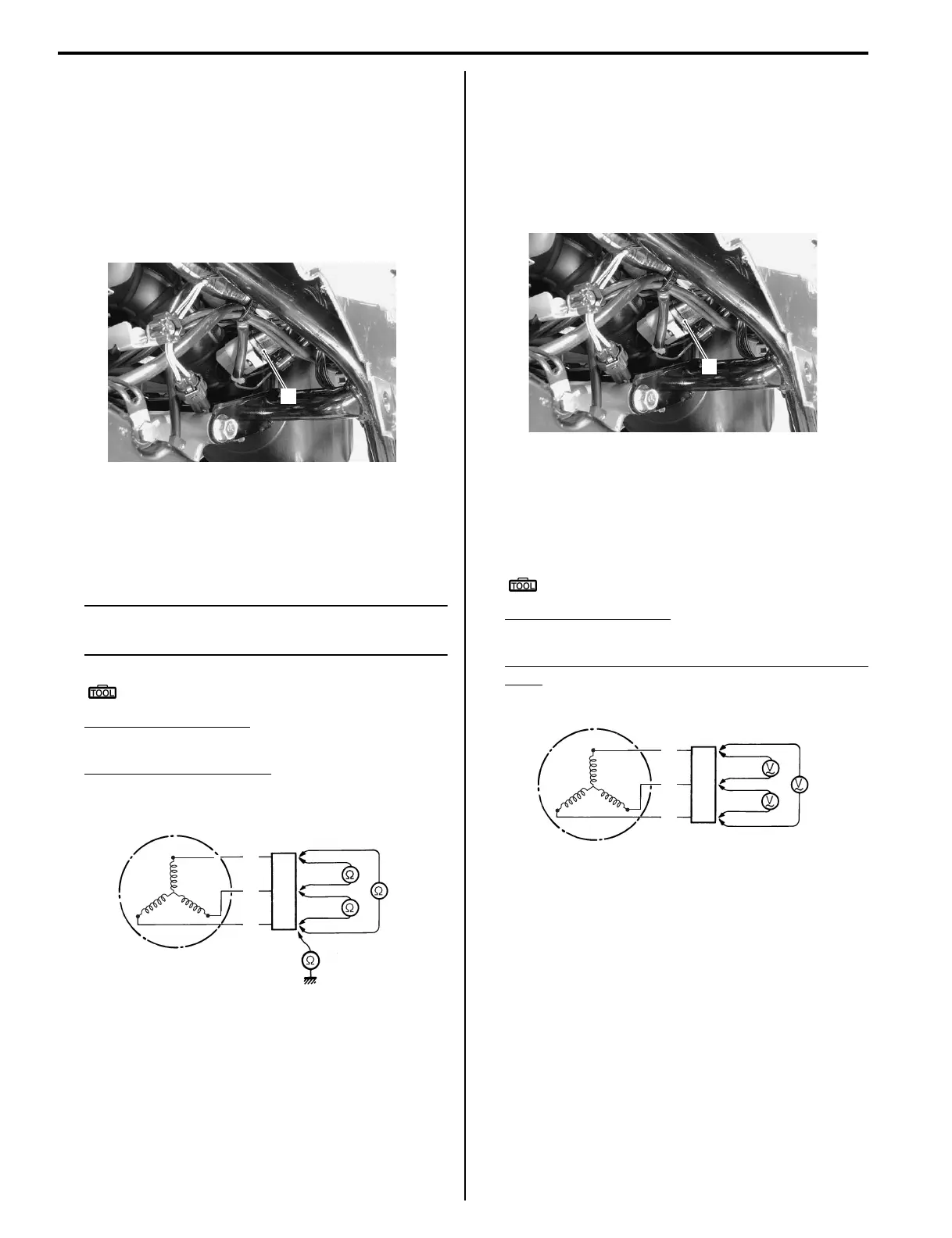

1J-4 Charging System:
Generator Inspection
B827H11A06003
Generator Coil Resistance
1) Remove the left side cover and left footrest
mudguard. Refer to “Exterior Parts Removal and
Installation in Section 9D (Page 9D-3)”.
2) Connect the tachometer to the spark plug high
tension cord.
3) Disconnect the generator lead wire coupler (1).
4) Measure the resistance between the three lead
wires.
If the resistance is out of specified value, replace the
stator with a new one. Also, check that the generator
core is insulated properly.
NOTE
When making this test, it is not necessary to
remove the generator.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Resistance (Ω)
Generator coil resistance
0.3 – 1.5 Ω
∞ Ω (B – Ground)
5) After finishing the inspection, reinstall the removed
parts.
No-load Performance
1) Remove the left side cover and left footrest
mudguard. Refer to “Exterior Parts Removal and
Installation in Section 9D (Page 9D-3)”.
2) Connect the tachometer to the spark plug high-
tension cord.
3) Disconnect the generator lead wire coupler (1).
4) Start the engine and keep it running at 5 000 r/min.
5) Using the multi-circuit tester, measure the voltage
between three lead wires.
If the tester reads under the specified value, replace
the generator with a new one.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Voltage (~)
Generator no-load performance (When engine is
cold)
65 V (AC) and more at 5 000 r/min
6) After finishing the inspection, reinstall the removed
parts.
1
I827H11A0002-01
B
B
B
I827H11A0003-02
1
I827H11A0004-01
B
B
B
I827H11A0005-02
