Suzuki LT-A400F Service Manual

4C-2 Rear Brakes:
Repair Instructions

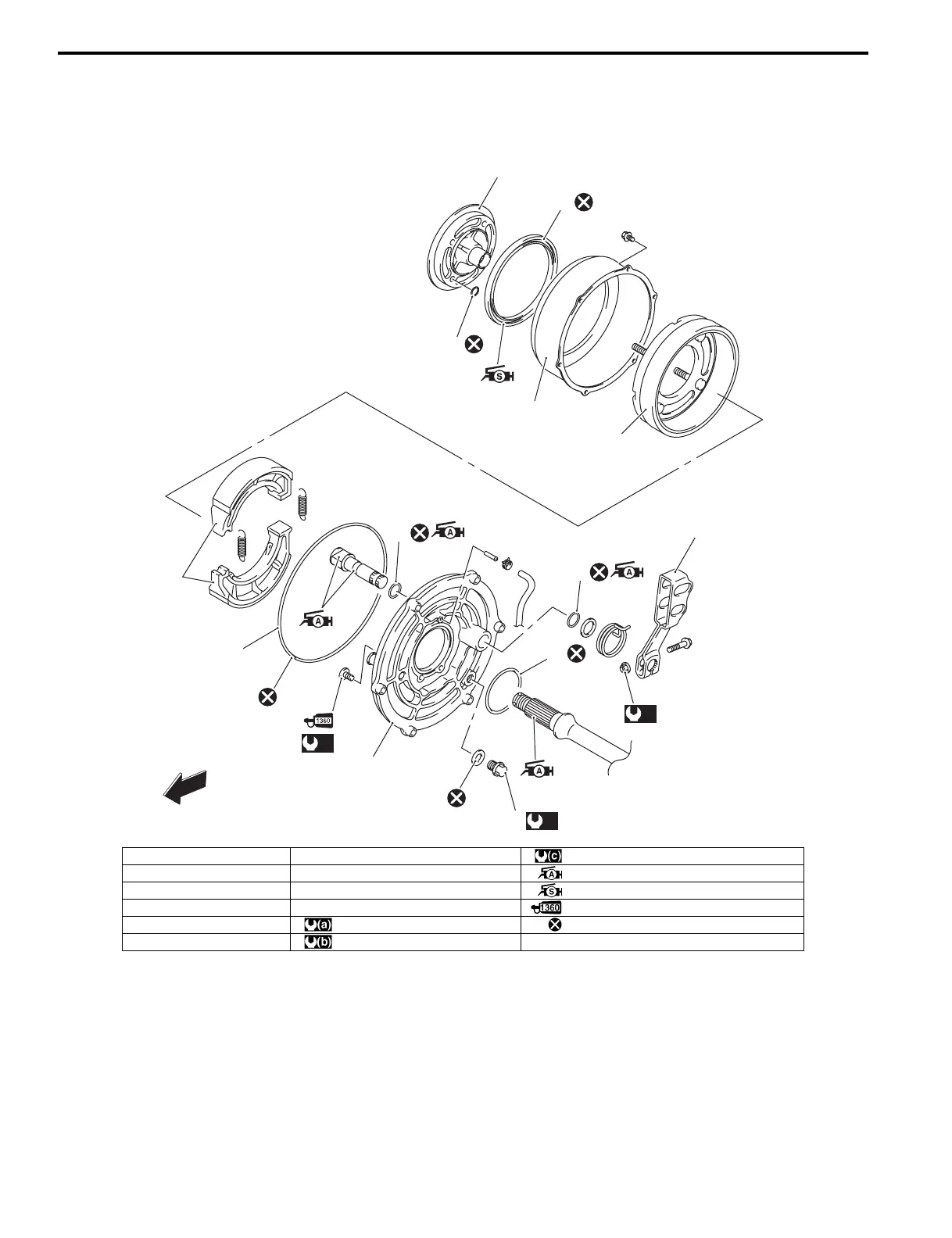

Rear Brake Components
B827H14306001
FW
D
FWD
2
2
2
2
(b)
(c)
9
1
2
3
5
6
7
8
4
(a)
“A”
I827H1430039-03
1. Rear hub 7. Brake anchor panel : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft)
2. O-ring 8. Brake cam lever : Apply grease.
3. Dust seal 9. Rear brake drain plug : Apply silicone grease
4. Drum cover “A”: Apply soap water to the O-ring : Apply thread lock to the thread part.
5. Brake drum : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft) : Do not reuse.
6. Brake shoe : 32 N⋅m (3.2 kgf-m, 23.0 lb-ft)
