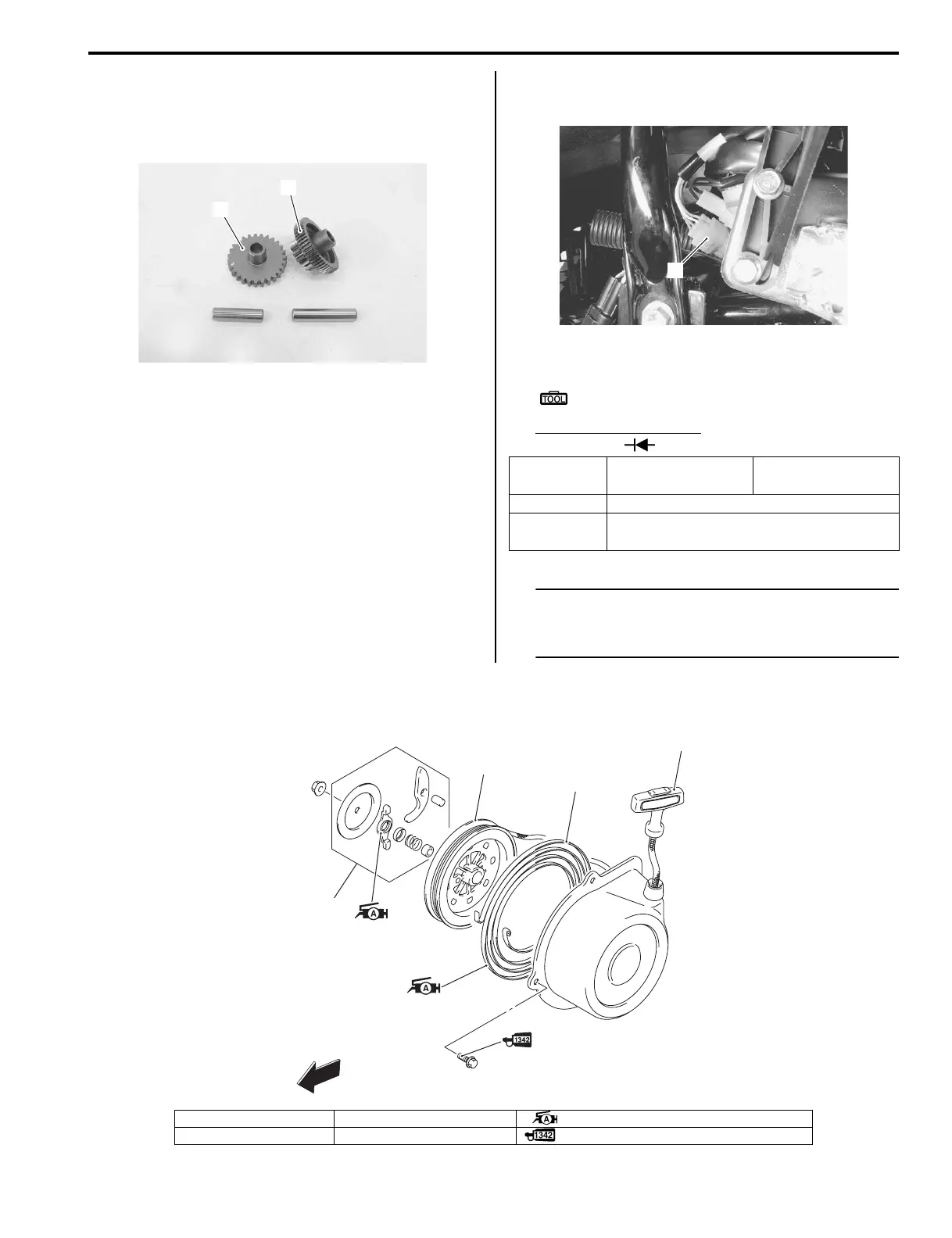

Starting System: 1I-12
Starter Idle Gear
Inspect the starter idle gear No.1 (1) and No.2 (2) for
wear or damage. If any damage is found, replace it with
a new one.
Starter Button Inspection
B827H11906017
Inspect the starter button in the following procedures:
1) Remove the left inner fender. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.
2) Disconnect the handlebar switch coupler (1)
(Yellow).
3) Measure the voltage between Y/G and O lead wires.
Special tool
: 09900–25008 (Multi-circuit tester set)
Tester knob indication
Diode test ( )
NOTE
If the tester reads 1.4 V and below when the
tester probes are not connected, replace its
battery.
Recoil Starter Components
B827H11906018
1
2
I827H1190034-02
Y/G
((+) probe)
O
((–) probe)
ON 0.4 – 0.6 V
OFF
1.4 V and more
(Tester’s battery voltage)
1
I827H1180009-01
1
2
3
4
FWD
I831G1190046-04
1. Ratchet set 3. Spiral spring : Apply grease.
2. Reel 4. Rope assembly : Apply thread lock to the thread part.
To Next Page
