0B-11 Maintenance and Lubrication:
8) Install the front under cover. Refer to “Exterior Parts
Removal and Installation in Section 9D (Page 9D-
3)”.

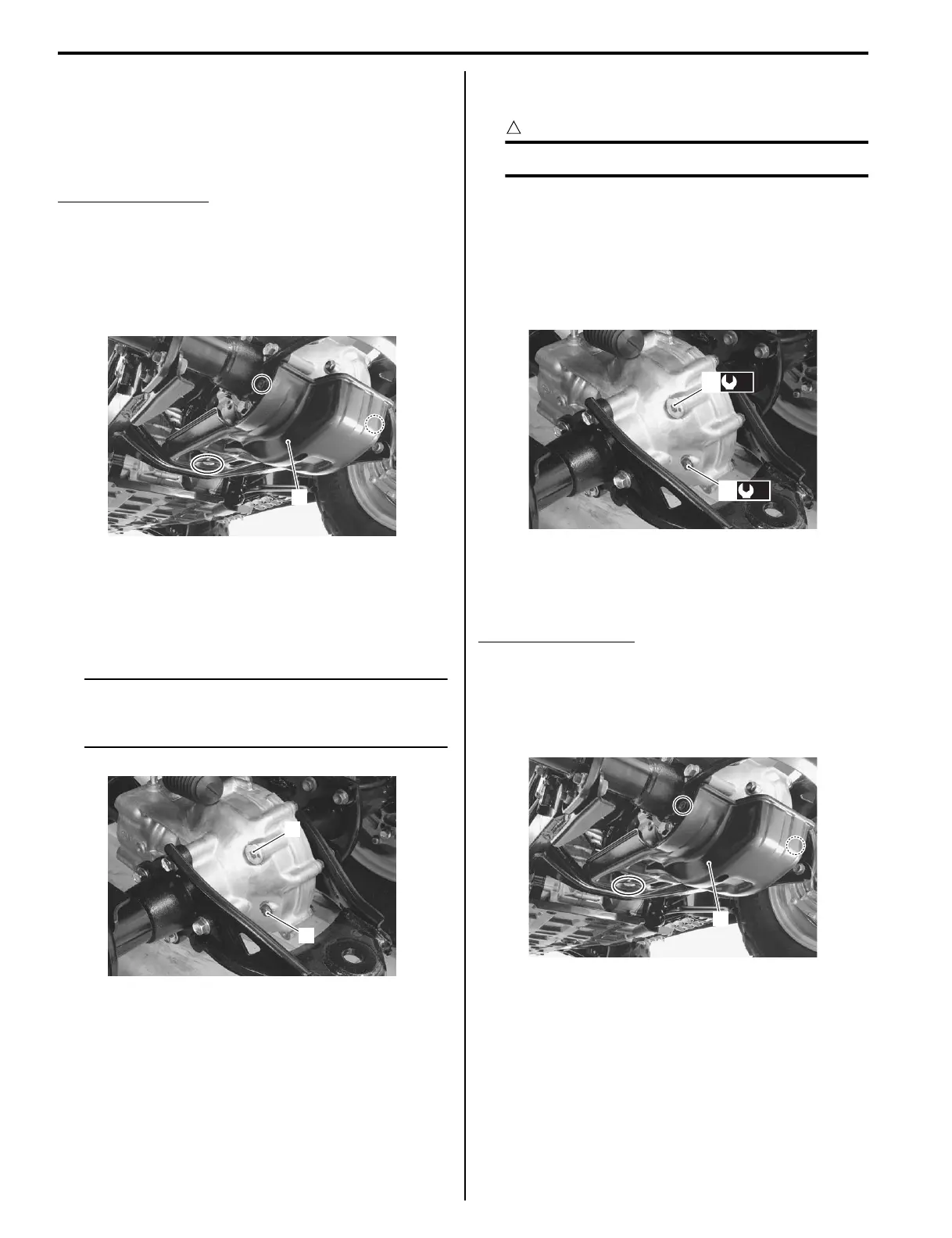

Final Gear Oil Inspection
B827H10206011
Inspect final gear oil
Every 2 000 km (1 200 miles, 6 months)
Inspect the final gear oil level in the following
procedures:
1) Place the vehicle on a level ground.
2) Remove the final gear case under cover (1).
3) Remove the oil filler plug (2) and oil level plug (3). If
the oil level is below the level hole, add new oil
through the filter hole until the oil flows out from the
level hole. Use hypoid gear oil SAE #90, API grade
GL-5.
NOTE
Use hypoid gear oil SAE #80, API grade GL-5,
if the vehicle is ridden where the ambient
temperature is below 0 °C (32°F).
4) Tighten the oil level plug (3) and oil filler plug (2) to
the specified torque.
CAUTION
!
Replace the gasket washers with new ones.
Tightening torque
Final gear oil level plug (a): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
Tightening torque
Final gear oil filler plug (b): 33 N·m (3.3 kgf-m,
24.0 lb-ft)
5) Install the final gear case under cover.
Final Gear Oil Replacement
B827H10206012
Replace final gear oil
Every 2 year
Replace the final gear oil in the following procedures:
1) Place the vehicle on a level ground.
2) Remove the final gear case under cover (1).
1
I827H1020049-01
3
2
I827H1020018-01
(b)
2
(a)
3
I827H1020019-01
1
I827H1020050-01
