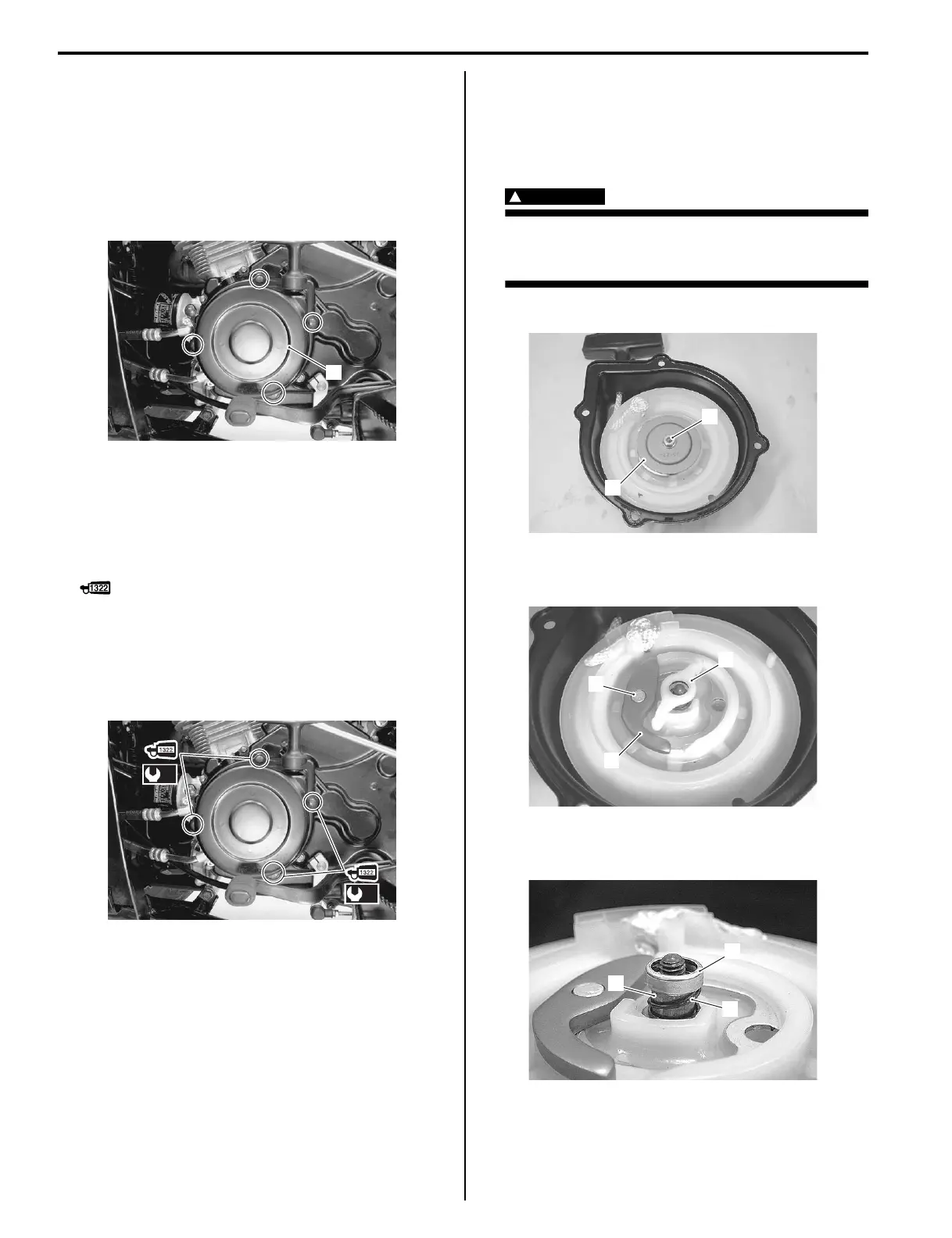

1I-13 Starting System:
Recoil Starter Assembly Removal and
Installation
B827H11906019
Removal
1) Remove the left side cover and left footrest
mudguard. Refer to “Exterior Parts Removal and
Installation in Section 9D (Page 9D-3)”.
2) Remove the recoil starter assembly (1).
Installation
Install the recoil starter assembly in the reverse order of
removal. Pay attention to the following point:
• Apply a small quantity of thread lock to the recoil
starter bolts and tighten them to the specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Recoil starter mounting bolt (a): 10 N·m (1.0 kgf-
m, 7.0 lb-ft)
Recoil Starter Disassembly and Assembly
B827H11906020
Refer to “Recoil Starter Assembly Removal and
Installation (Page 1I-13)”.
Disassembly
WARNING
!
Wear hand and eye protection when
removing the reel, since the spring may
quickly unwind and cause an injury.
1) Remove the nut (1) and friction plate (2).
2) Remove the ratchet guide (3), ratchet (4) and ratchet
pin (5).
3) Remove the spring cover (6), spring (7) and spacer
(8).
1
I827H11A0006-01
(a)
(a)
I827H1190028-01
1
2
I831G1190049-03
3
5
4
I831G1190050-02
6
7
8
I831G1190051-02
