Suzuki LT-A400F Service Manual

Brake Control System and Diagnosis: 4A-14
Tightening Torque Specifications
B827H14107002
NOTE
The specified tightening torque is also described in the following.
“Front Brake Hose Routing Diagram (Page 4A-1)”
“Front Brake Master Cylinder Components (Page 4A-8)”
“Rear Brake Pedal Construction (Page 4A-12)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)”.

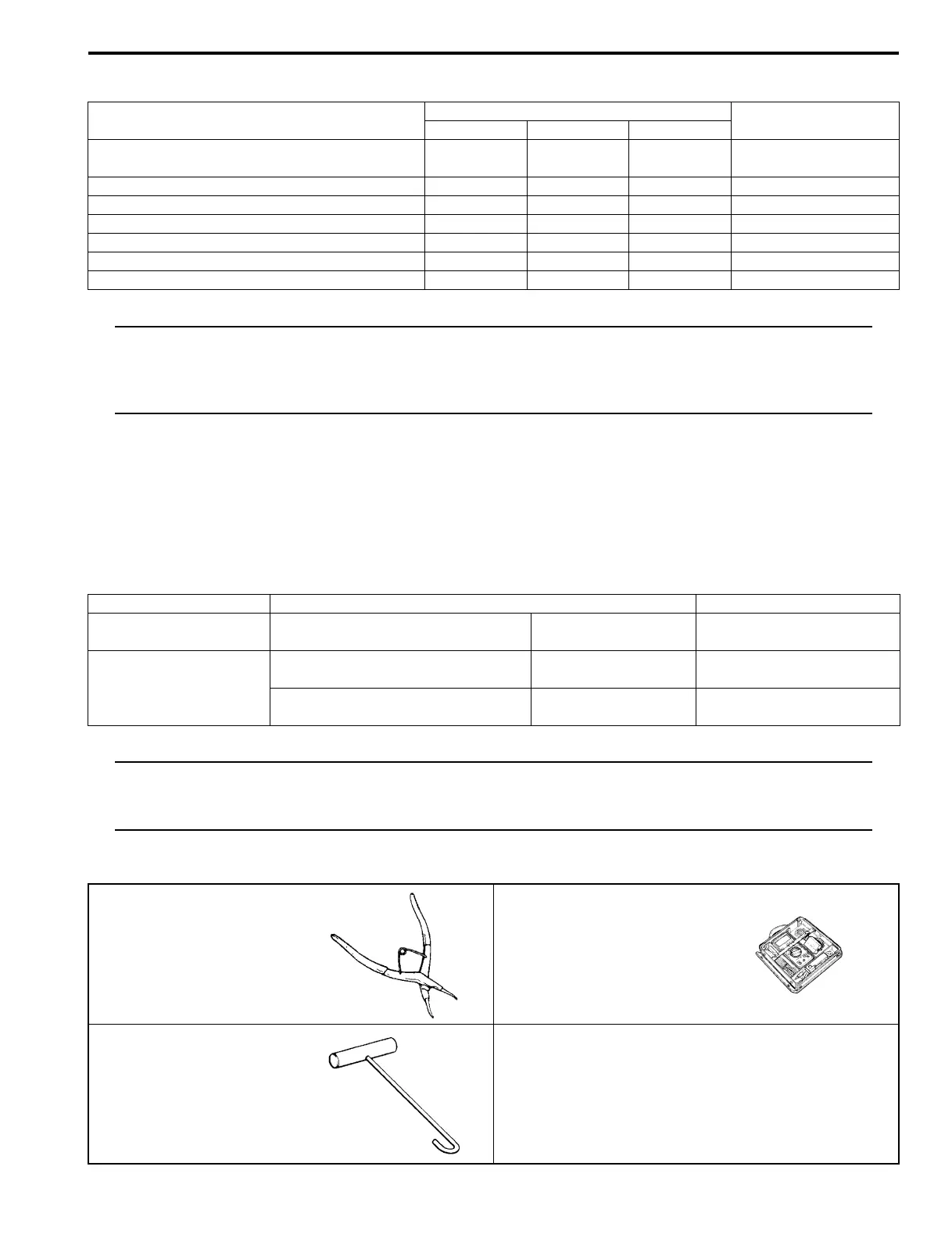

Special Tools and Equipment
Recommended Service Material
B827H14108001
NOTE
Required service material is also described in the following.
“Front Brake Master Cylinder Components (Page 4A-8)”
“Rear Brake Pedal Construction (Page 4A-12)”
Special Tool
B827H14108002
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Front brake air bleeder valve
60.6 4.5
)(Page 4A-6) /
)(Page 4A-7)
Brake pipe flare nut 16 1.6 11.5 )(Page 4A-7)
Master cylinder holder bolt (Upper and Lower) 10 1.0 7.0 )(Page 4A-9)
Brake hose union bolt 23 2.3 16.5 )(Page 4A-9)
Brake lever pivot bolt 6 0.6 4.5 )(Page 4A-11)
Brake lever pivot bolt lock-nut 6 0.6 4.5 )(Page 4A-11)
Rear brake pedal pivot nut 12 1.2 8.5 )(Page 4A-13)
Material SUZUKI recommended product or Specification Note
Brake fluid DOT 4 — )(Page 4A-6) / )(Page 4A-
10)
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 4A-13)
SUZUKI Silicone Grease or
equivalent
P/No.: 99000–25100 )(Page 4A-11)
09900–06108 09900–25008
Snap ring pliers Multi-circuit tester set
)(Page 4A-10) )(Page 4A-4) / )(Page 4A-
4) / )(Page 4A-5)
09920–20310
Clutch spring hook
)(Page 4A-12) /
)(Page 4A-13)
