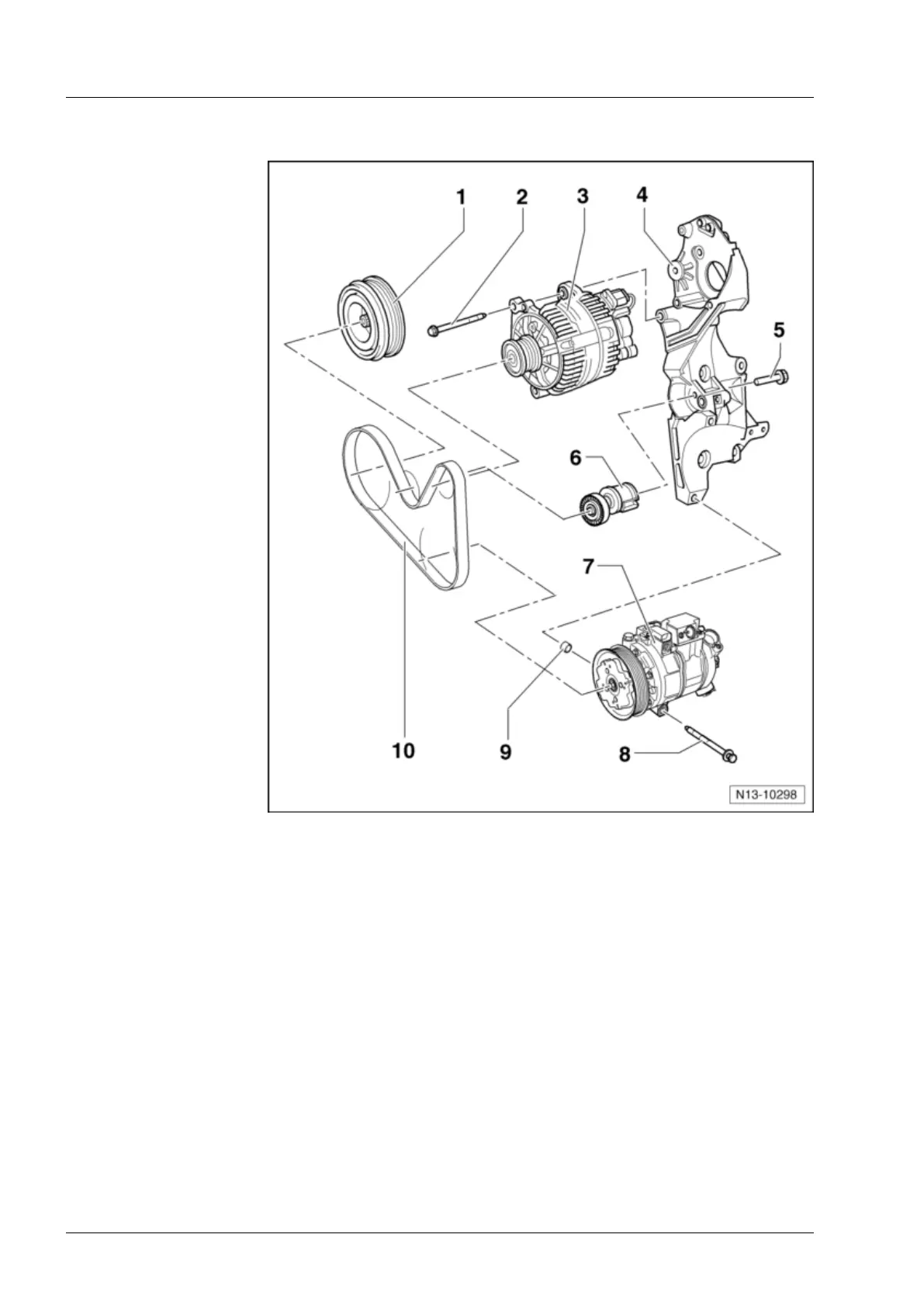

1.1 Assembly overview - poly V-belt drive, with air conditioner compressor
1 - Belt pulley and vibra-
tion damper
q Can only be instal-
led in one position,
holes are offset.
2 - 23 Nm
3 - Alternator -C-
q Assembly overview
4 - Ancillary bracket
q For alternator and
air conditioner com-
pressor
q Removing and in-
stalling.
5 - 20 Nm +
1
/
2
turn (180°)
further
q
Renew
q
Do not additionally
oil or grease the
threads and shoul-
der.
q
Turning further can
be done in several
stages.
6 - Poly V-belt tensioning
element
q
Swing to slacken
poly V-belt
q
Removing and in-
stalling tensioning
element
7 - Air conditioner com-
pressor
8 - 25 Nm
9 - Dowel sleeve
10 - Poly V-belt
q
Mark direction of rotation before removing.
q
Do not kink
q
Removing and installing.
q
Check for wear
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
140
Repair Group 13 - Crankshaft group
