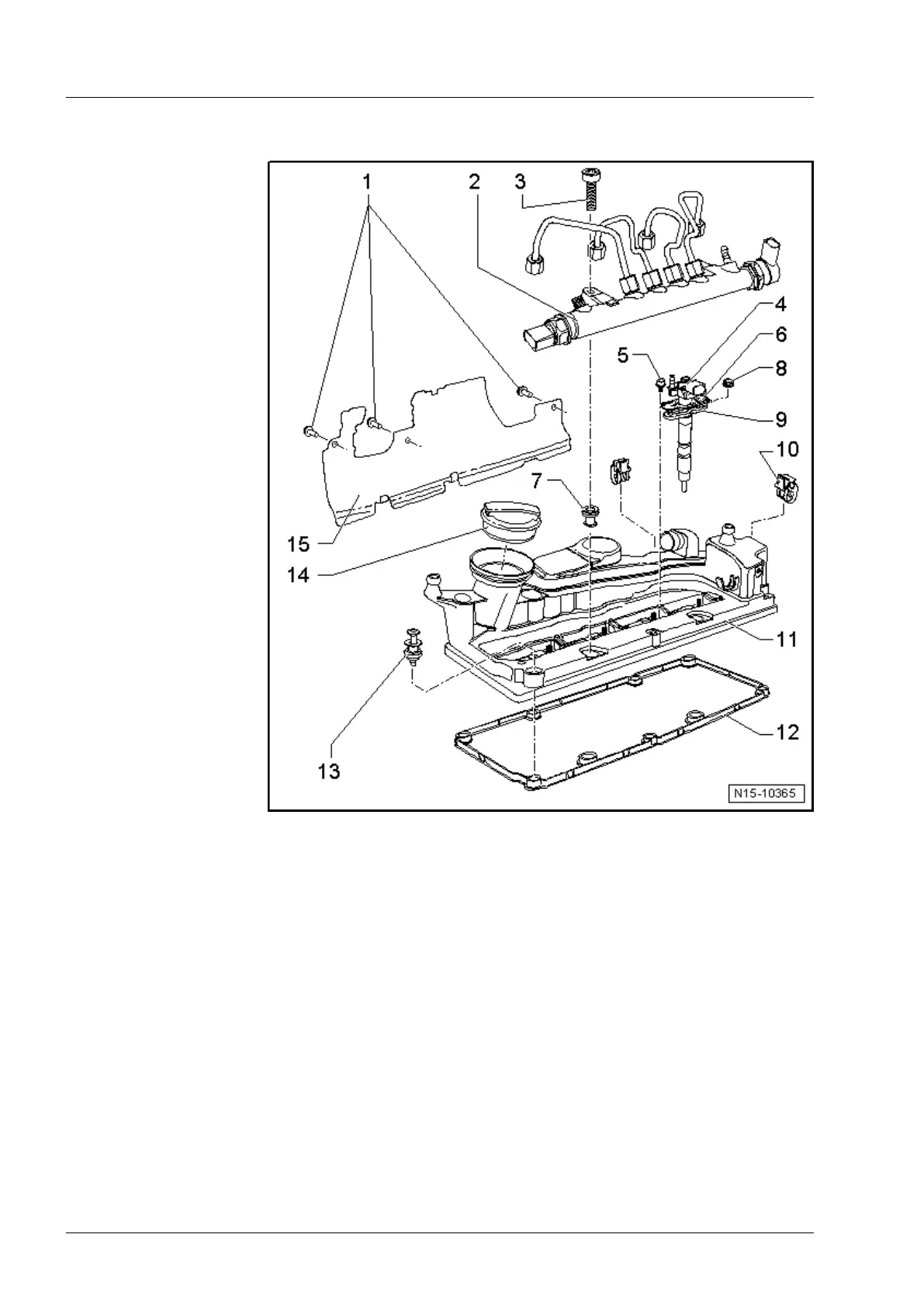

1.3 Assembly overview - cylinder head cover, engine codes CJDA, CJDD
1 - 5 Nm
2 - Fuel rail
q With injection pipes.
q Do not attempt to
bend injector pipes
to a different shape.
3 - 22 Nm
4 - Injector (piezo injec-
tors)
q Removing and in-
stalling.
q With union for fuel
return line
q The fuel return lines
must not be disman-
tled.
q Removing
⇒ Fig. on page 195
q
Check fasteners
⇒ Fig. on page 195
q
Attach
⇒ Fig. on page 195
q Lock
⇒ Fig. on page 196
5 - 5 Nm
6 - Injector cover
7 - Bush
q
For securing fuel rail
q
Renew if damaged
8 - 10 Nm
9 - Clamping piece
q
Note installation position
10 - Cable guide
11 - Cylinder head cover
q
Tightening sequence ⇒ Fig. on page 196.
q
Removing and installing ⇒ Page 196
12 - Gasket
q
Renew if damaged or leaking
13 - 10 Nm
q
Tightening sequence ⇒ Fig. on page 196.
14 - Cap
15 - Heat shield
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
194
Repair Group 15 - Cylinder head, valve gear
