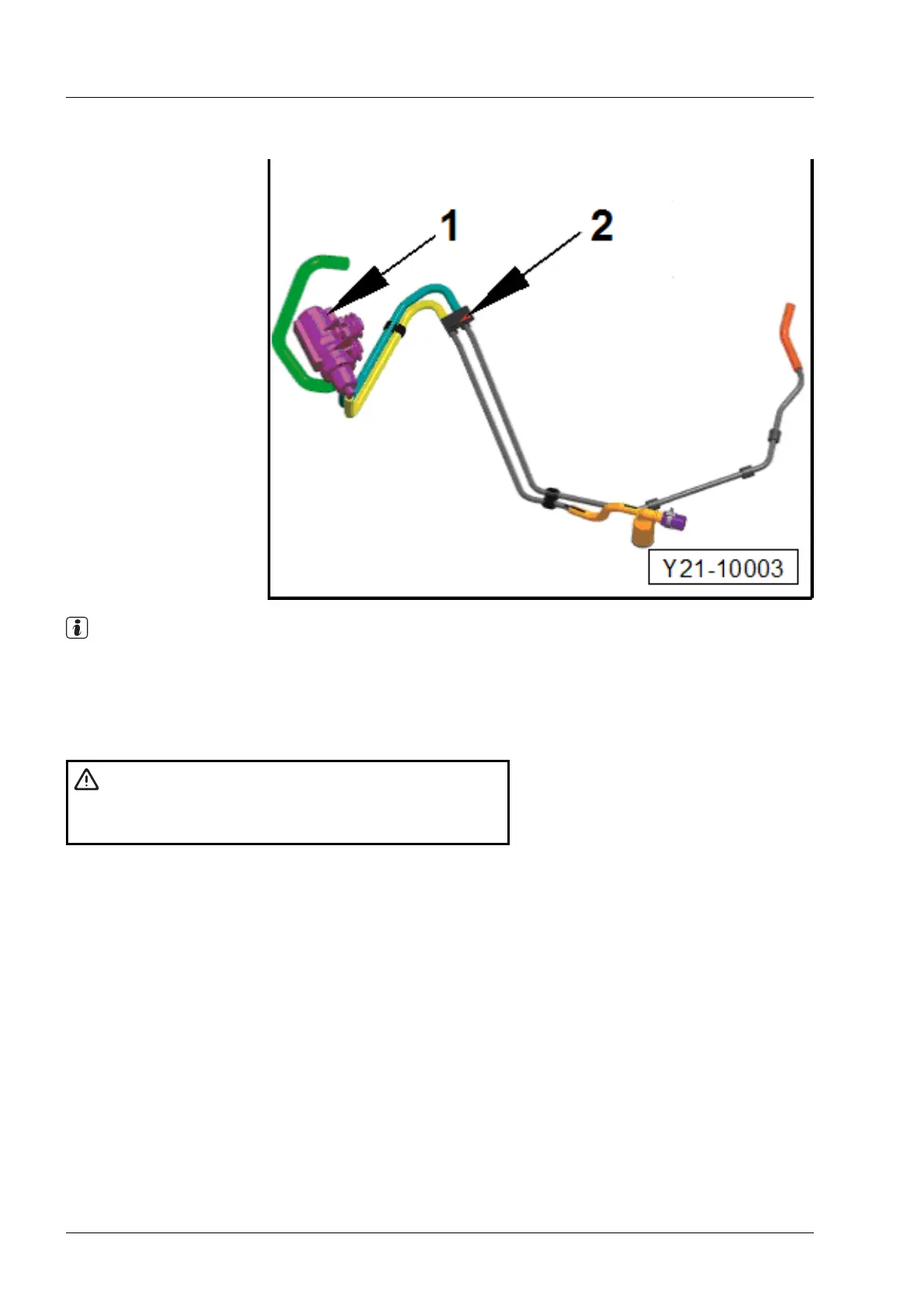

2.4.3 Checking vacuum hoses
1 - Charge pressure con-
trol solenoid valve -
N75-
2 - Retaining clip for vac-
uum line on retainer
Note
The vacuum line is prefabricated.
3 Checking components and func-
tions
WARNING
Adhere to the general safety regulations and the notes on
repair work on the engine! ⇒ Page 1
The described component checks and functional checks are ap-
plicable for the series components and the current flow dia-
grams as of page ⇒ Page 486, current flow diagrams.
If components and electric circuits differ, observe the notes of
the respective industrial engine customer.
Check charge pressure control solenoid valve -N75-
⇒ Page 341.
Check charge pressure sender -G31- ⇒ Page 343.
Check position sender for charge pressure positioner -G581-
⇒ Page 345.
Check exhaust gas temperature sender 1 -G235- (exhaust gas
temperature sender ahead of turbocharger) ⇒ Page 347.
