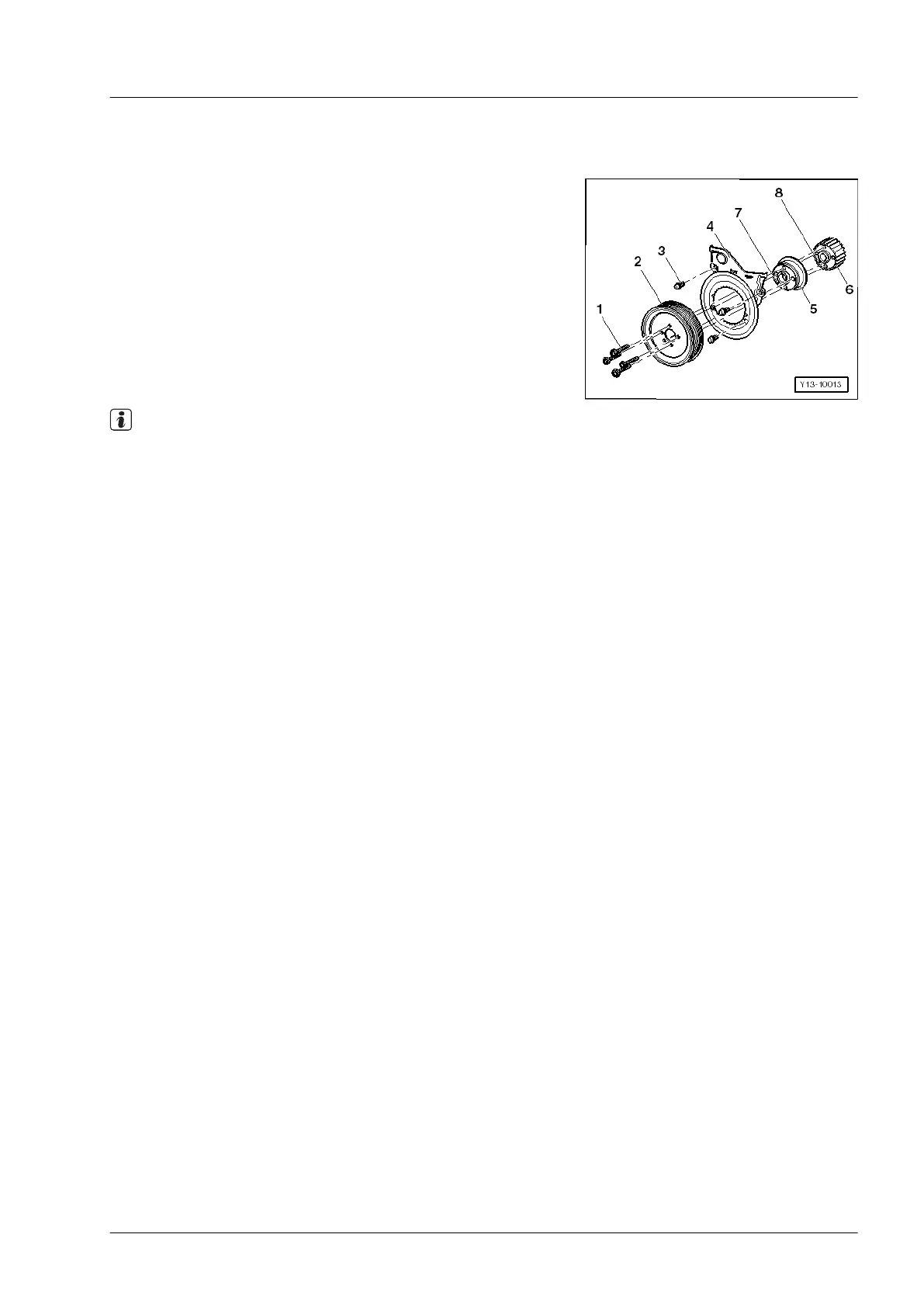

1.15 Removing and installing crankshaft
protective cover
Removing
– Loosen bolts -1- on vibration damper -2-, and remove vibra-
tion damper.
– Loosen bolts -3- on lower part of toothed belt guard -4-, and
remove lower part of toothed belt guard.
– Remove hub (guide) -5- from protective cover.
Installing
– Install in reverse order. In the process, note the following:
Note
The protective cover can only be installed in one position, holes
are offset.
â—† Push locking lug -7- of guide -5- precisely onto respective
locking peg -8- on toothed belt pulley -6-.
â—† Fit lower part of toothed belt guard -4-, and renew bolts -3-.
â—† Tighten bolts -3- to specified torque of 10 Nm.
â—† Fit vibration damper -2-, and renew bolts -1-.
â—† Counterhold on central bolt of crankshaft using a multi-point
socket bit (standard tool), and tighten bolts -1- to 20 Nm +
1
/
2
turn (180°) further.
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
3
1 Dismantling and assembling engine
155
