2.3 Renewing valve stem seals

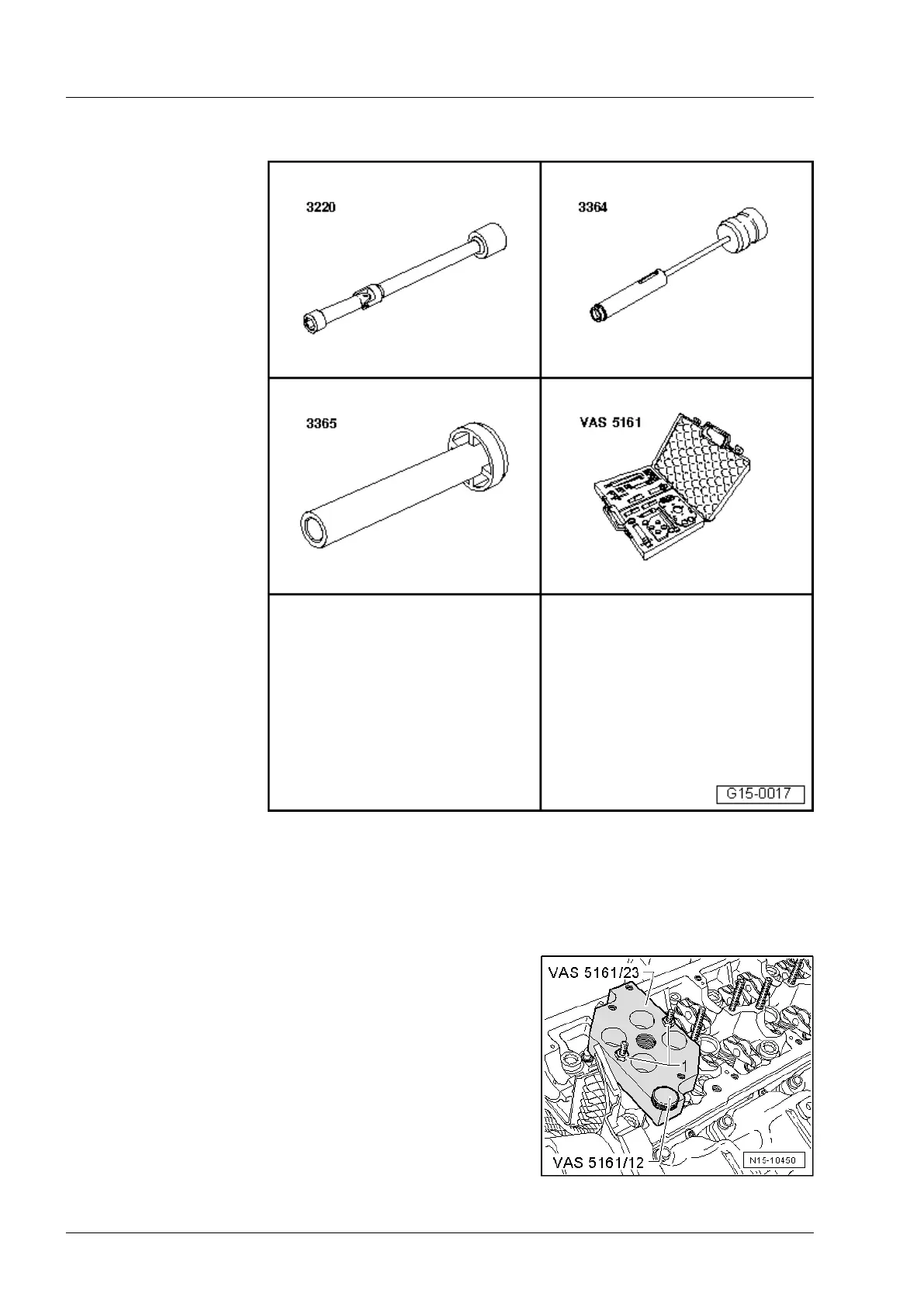

Special tools and
workshop equipment
required
â—† 10 mm jointed spanner
-3220-
â—† Valve stem seal puller
-3364-
â—† Valve stem seal fitting
tool -3365-
â—† Removal and installa-
tion device for valve
cotters -VAS 5161- with
guide plate
-VAS 5161/23- and
knurled spacer ring
-VAS 5161/23-1-
Procedure
– Remove all glow plugs using U/J extension and socket
-3220- ⇒ Page 536.
– Remove camshafts ⇒ Page 233.
– Fit guide plate -VAS 5161/23- onto cylinder head.
– Secure guide plate on intake manifold side with knurled
screw -VAS 5161/12- and tighten it hand-tight to studs using
M6 collarless nuts -1-.
– Screw sealing pin -VAS 5161/10- into guide plate.
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
230
Repair Group 15 - Cylinder head, valve gear
