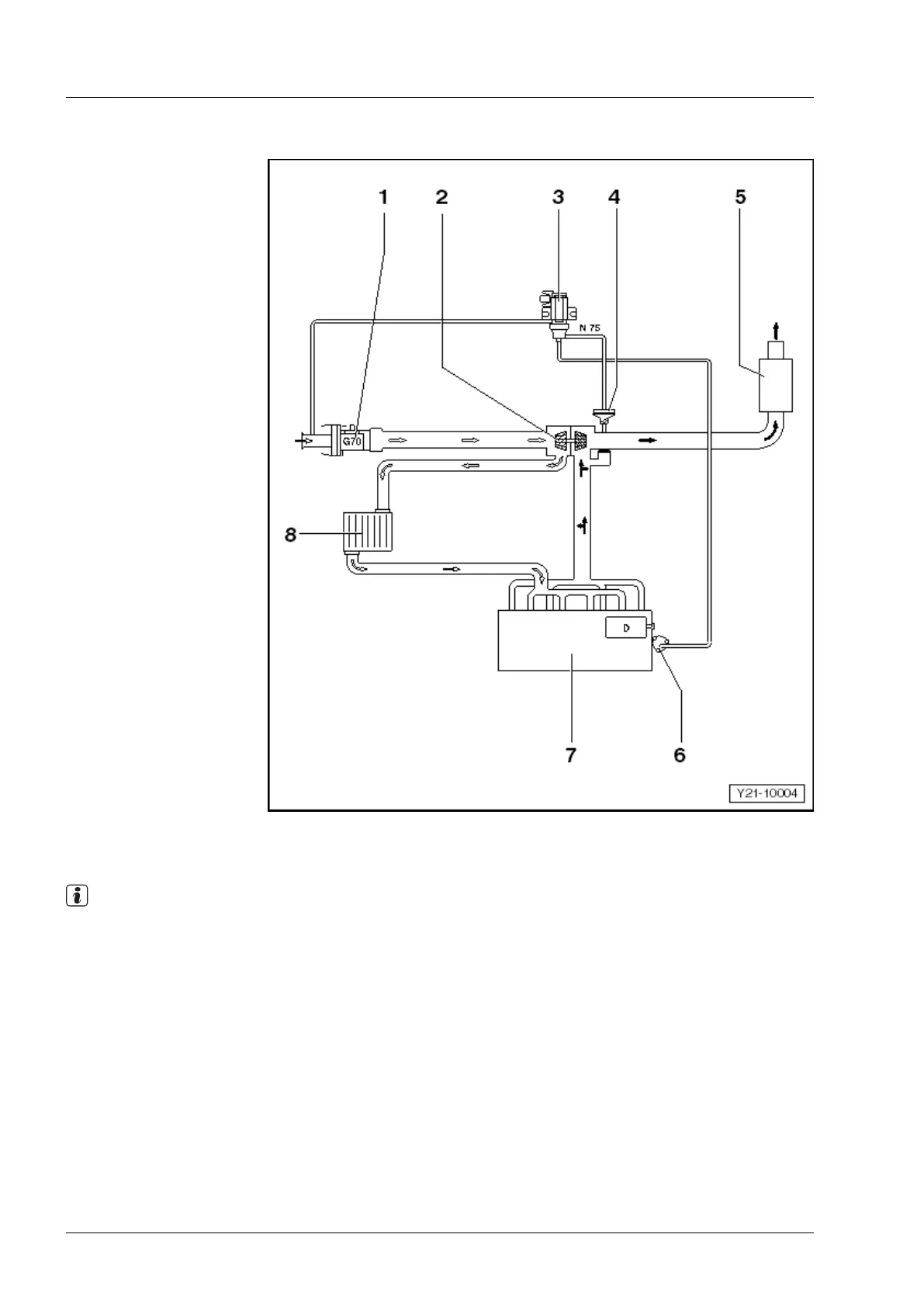

2.3.2 Engine codes CPYA, CPYB, CPYC, CPYD, CPYE

1 - Air mass meter -G70-

2 - Turbocharger

q With vacuum unit

q With position sender

for charge pressure

positioner -G581-

3 - Charge pressure con-

trol solenoid valve

-N75-

4 - Vacuum unit

5 - Exhaust system

6 - Vacuum pump

7 - Cylinder head cover

8 - Charge air cooler

2.3.3 Intake system, installation position 0°

Note

The proper position/alignment of the air mass meter is critical for the proper operation of the engine and the

diesel particulate filter. The position of the connector of the air mass meter may be used as a reference ("fac-

Industriemotoren - Industrial Engines 2009 ▶

Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015

336

Repair Group 21 - Turbocharging/supercharging
