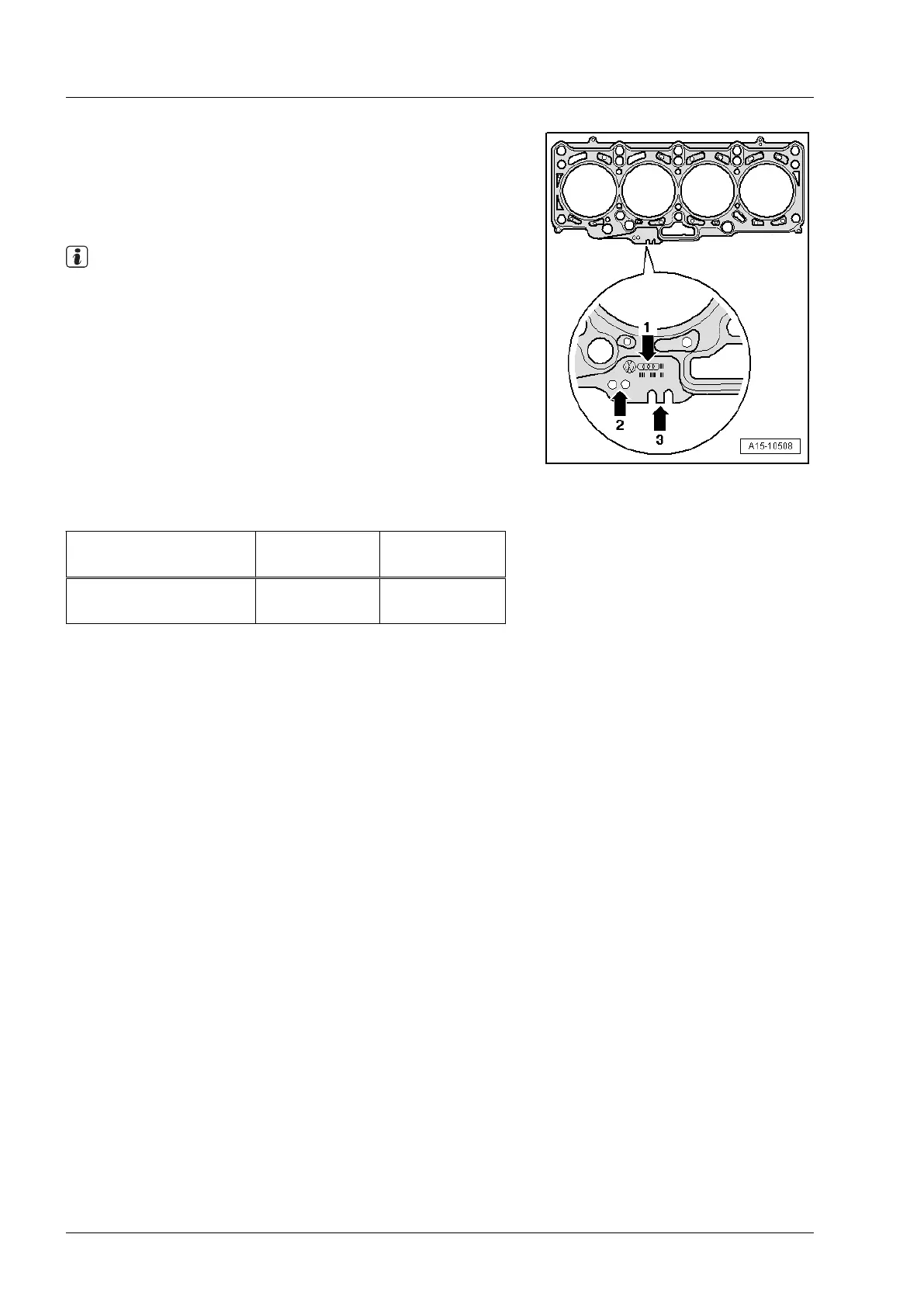

Cylinder head gasket identification
â—† Part number = arrow 1
â—† Holes = arrow 2
â—† Production control code = arrow 3 (can be disregarded)
Note
â—† Different thicknesses of cylinder head gasket are fitted de-
pending on the piston projection. When the seal is renewed,
ensure that the designation matches.
â—† Piston projection at TDC must be determined when installing
new pistons or a short engine ⇒ Page 187.
4.5 Piston and cylinder dimensions
Honing dimension Piston diame-
ter
Cylinder bore
diameter
Basic dimension m
m
80.96 81.01
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
188
Repair Group 13 - Crankshaft group
