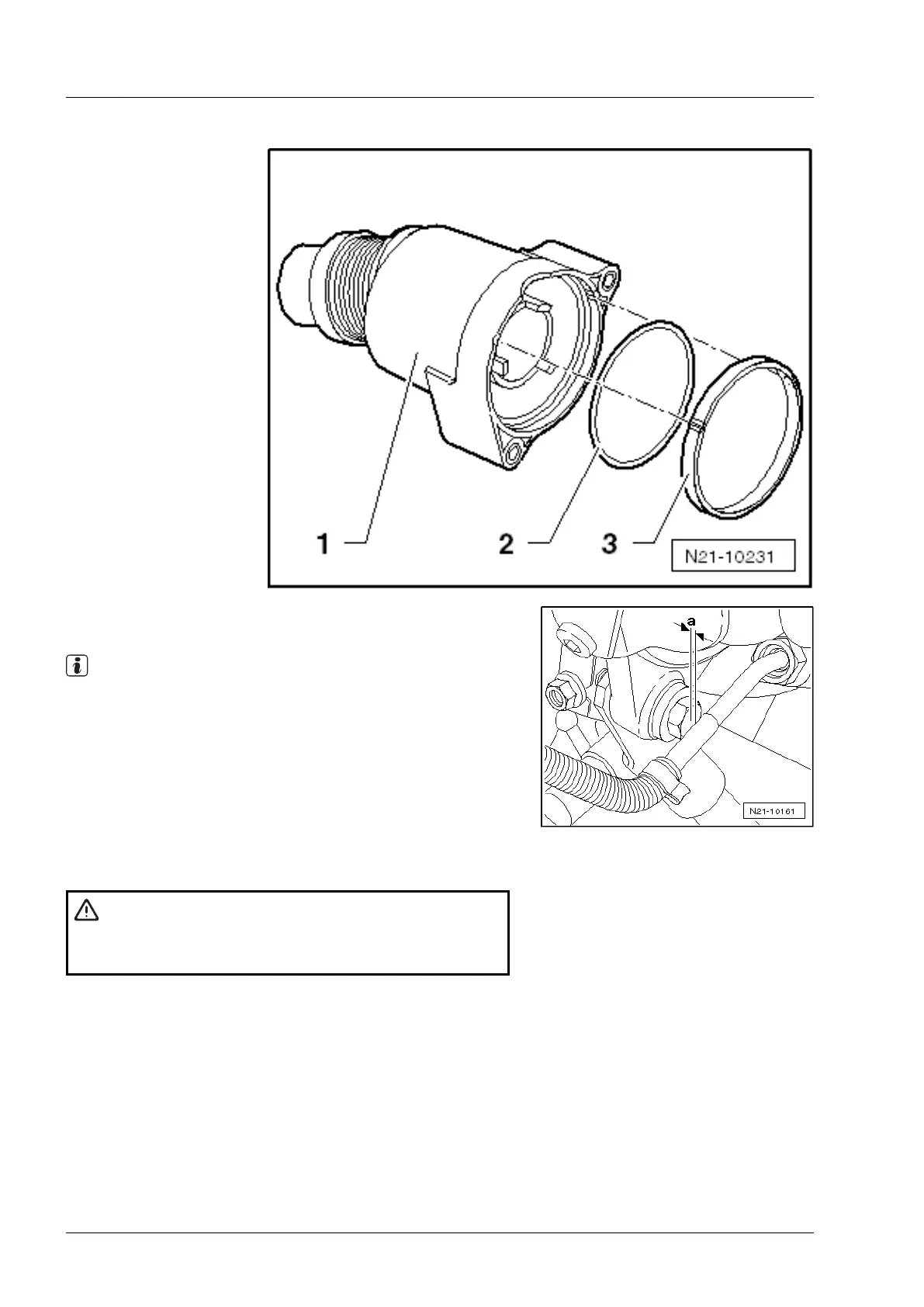

Installation position of O-ring and seals in pulsation damper
1 - Damper
q With grooves.
2 - O-ring
3 - Seal
q With spring.
Installation position of exhaust gas temperature sender
with angled cable guide
Note
When installing the exhaust gas temperature sender with an-
gled cable guide, adhere to dimension -a- of 3 … 5 mm from
the threaded connection of the turbocharger support.
1.4 Removing and installing turbocharger
WARNING
Adhere to the general safety regulations and the notes on
repair work on the engine! ⇒ Page 1
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
326
Repair Group 21 - Turbocharging/supercharging
