2.5.2 Engines as of 09.09
Special tools and
workshop equipment
required

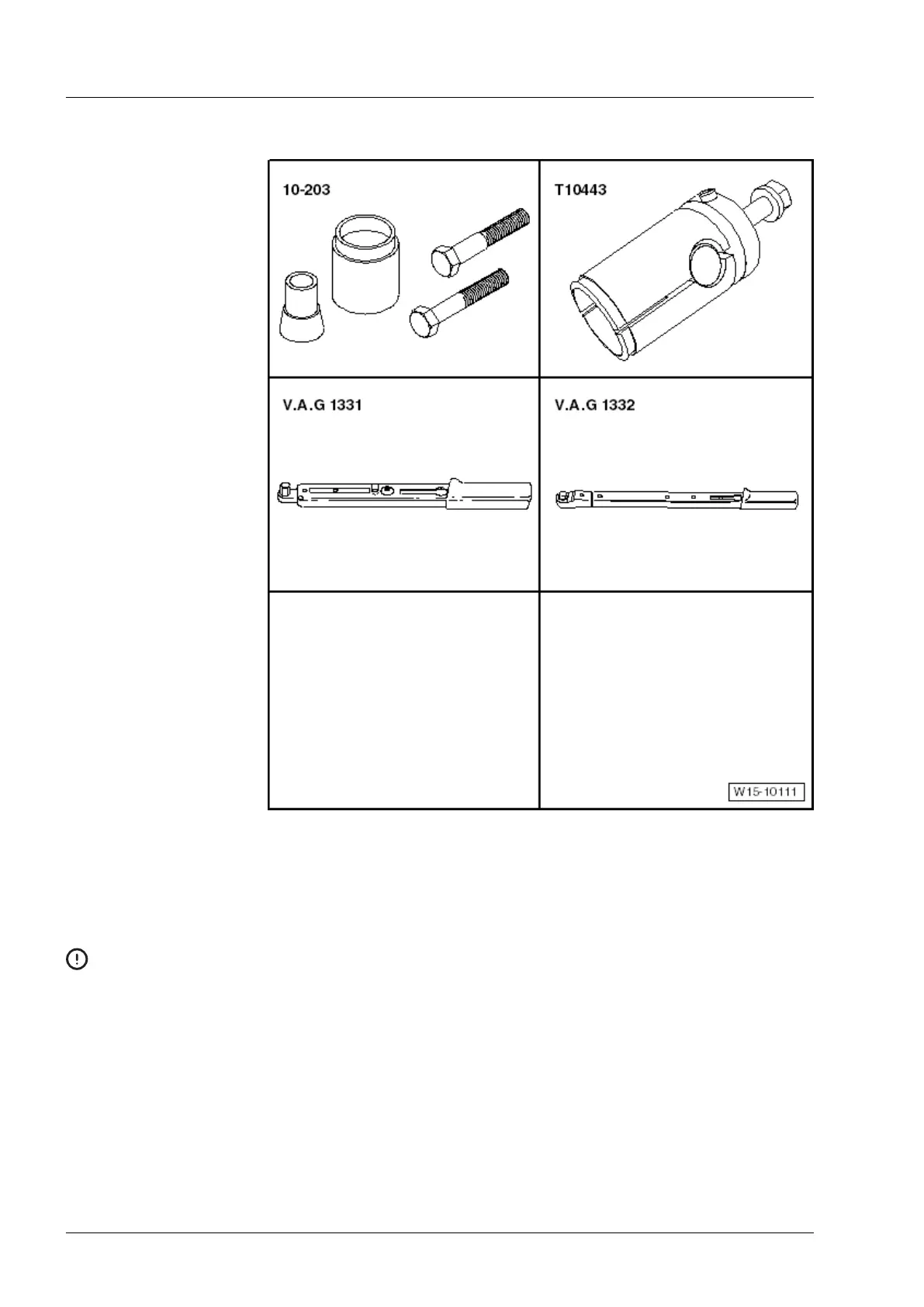

◆ Fitting tool
-V.A.G 10-203-
◆ Oil seal extractor
-T10443-
◆ Torque wrench
-V.A.G 1331/-
◆ Torque wrench
-V.A.G 1332/-
◆ Bolt M12 x 1.5 x 75
Removing
– Remove toothed belt from camshaft and high-pressure
pump; Removing, installing and tensioning toothed belt.
– Remove camshaft toothed belt pulley and hub ⇒ Page 233,
Removing and installing camshaft.
Caution
If turned back too far, the internal pressure plate moves off
the pressure screw. In this case the pressure plate must be
pushed back onto the pressure screw.
– “Gently” turn back the pressure screw of the seal extractor
until you feel a slight resistance.
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
242
Repair Group 15 - Cylinder head, valve gear
