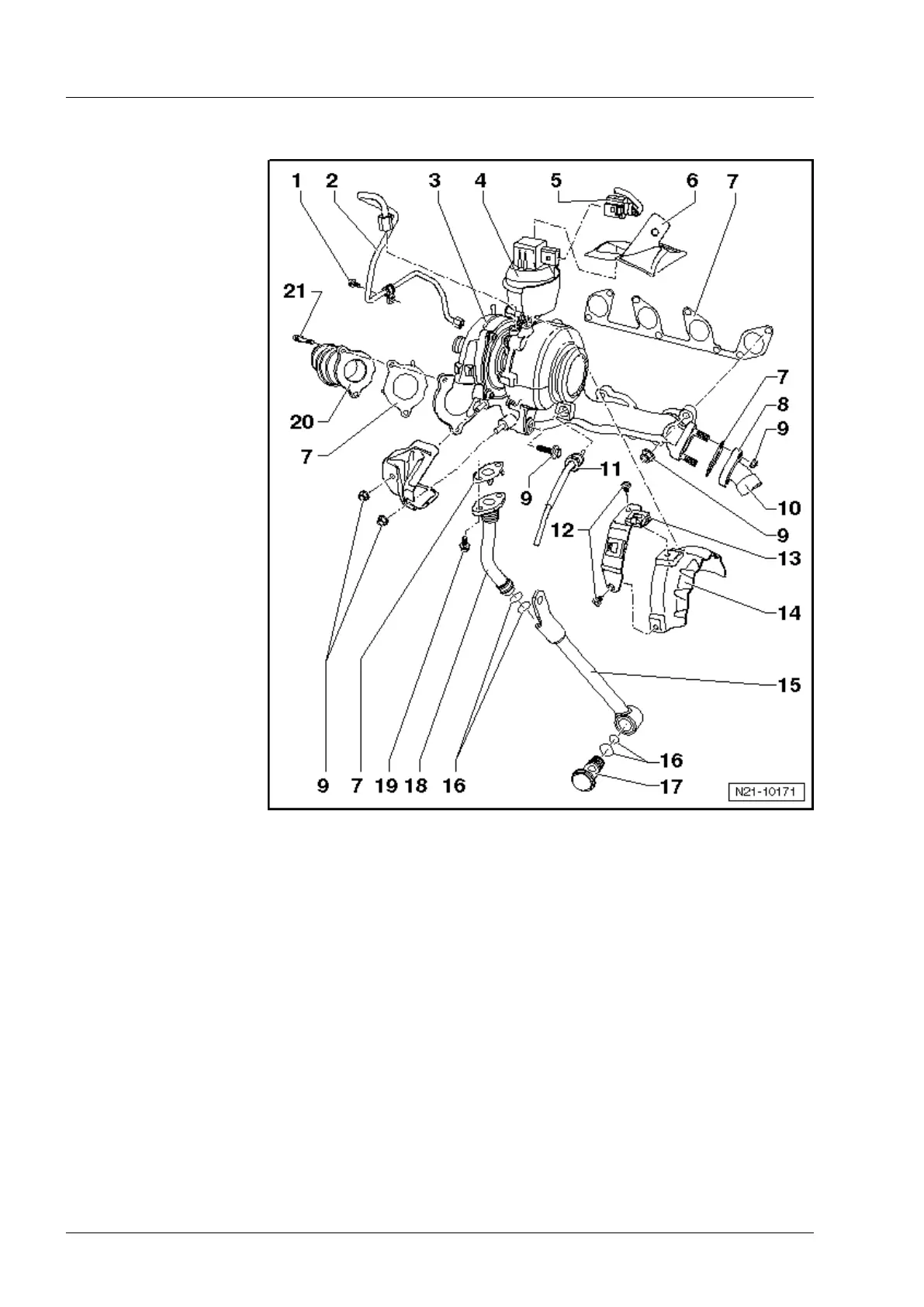

1.3.1 Engine codes CJDA, CJDD
1 - 10 Nm
2 - Oil supply line
q Before installing oil
supply line, ensure
that it is not
blocked.
q Before installing, fill
turbocharger with
engine oil through
oil supply line con-
nection.
3 - Turbocharger
q Can only be re-
newed together with
exhaust manifold
q Removing and in-
stalling ⇒ Page 326
4 - Vacuum unit
q
With position sender
for charge pressure
positioner -G581-
⇒ Page 449.
q
Check position
sender for charge
pressure positioner
-G581- ⇒ Page 449
5 - Connector
q To position sender
for charge pressure
positioner -G581-
⇒ Page 449.
6 - Heat protection
q
Renew if damaged
7 - Gasket
q
Renew
8 - Connecting pipe
q
To exhaust gas recirculation cooler.
9 - 20 Nm
10 - Flexible joint
q
Do not bend or stretch.
11 - Exhaust gas temperature sender 1 -G235-
q
Exhaust gas temperature sender ahead of turbocharger
q
45 Nm
q
Coat thread of sender with high-temperature paste G 052 112 A3.
q
Note installation position ⇒ Fig. on page 323
q
Check ⇒ Page 347
12 - 10 Nm
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
322
Repair Group 21 - Turbocharging/supercharging
