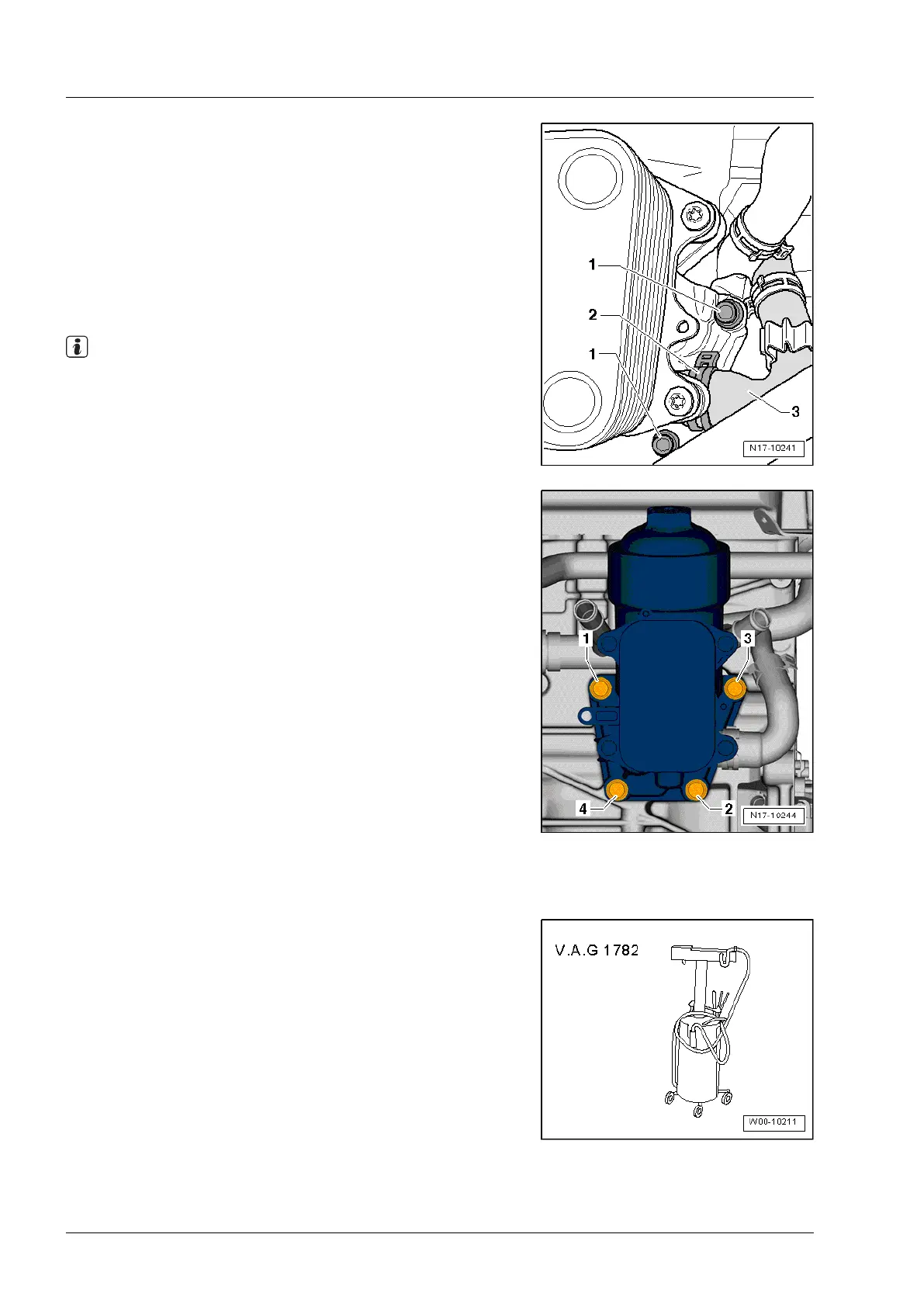

– Remove coolant hose -3-. To do this, release hose clip -2-.
– Place used oil collection and extraction unit -V.A.G 1782- un-
der engine.
– Unscrew bolts -1- and remove oil filter bracket with engine
oil cooler.
– Clean soiled places thoroughly.
Installing
Install in reverse order. In the process, note the following:
Note
â—† Renew gaskets, seals and O-rings.
â—† Hose unions and air intake pipes and hoses must be free of
oil and grease before installation.
â—† Secure all hose connections with hose clips which conform
to production standard.
– Bolt on oil filter bracket hand-tight in the sequence -1 … 4-.
– Tighten bolts in the sequence -1 … 4-. Specified torque: 14
Nm +
1
/
2
turn (180°) further.
– Bolt on dipstick guide tube.
– Install oil filter element, replenish engine oil and check oil
level.
– Replenish coolant in cooling system, or change coolant if en-
gine oil cooler has been renewed.
Specified torques ⇒ Page 266.
3.2.3 Removing and installing oil cooler
Special tools and workshop equipment required
â—† Used oil collection and extraction unit -V.A.G 1782-
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
270
Repair Group 17 - Lubrication
