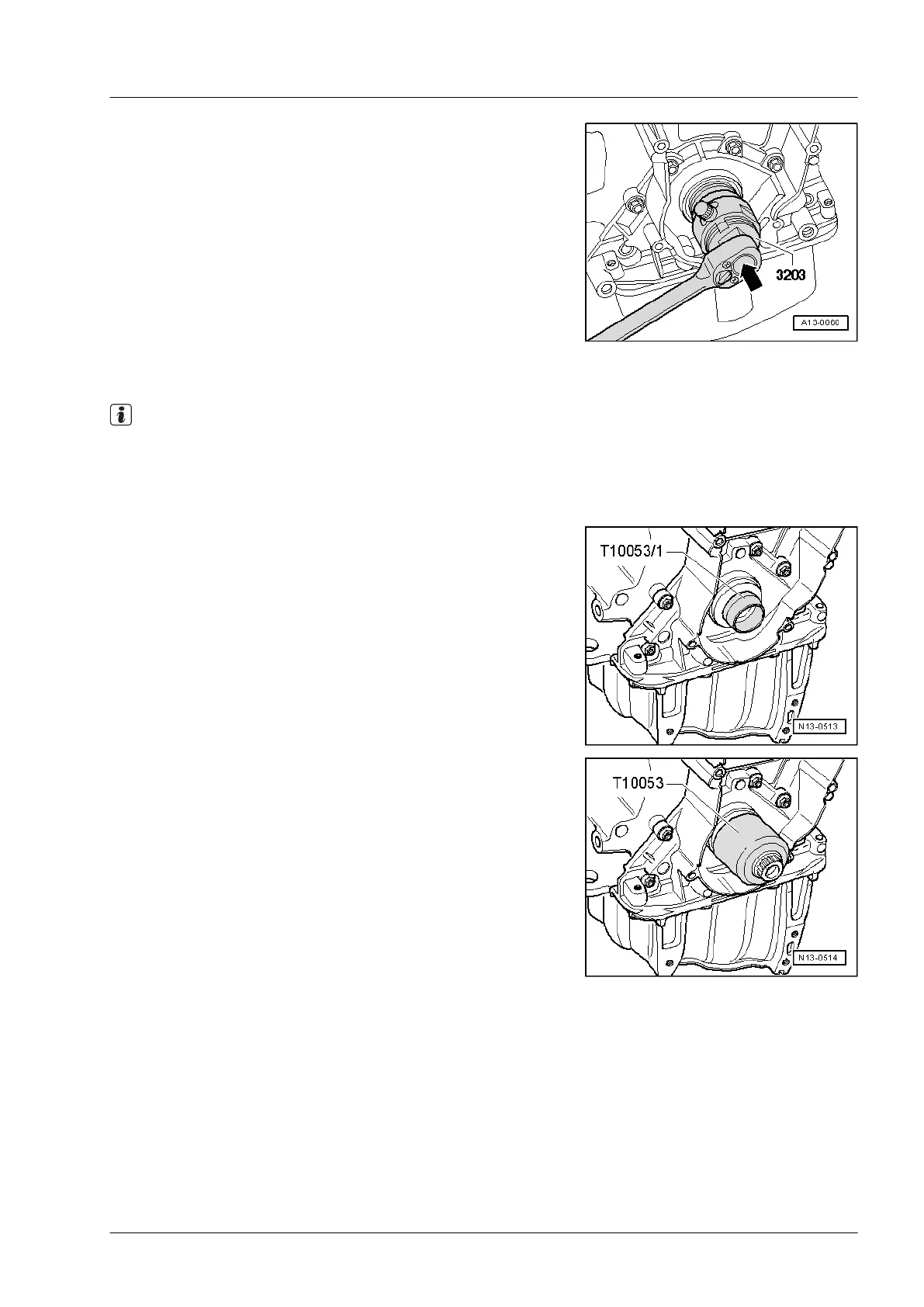

– Using great pressure, screw oil seal extractor as far as pos-
sible into oil seal.
– Loosen knurled screw and turn inner part against crankshaft
until oil seal is pulled out.
2.2.2 Installing
Note
The oil seal sealing lip must not be additionally oiled or
greased.
– Remove oil residue from crankshaft journal using clean
cloth.
– Place guide sleeve -T10053/1- onto crankshaft journal.
– Slide oil seal over guide sleeve onto crankshaft journal.
– Press oil seal in to stop using assembly tool -T10053- and
central bolt.
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
3
2 Removing and installing sealing flange and flywheel
163
