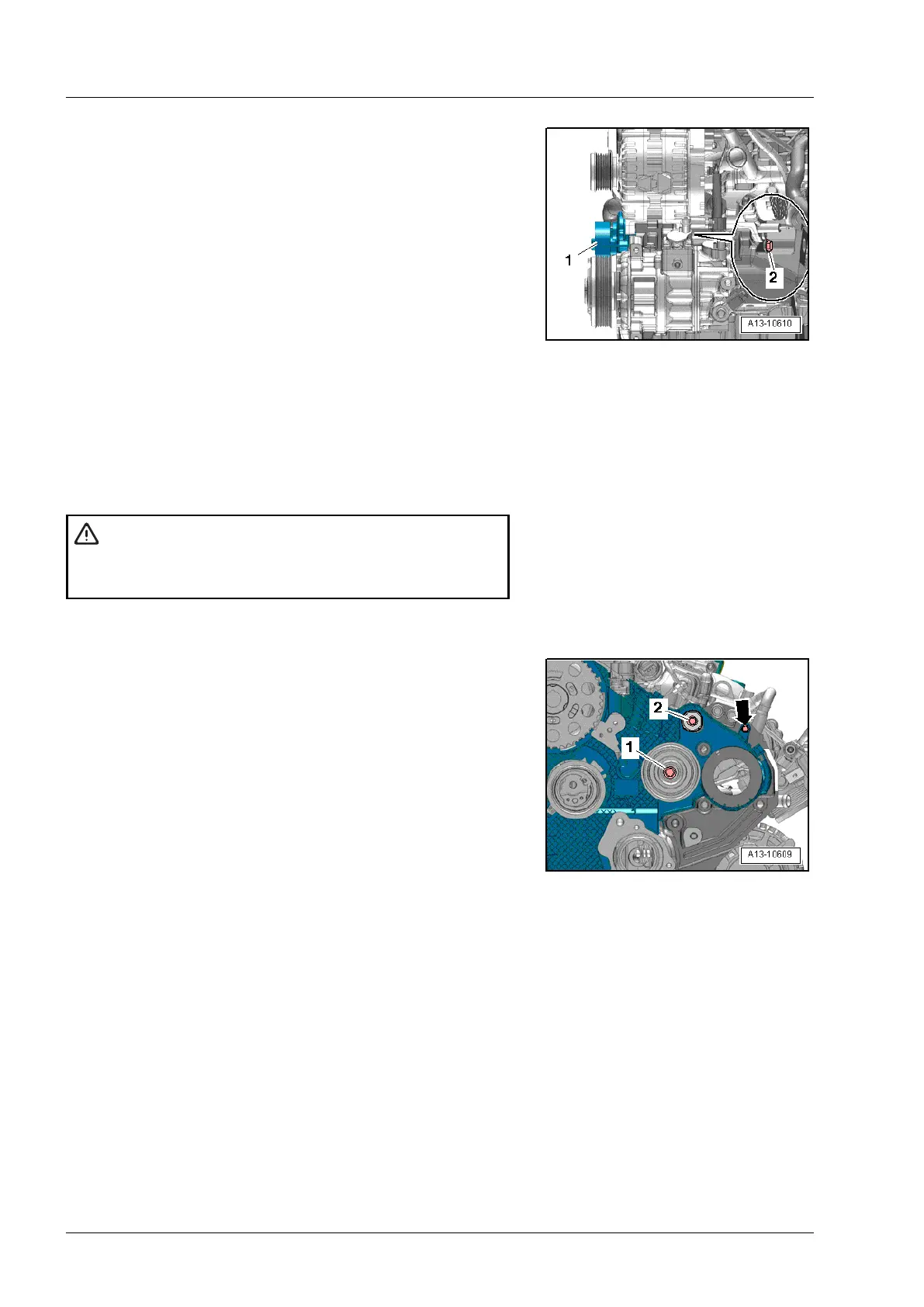

– Unscrew securing bolt -2- and remove poly V-belt tensioner
-1-.
Installing
Install in reverse order. In the process, note the following:
◆ Renew bolt for tensioning element
◆ Specified torques ⇒ Page 140.
◆ Install poly V-belt ⇒ Page 141.
1.6 Removing and installing ancillary
bracket
Removing
– Remove high-pressure pump ⇒ Page 380.
– Remove alternator ⇒ Page 471.
WARNING
The air conditioner refrigerant circuit must not be
opened.
– If fitted, unbolt air conditioner compressor from ancillary
bracket, and tie it up free of stress at a suitable location.
– Unbolt idler pulleys -1- and -2-, and remove bolt of toothed
belt guard -arrow-.
Engine codes CPYA, CPYB, CPYC, CPYD, CPYE
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
144
Repair Group 13 - Crankshaft group
