Removing and installing oil filter bracket together with oil cooler
⇒ Page 262.
Checking oil pressure and oil pressure switch -F1- ⇒ Page 264
Note
Observe general notes on the lubrication system.

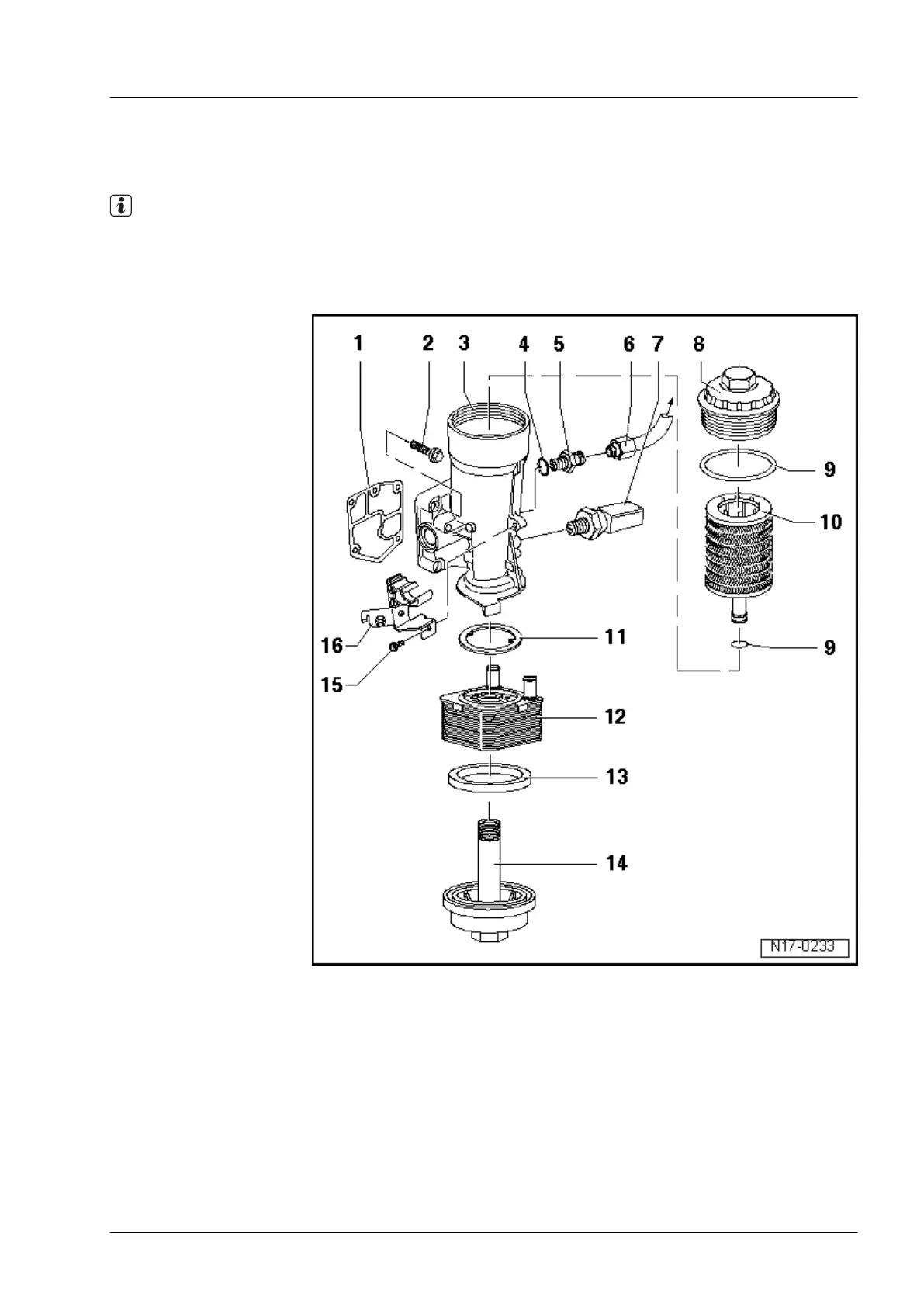

3.1.1 Assembly overview - oil filter bracket and oil cooler
1 - Gasket
q
Renew
2 - 15 Nm +
1
/
4
turn (90°)
further
q
Renew
q
First fit upper left
and lower right bolts
and then tighten all
four bolts diagonal-
ly.
3 - Oil filter bracket
q Removing and in-
stalling ⇒ Page 262
4 - Seal
q
Renew
5 - Connecting piece,
30 Nm
6 - Oil supply line, 22 Nm
q
To turbocharger.
7 - Oil pressure switch
-F1-, 22 Nm
q
0.7 bar switch:
brown.
q
If seal is leaking, nip
open and renew.
q
Checking
⇒ Page 264, check-
ing oil pressure and
oil pressure switch
8 -
Cap, 25 Nm
q
Loosen and tighten
with socket AF 36 mm -T10125-.
9 -
O-ring
q
Renew
10 -
Oil filter element
q
Observe change intervals.
q
Ensure "Top" is uppermost when fitting
11 -
Seal
q
Renew
q
Lubricate before installing.
Industriemotoren - Industrial Engines 2009
▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
3
3 Oil filter bracket, oil cooler and oil pressure switch
261
