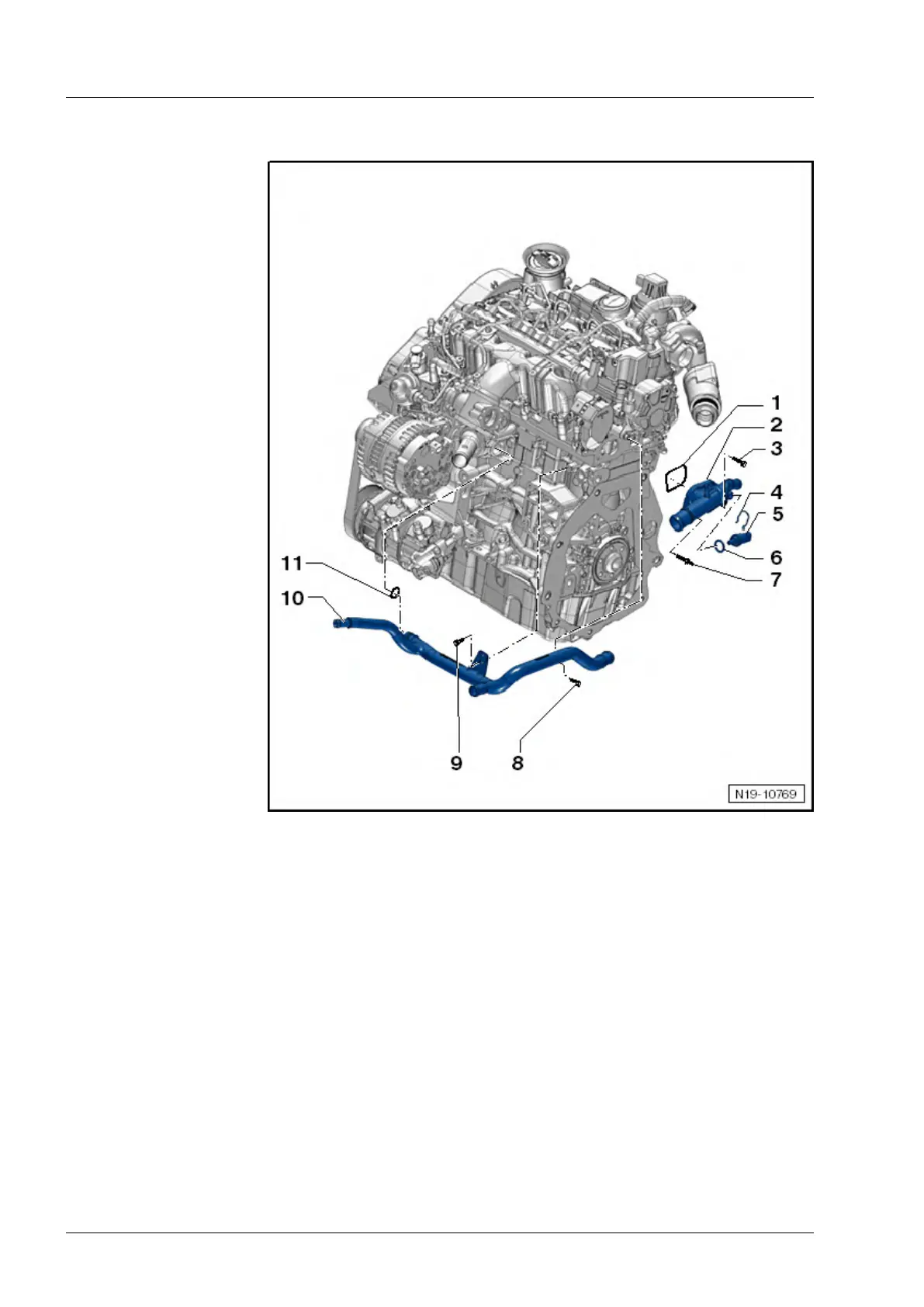

1.1 Parts of cooling system, engine side, engine codes CJDA, CJDD
1 - Gasket
q Renew
2 - Connection
q Coolant hose sche-
matic diagram
⇒ Page 280.
3 - 9 Nm
4 - Retaining clip
5 - Coolant temperature
sender -G62-
q
For engine control
unit -J623-.
q
Before removing,
release pressure in
cooling system if
necessary.
q
Check ⇒ Page 407
6 - O-ring
q
Renew
7 - Centre hex stud,
9 Nm
8 - 40 Nm
9 - 13 Nm
10 - Coolant pipe
q
Coolant hose sche-
matic diagram
⇒ Page 280.
11 - 
O-ring
q
Renew
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
278
Repair Group 19 - Cooling
