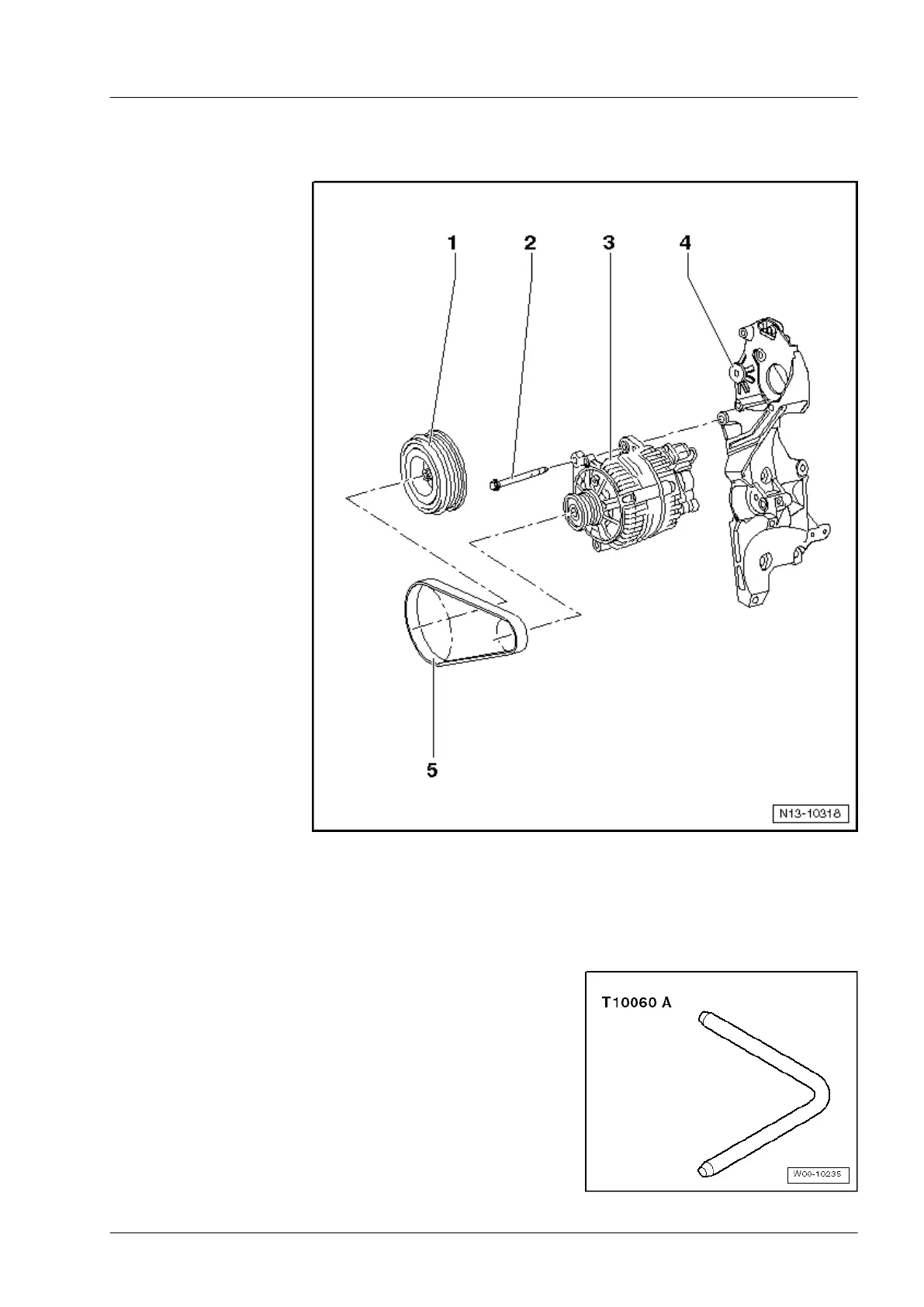

1.2 Assembly overview - poly V-belt drive, without air conditioner compres-
sor
1 - Vibration damper
q Installation position:
hole in vibration
damper must align
over protrusion on
crankshaft pulley.
2 - 23 Nm
3 - Alternator
4 - Ancillary bracket
5 - Poly V-belt
q Check for wear
⇒ Page 143
q
Removing and in-
stalling ⇒ Page 141
1.3 Removing and installing or renewing
poly V-belt
Example with air conditioner compressor
Special tools and workshop equipment required
â—† Locking pin -T10060 A-
Removing
– Mark direction of rotation of poly V-belt.
