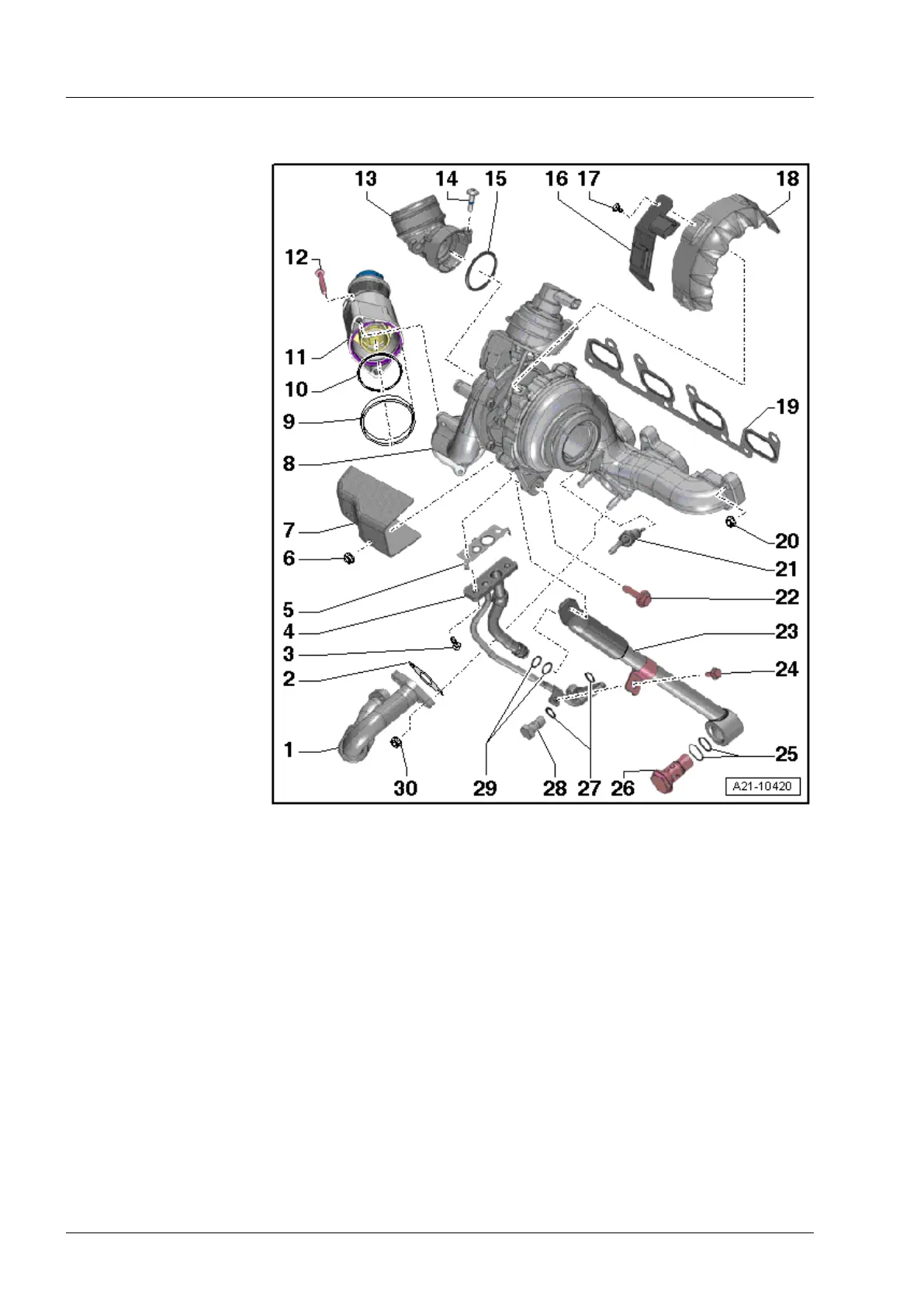

1.3.2 Engine codes CPYA, CPYB, CPYC, CPYD, CPYE
1 - Exhaust gas recircu-
lation pipe
q With flexible joint;
do not bend flexible
joint - danger of
cracking.
2 - Gasket
q Renew
3 - Countersunk bolt
with double nip
q Renew
q 17 Nm
4 - Connection
q With oil supply and
return line
q Before installing oil
supply line, ensure
that it is not
blocked.
5 - Gasket
q Renew
6 - Nut
q 24 Nm
7 - Heat shield
8 - Turbocharger
q Can only be re-
newed complete
with exhaust mani-
fold and vacuum
unit.
q Removing and in-
stalling ⇒ Page 326
9 - Retaining ring
q
Installation possible in one position only.
10 - O-ring
q
Renew
11 - Pulsation damper
q
Note installation position of O-ring and seal ⇒ Page 326
12 - Bolt
q
9 Nm
13 - Intake connecting pipe
14 - Bolt
q
9 Nm
q
Attached in inlet connection.
15 - O-ring
q
Renew
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
324
Repair Group 21 - Turbocharging/supercharging
