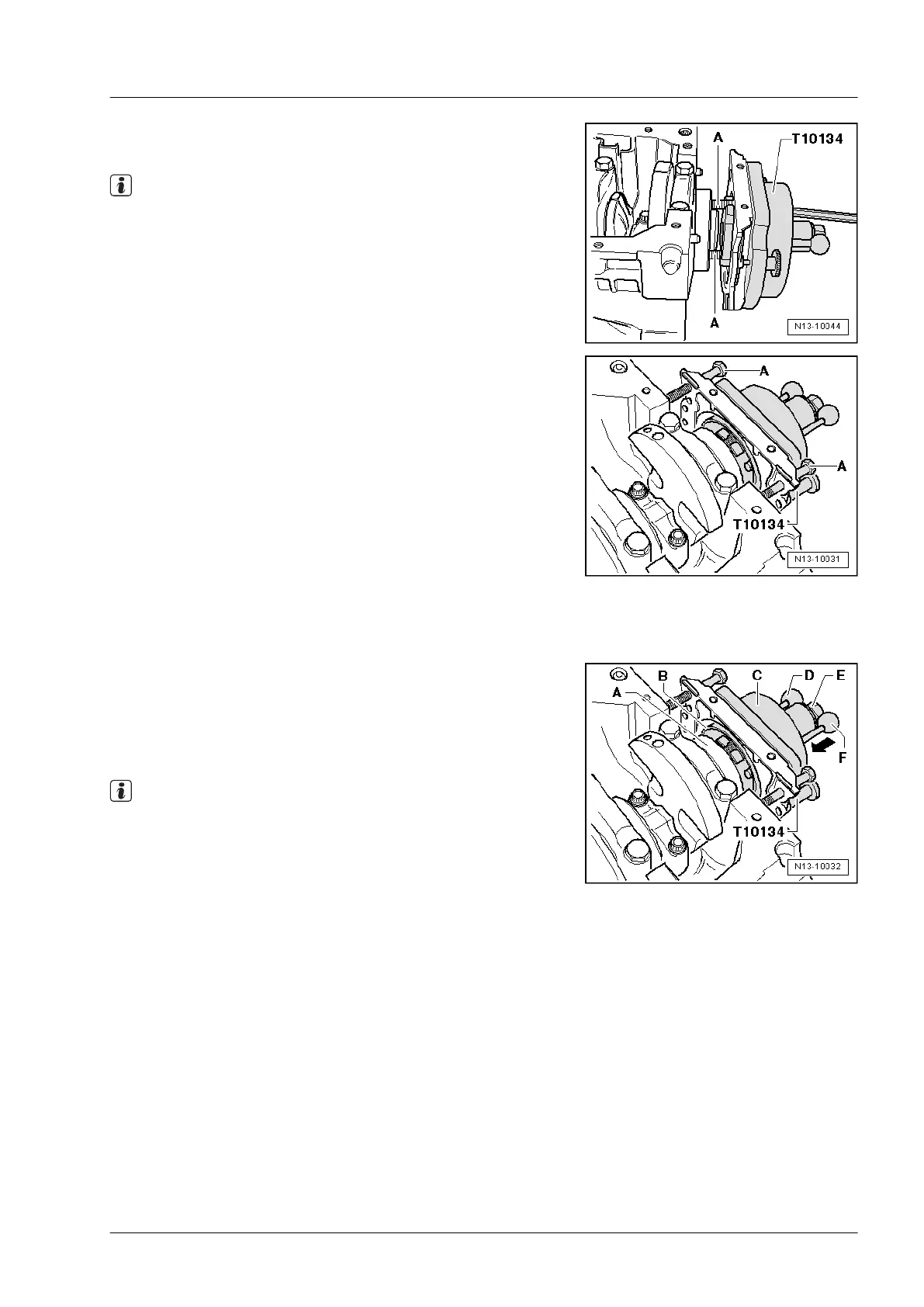

– Secure assembly tool -T10134- to crankshaft flange using
hexagon socket head bolts -A-.
Note
Screw hexagon socket head bolts -A- into crankshaft flange
(approx. 5 full turns).
– To guide sealing flange, screw two M7 × 35 mm bolts -A- in-
to cylinder block.
2.5.5 C - Bolting assembly tool -T10134- to
crankshaft flange
– Push assembly hub -C- by hand in -direction of arrow- until
sealing lip support ring -B- contacts crankshaft -A-.
– Push guide pin for diesel engines (black knob) -D- into hole
in crankshaft. This ensures that the sender wheel reaches its
final installation position.
Note
The guide pin for petrol engines (red knob) -F- must not be in-
serted in threaded hole of crankshaft.
– Hand-tighten both hexagon socket head bolts of assembly
tool.
– Screw hexagon nut -E- onto threaded spindle by hand until it
lies on assembly housing -C-.
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
3
