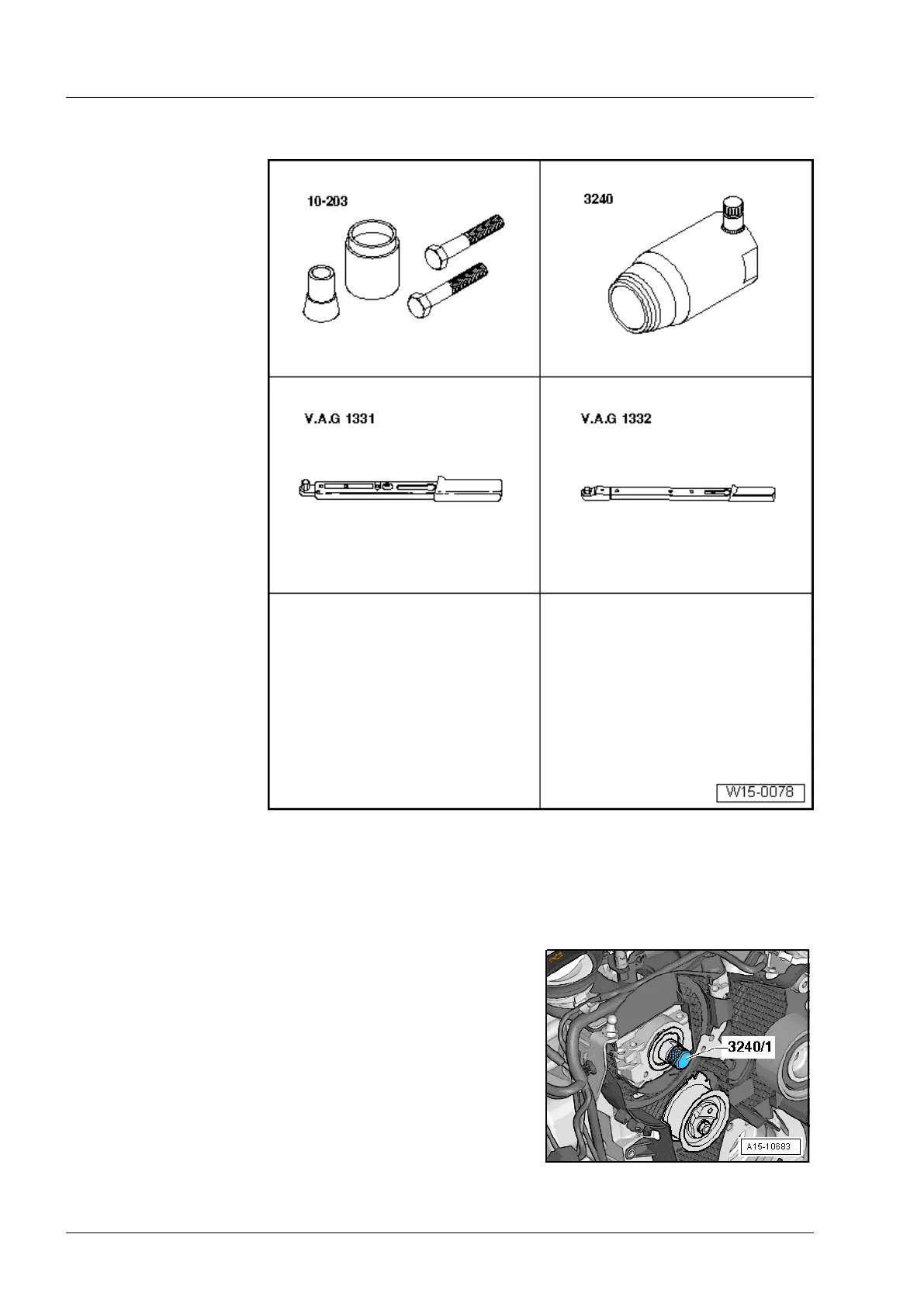

2.5.1 Engines up to 08.09
Special tools and
workshop equipment
required
â—† Fitting tool -10-203-
â—† Oil seal extractor
-3240-
◆ Torque wrench (5…50
Nm) -V.A.G 1331-
◆ Torque wrench (40…
200 Nm) -V.A.G 1332-
◆ Bolt M12×1.5×65
Removing
– Remove toothed belt from camshaft and high-pressure
pump; Removing, installing and tensioning toothed belt.
– Remove camshaft toothed belt pulley and hub ⇒ Page 233,
Removing and installing camshaft.
– Insert thrust piece -3240/1- into camshaft.
– Unscrew inner part of oil seal extractor -3240- 2 turns (ap-
prox. 3 mm) from outer part, and lock it in place using
knurled screw.
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
240
