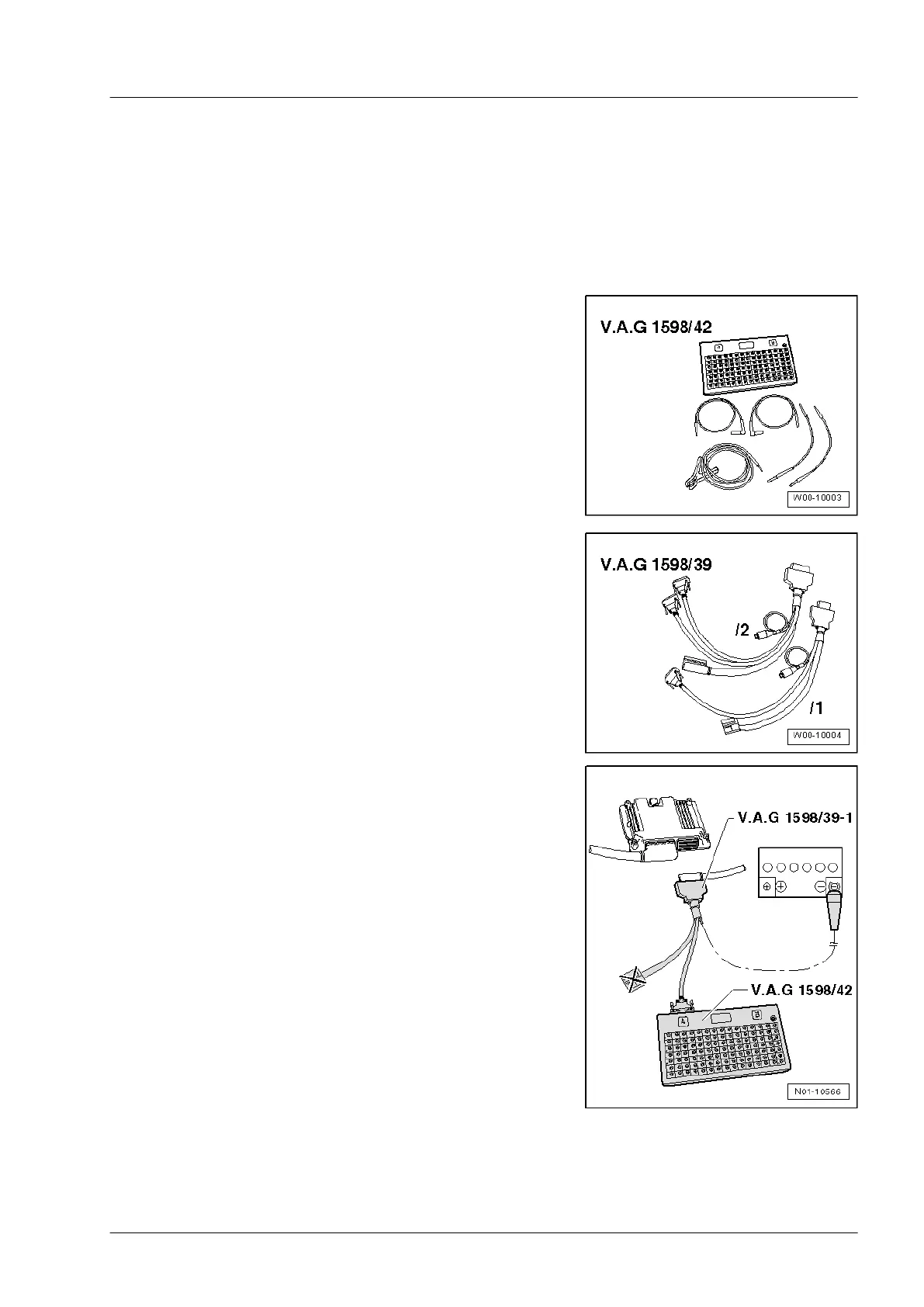

Connect test box -V.A.G 1598/42- using:
◆ adapter cable -V.A.G 1598/39-1- ⇒ Page 25, or
◆ adapter cable -V.A.G 1598/39-2- ⇒ Page 26.
1.4.1 Connecting test box -V.A.G 1598/42- using
adapter cable -V.A.G 1598/39-1-
Special tools and workshop equipment required
◆ Test box -V.A.G 1598/42-
◆ Adapter cable -V.A.G 1598/39-1-
Prerequisites
● Ignition switched off.
● All electrical consumers must be switched off.
Procedure
– Pull 60-pin connector off engine control unit -J623-.
– Using adapter cable -V.A.G 1598/39-1-, connect test box
-V.A.G 1598/42- to wiring harness of engine control unit and
to -connection A- of test box. The engine control unit is not
connected by this action.
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
