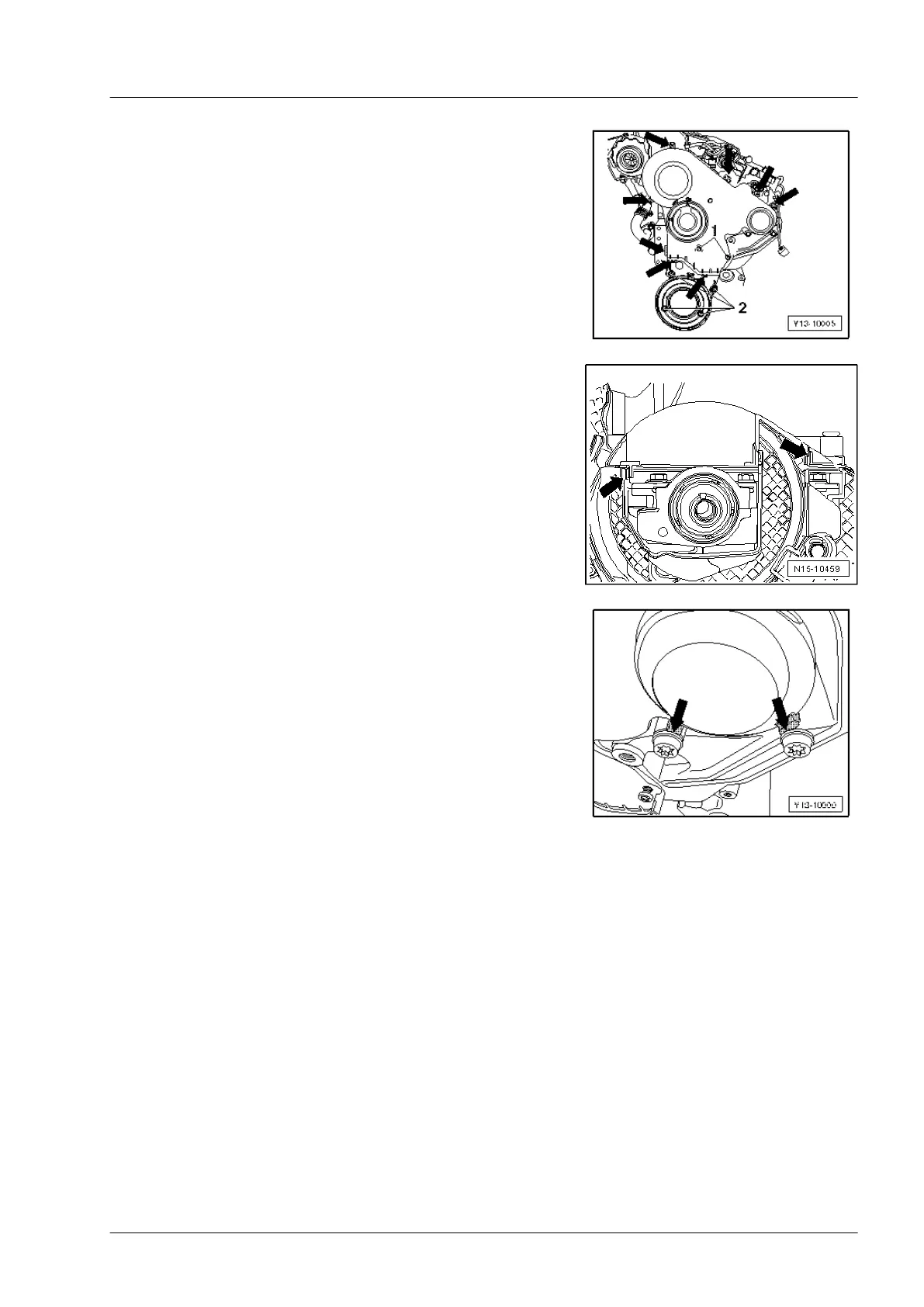

– Unscrew bolts -1- on upper part of toothed belt guard (qty. 2)
as well as bolts -2- on lower part of toothed belt guard (qty.
4), and remove both parts of toothed belt guard.
Installing
– Install in reverse order. In the process, note the following:
â—† Make sure that upper part of toothed belt guard is correctly
clipped to cylinder head cover -arrows-.
â—† Retaining lugs of cover must engage in behind heads of
bolts -arrows- ⇒ Page 150.
â—† After installing the toothed belt guard, make sure that the
Hall sender wheel is free to move. There may be grinding
noise. Slight grinding noises should disappear after the en-
gine has been running for a while. If the clearance is too
small, rework toothed belt guard as necessary (grind) before
installing toothed belt.
1.11 Performing visual check of toothed belt
tension
– For the visual check turn inspection cover on upper part of
toothed belt guard towards left to allow for removing inspec-
tion cover ⇒  see Service schedule 2.0 l_4 cyl._TDI_CR.
– Remove inspection cover, and perform visual check.
