q Fit into lugs on oil cooler.
12 - Oil cooler
q Ensure clearance to adjacent components.
q Checking oil cooler for leaks
13 - Seal
q Renew
14 - Cap, 25 Nm
q Loosen and tighten with socket AF 36 mm -T10125-.
15 - 10 Nm
16 - Bracket
3.1.2 Removing and installing oil filter bracket
together with oil cooler
Special tools and workshop equipment required
â—† Assembly tool -T10118-
â—† Oil drip tray
Removing
– Drain coolant.
– Detach any required wiring harnesses and connectors, and
lay them to one side.

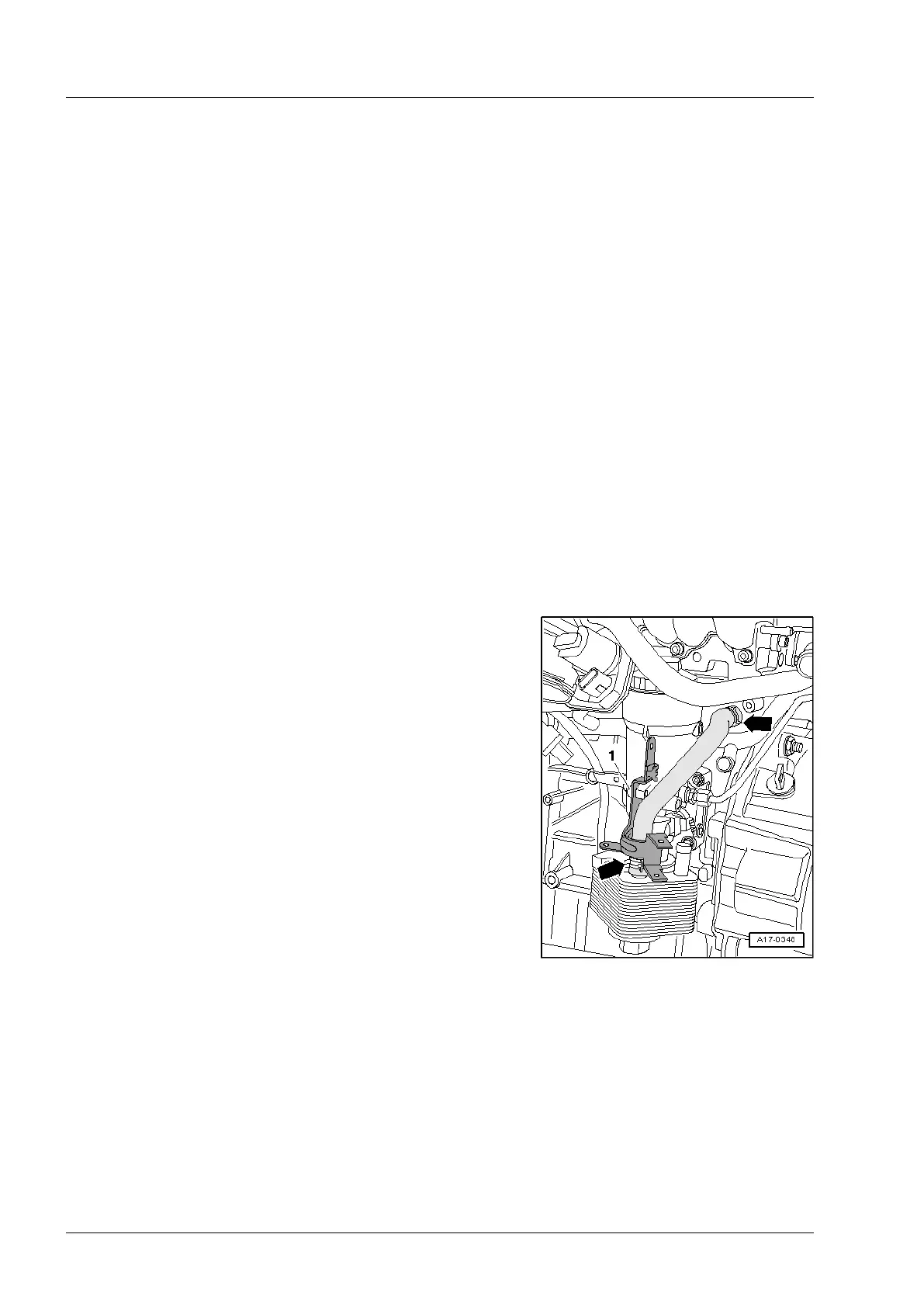

– Unscrew securing bolt -1- and remove bracket.
– Pull coolant hoses off oil cooler.
– Remove any relevant hoses and charge air pipes.
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
262
Repair Group 17 - Lubrication
