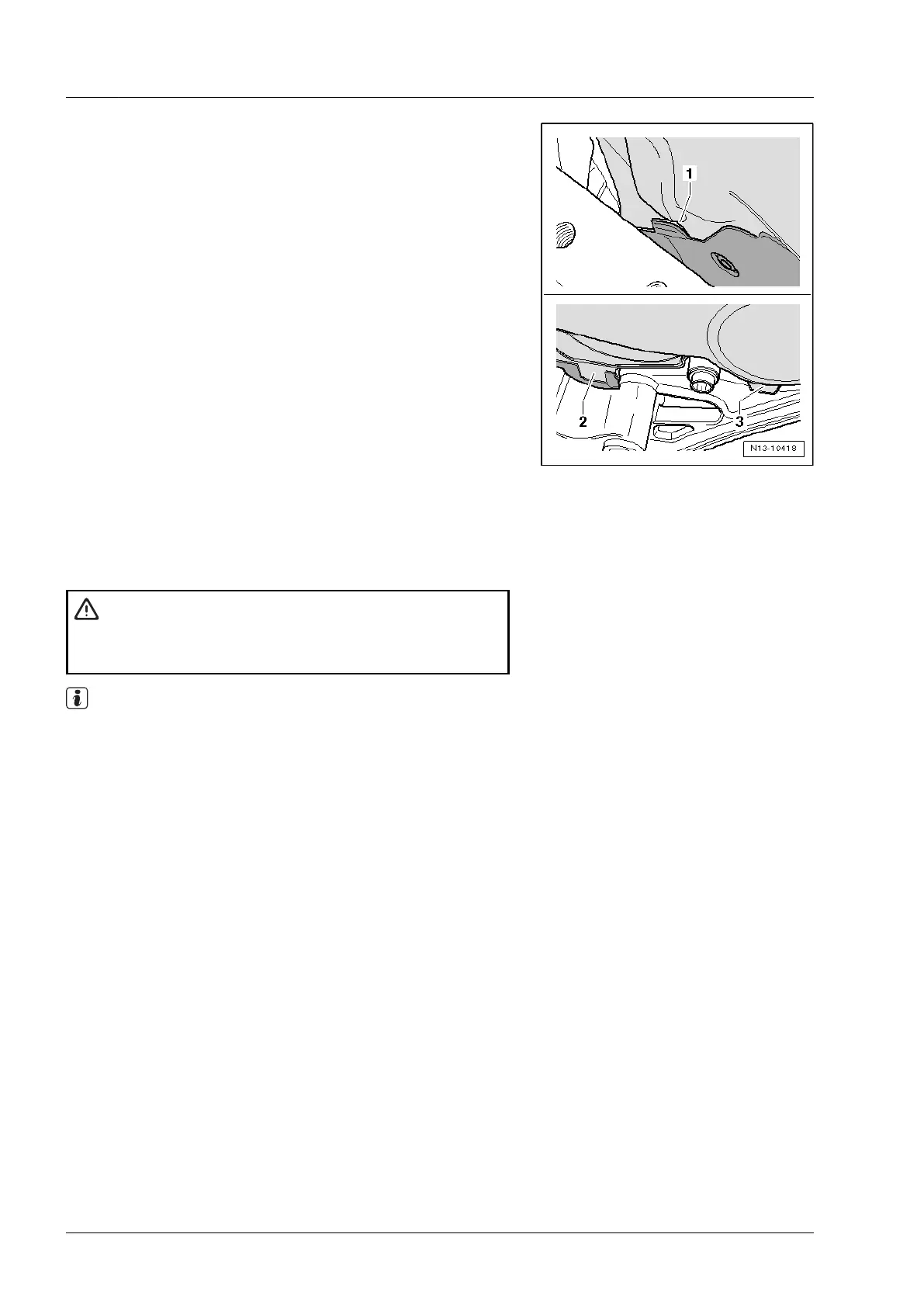

– First, hook back of top part of toothed belt guard to middle
part -1- of toothed belt guard.
– Then, fit toothed belt guard to middle -2- and -3- of toothed
belt guard at the top.
1.5 Renewing toothed belt and toothed belt
tensioning roller for camshaft drive, en-
gine codes CJDA, CJDD, CPYA, CPYB,
CPYC, CPYD, CPYE
WARNING
Adhere to the general safety regulations and the notes on
repair work on the engine! ⇒ Page 1
Note
â—† In general, the toothed belt does not need to be renewed be-
fore the next change interval is due. Especially cracks on the
rear do not affect the service life and cannot be covered by
goodwill or as a warranty-related measure.
â—† We recommend to renew the coolant pump along with the
toothed belt.
â—† Take the respective service interval into account.
Removing ⇒ Page 212.
Installing, tensioning ⇒ Page 214.
3
Industriemotoren - Industrial Engines 2009 ▶
Workshop Manual for Diesel Engine (2.0 l/36-75 kW_EA 189) 05.2015
210
Repair Group 15 - Cylinder head, valve gear
