ABB ACS320 User Manual

178 Actual signals and parameters
 Group 15: Analogue outputs
This group defines the drive’s analog (current signal) outputs. The drive’s analog
outputs can be:
• Any parameter of Group 01: Operating data.
• Limited to programmable minimum and maximum values of output current.
• Scaled (and/or inverted) by defining the minimum and maximum values of the
source parameter (or content). Defining an maximum value (parameter 1503 AO1
CONTENT MAX) that is less than the content minimum value (parameter 1502
AO1 CONTENT MIN) results in an inverted output.
• Filtered.
Group 15: Analogue outputs
Code Description Range Resolution Default S
1501
AO1 CONTENT SEL
0...178 1 103
Connects a drive signal to analog output AO.
• Parameter index in Group 01: Operating data. For example, 102 = 0102 SPEED.
1502
AO1 CONTENT MIN
Depends on selection - 0.0
Sets the minimum content
value.
• Content is the parameter
selected by parameter
1501 AO1 CONTENT
SEL.
• Minimum value refers to
the minimum content
value that will be
converted to an analog
output.

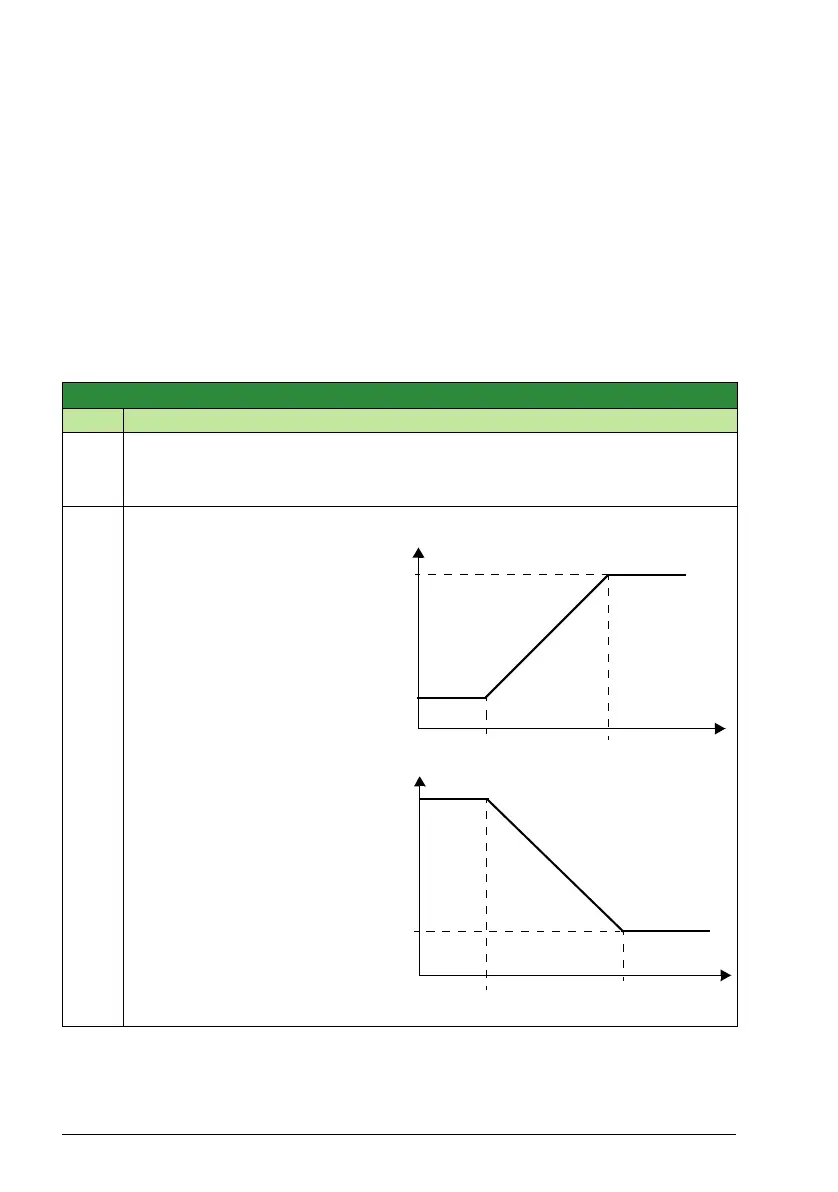

• These parameters
(content and current
min. and max. settings)
provide scale and offset
adjustment for the
output. See the figure.
AO (mA)
AO CONTENT
1502
AO (mA)
AO CONTENT
1505
1504
1503
1505
1504
1503
1502

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
