ABB ACS320 User Manual

62 Start-up
Start-up
Start-up can be performed in two ways:
• Using the Start-up assistant.
See section Start-up by using the Start-up assistant.
• Changing the parameters individually.
See section Start-up by changing the parameters individually.
 Start-up by using the Start-up assistant

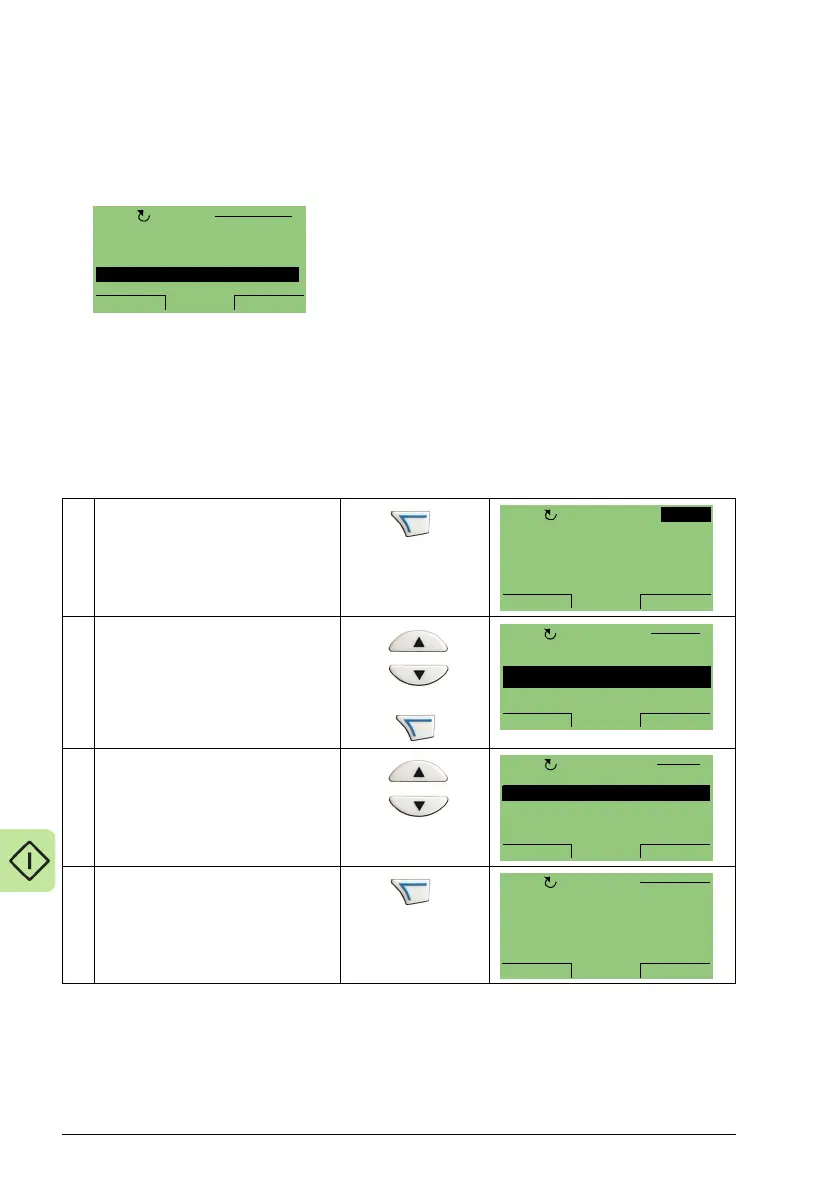

To start the Start-up assistant, follow these steps:
The Start-up assistant will guide you through the start-up.
1
Select MENU to enter the main
menu
2
Select ASSISTANTS with the
Up/Down buttons and select
ENTER.
3
Scroll to Commission drive with
the Up/Down buttons.
4
Change the values suggested by
the assistant to your preferences
and then press SAVE after every
change.
Do you want to
use the start-up
assistant?
Yes
No
EXIT
OK
CHOICE 2OFF
0 A
0 %
0 mA0.
0.
0.
0.0HzOFF
MENU
SP
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
OFF MAIN MENU 2
Spin the motor
Commission drive
References 1 & 2
Start/Stop Control
Protections
EXIT
SEL
ASSISTANTS 2OFF
9901 LANGUAGE
PAR EDIT
ENGLISH
[0]
OFF
EXIT SAVE

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
