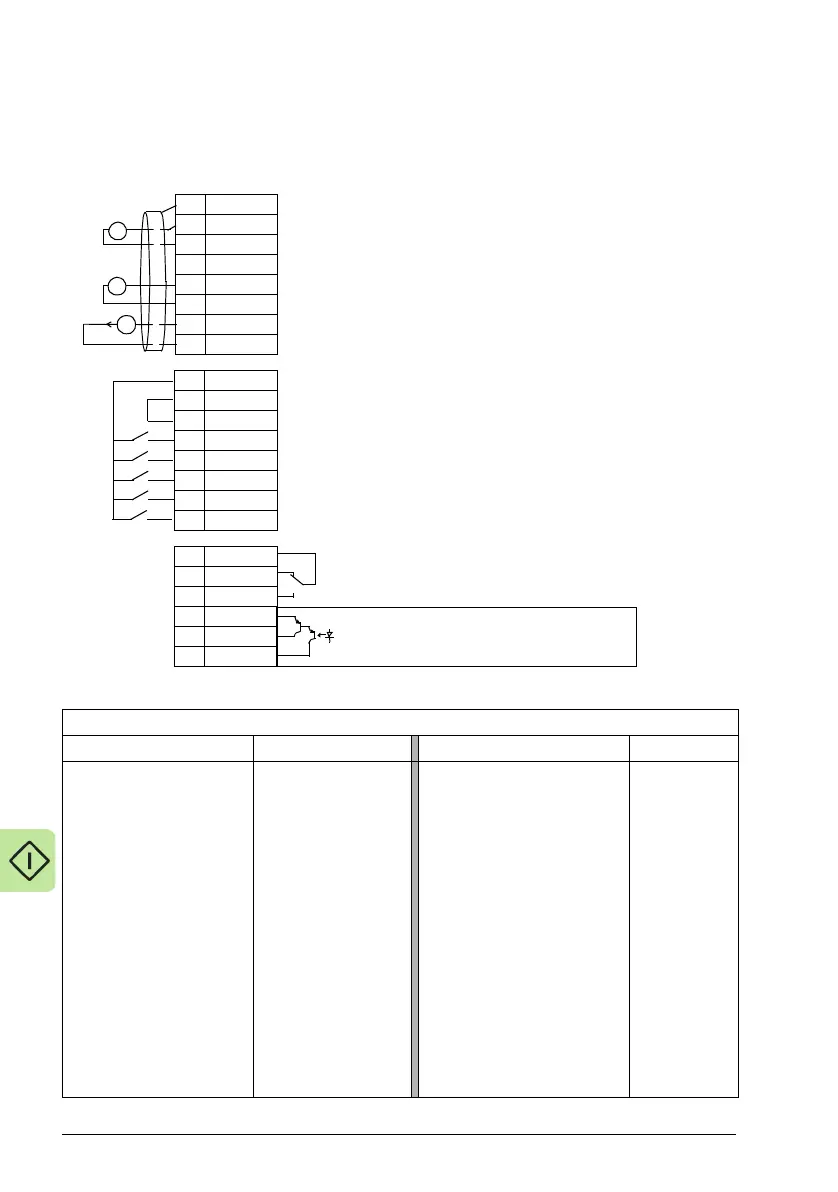

96 Application macros
Hand control
This macro configures for drive control using only the control panel with no automated
control. Typically, this is a temporary configuration used prior to control wiring.
Parameters changed relative to HVAC default
Parameter Value
Parameter Value
9902 APPLIC MACRO 14 (HAND CONTROL) 3415 SIGNAL3 PARAM 100 (NOT SEL)
1001 EXT1 COMMANDS 0 (NOT SEL)
3416 SIGNAL3 MIN (-)
1002 EXT2 COMMANDS 0 (NOT SEL)
3417 SIGNAL3 MAX (-)
1106 REF3 SEL 2 (AI2)
3418 OUTPUT 3 DSP FORM (-)
1201 CONST SPEED SEL 0 (NOT SEL)
3419 OUTPUT 3 DSP UNIT (-)
1301 MINIMUM AI1 0.0%
3420 OUTPUT 3 MIN (-)
1304 MINIMUM AI2 0.0%
3421 OUTPUT 3 MAX (-)
1401 RELAY OUTPUT 1 7 (STARTED)
4001 GAIN 1.0
1504 MINIMUM AO1 0.0mA
4002 INTEGRATION TIME 60.0 s
1510 MINIMUM AO2 0.0mA
4010 SETPOINT SEL 1 (AI1)
1601 RUN ENABLE 2 (DI2)
4101 GAIN 1.0
1608 START ENABLE 1 0 (NOT SEL)
4102 INTEGRATION TIME 60.0 s
2108 START INHIBIT 1 (ON)
4110 SETPOINT SEL 1 (AI1)
3207 SUPERV 3 PARAM 0103 (OUTPUT FREQ)
4210 SETPOINT SEL 1 (AI1)
1SCR
2AI1
3AGND
410V
5AI2
6AGND
7AO1
8AGND
924V
10 GND
11 DCOM
12 DI1
13 DI2
14 DI3
15 DI4
16 DI5
17 RO1C
18 RO1A
19 RO1B
20 DOSRC
21 DOOUT
22 DOGND
External reference 0(2)…10 V or 0(4)…20 mA
Reference voltage 10 VDC
Output frequency: 0(4)…20 mA
Not Configured
Not Configured
Not Configured
Not Configured
Not Configured
Relay output 1 (P 1401)
Default operation: Started =>17 connected to 19
Digital output, max. 100 mA (P 1805)
No fault [Fault(-1)] =>20 connected to 22
X1A
Analog input circuit common
PID feedback: 0(2)…10 V or 0(4)…20 mA
Analog output circuit common
Auxiliary voltage output +24 VDC
Auxiliary voltage output common
Digital input common for all
Signal cable shield (screen)
Analog input circuit common
+
mA
+
X1B
