Planning the electrical installation 41
Routing the cables
Route the motor cable away from other cable routes. Motor cables of several drives
can be run in parallel installed next to each other. It is recommended that the motor
cable, input power cable and control cables are installed on separate trays. Avoid
long parallel runs of motor cables with other cables to decrease electromagnetic
interference caused by the rapid changes in the drive output voltage.
Where control cables must cross power cables make sure that they are arranged at
an angle as near to 90 degrees as possible.
The cable trays must have good electrical bonding to each other and to the grounding
electrodes. Aluminium tray systems can be used to improve local equalizing of
potential.

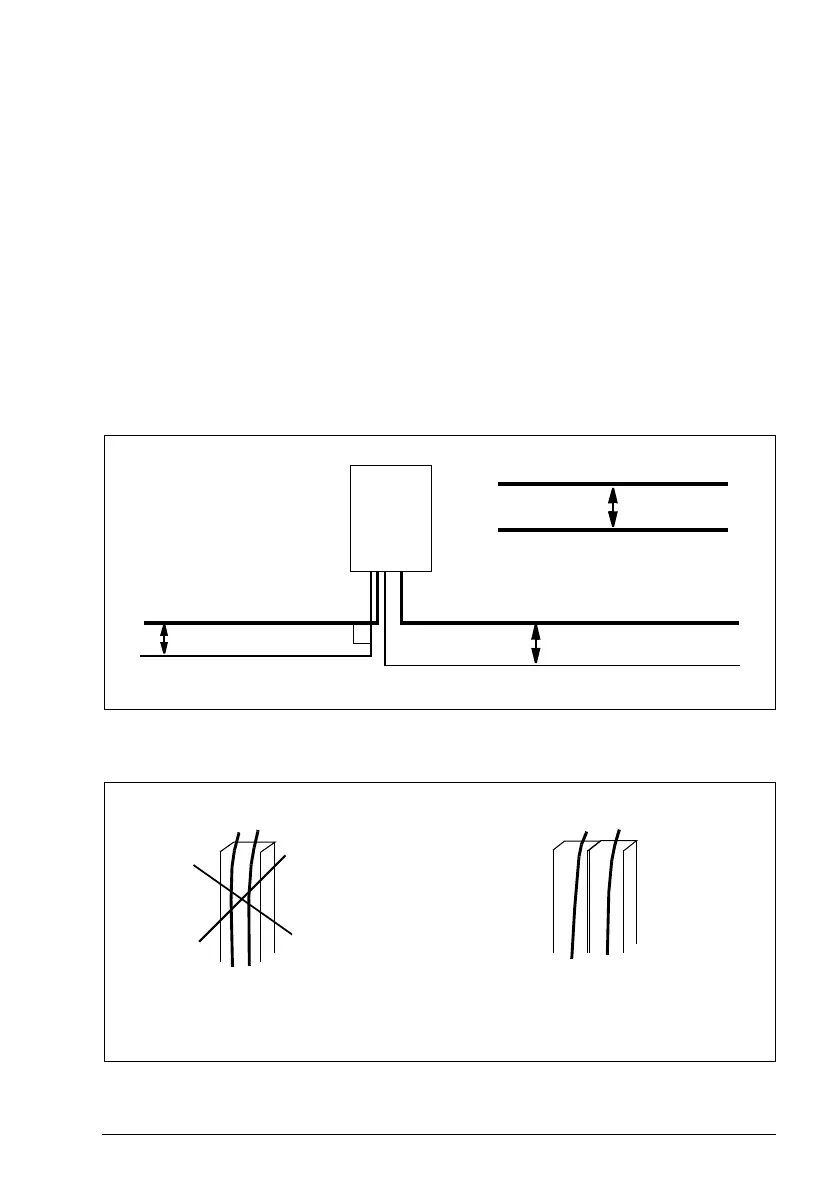

A diagram of the cable routing is shown below.
 Control cable ducts
Drive
Motor cable
Power cable
min. 300 mm (12 in)
Motor cable
min. 200 mm (8 in)
Input power cable
Control cables
90°
min. 500 mm (20 in)
Lead 24 V and 230 V control cables in
separate ducts inside the cabinet.
Not allowed unless the 24 V cable is
insulated for 230 V or insulated with an
insulation sleeving for 230 V.
230 V24 V 230 V24 V

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
