ABB ACS320 User Manual

Application macros 91
 Internal timer with constant speeds / PRV
This macro configures for applications such as a timed powered roof ventilator (PRV)
which alternates between two constant speeds (constant speed 1 and 2) based on a
built-in timer.
Momentarily activating digital input 3 (DI3) provides a boost function which operates
the motor. See Group 36: Timed functions for more information on setting up timers.
For more information see Default values with different macros on page 279.
Parameters changed relative to HVAC default
Parameter Value
Parameter Value
9902 APPLIC MACRO 9 (INT TIMER CS) 3419 OUTPUT3 UNIT 4 (%)
1002 EXT2 COMMANDS 0 (NOT SEL)
3420 OUTPUT3 MIN -200.0%
1103 REF1 SEL 0 (KEYPAD)
3421 OUTPUT3 MAX 200.0%
1201 CONST SPEED SEL 15 (TIMER1)
3501 TIMERS ENABLE 1 (DI1)
1401 RELAY OUTPUT 1 7 (STARTED)
3622 BOOST SEL 3 (DI3)
1601 RUN ENABLE 2 (DI2)
3626 TIMER 1 SRC 31 (P1+2+3+4+B)
1609 START ENABLE 2 5 (DI5)
4010 SET POINT SEL 1 (AI1)
3415 SIGNAL 3 PARAM 0105 (TORQUE)
4110 SET POINT SEL 1 (AI1)
3418 OUTPUT 3 DSP FORM 1 (+/-0.0)

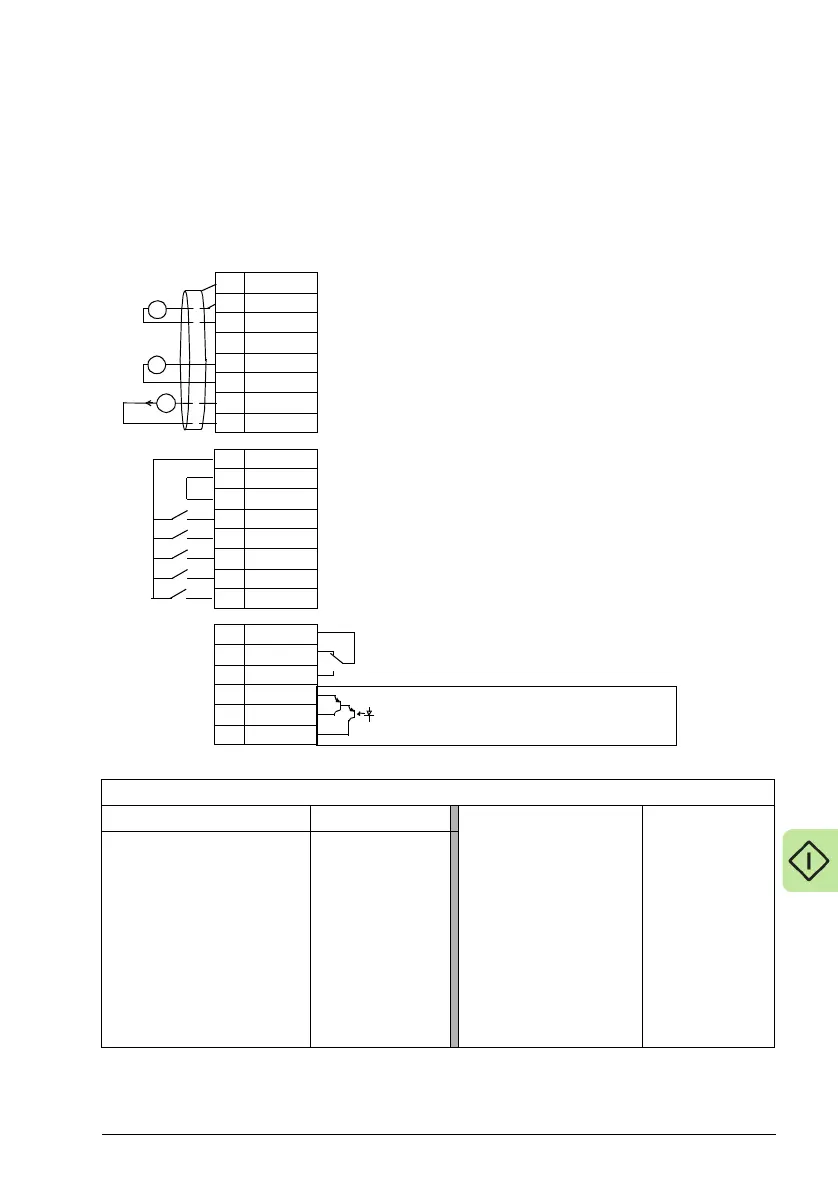

1SCR
2AI1
3AGND
410V
5AI2
6AGND
7AO1
8AGND
924V
10 GND
11 DCOM
12 DI1
13 DI2
14 DI3
15 DI4
16 DI5
17 RO1C
18 RO1A
19 RO1B
20 DOSRC
21 DOOUT
22 DOGND
External reference 0(2)…10 V or 0(4)…20 mA
Reference voltage 10 VDC
Output frequency: 0(4)…20 mA
Start/Stop: Activate to start drive
Run permissive: Deactivate to stop drive (P 1601)
Timer Override: Activate to start drive
Safety interlock1: Deactivate to stop drive (P 1608)
Safety interlock2: Deactivate to stop drive (P 1609)
Relay output 1 (P 1401)
Default operation: Started =>17 connected to 19
Digital output, max. 100 mA (P 1805)
No fault [Fault(-1)] =>20 connected to 22
X1A
Analog input circuit common
PID feedback: 0(2)…10 V or 0(4)…20 mA
Analog output circuit common
Auxiliary voltage output +24 VDC
Auxiliary voltage output common
Digital input common for all
Signal cable shield (screen)
Analog input circuit common
+
mA
+
X1B

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
