Start-up 59
8
Start-up
Contents of this chapter
This chapter contains a brief description of the assistant (HVAC) control panel
(operator keypad), start-up assistant and application selection.
This chapter also includes the application macros used for defining a group of
parameters. Macros change a group of parameters to new, predefined values. Use
macros to minimize the need for manual editing of parameters.

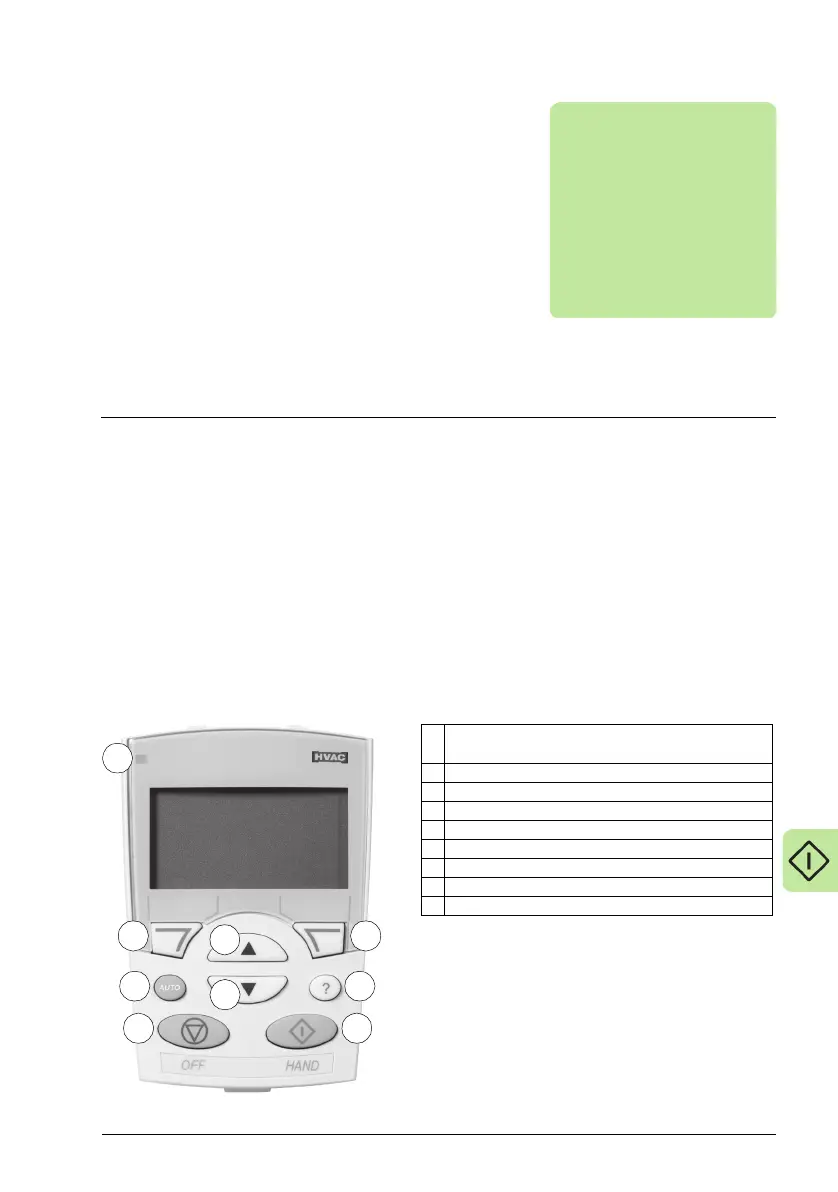

HVAC control panel features
The ACS320 HVAC control panel (ACH-CP-B) features:
1
2
3
4
5
7
8
9
6
1 Status LED (Green when normal, if flashing or
red, see section LEDs on page 381.)
2 Soft key 1
3Auto
4Off
5Up
6Down
7 Soft key 2
8 Help (always available)
9Hand

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
