78 Start-up

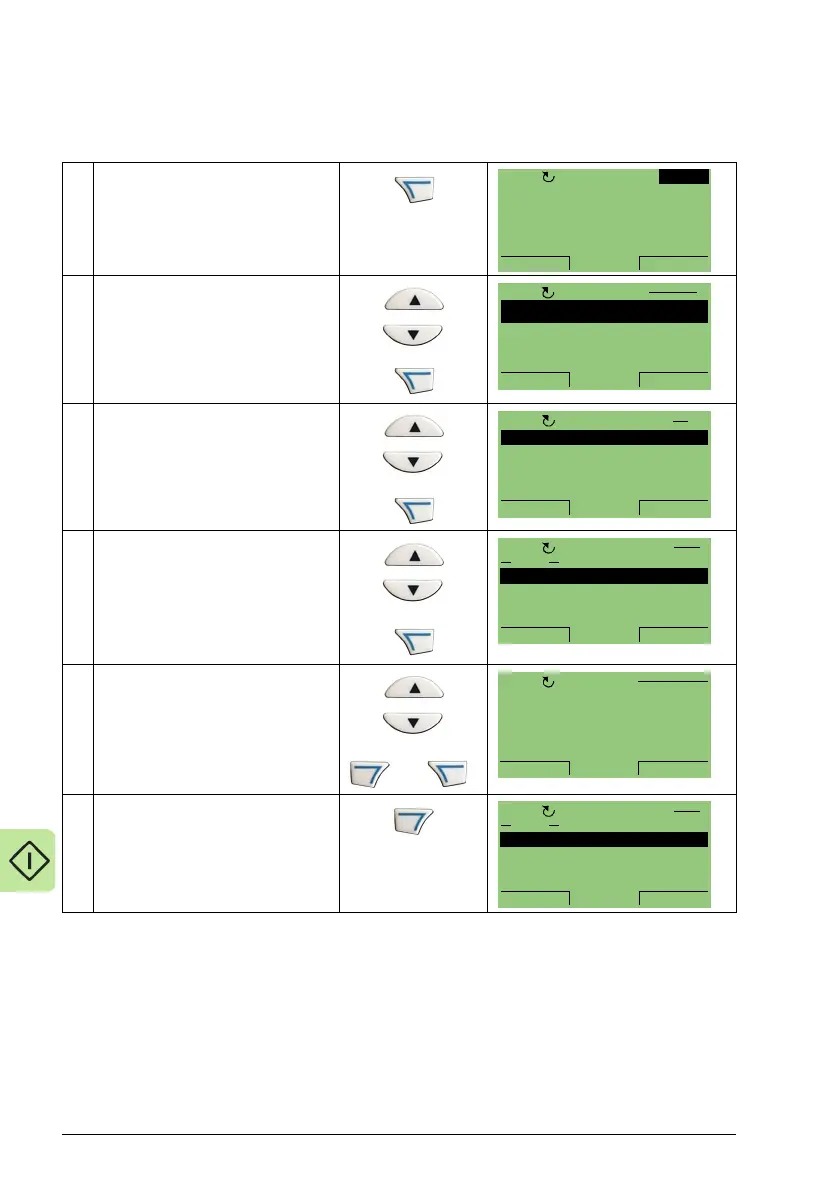

 I/O settings mode
To view and edit the I/O settings, follow these steps:
1
Select MENU to enter the main
menu.
2
Scroll to I/O SETTINGS with the
UP/DOWN buttons and select
ENTER.
3
Scroll to the I/O setting you want
to view with the UP/DOWN
buttons and select SEL.
4
Select the setting you want to
view with the UP/DOWN buttons
and select EDIT.
5
You can change the value with
the UP/DOWN buttons and save
it by selecting SAVE.
If you do not want to change the
setting, select CANCEL.
6
Select EXIT to return to the main
menu.
0 A
0 %
0 mA0.
0.
0.
0.0HzOFF
MENU
SP
I/O SETTINGS
PARAMETERS
ASSISTANTS
EXIT ENTER
1OFF MAIN MENU
DIGITAL INPUTS (DI)
ANALOG INPUTS (AI)
RELAY OUTPUTS (ROUT)
ANALOG OUTPUTS (AOUT)
PANEL
I/O SETTINGS 1
EXIT
SEL
OFF
1001:START/STOP (EI1)
1002:START/STOP (EI1)
___
EXIT
EDIT
I/O SETTINGSOFF
DI 1
1001 EXT1 COMMANDS
PAR EDIT
DI1
[1]
OFF
CANCEL SAVE
1001:START/STOP (EI1)
1002:START/STOP (EI1)
___
EXIT
EDIT
I/O SETTINGSOFF
DI 1

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
