ABB ACS320 User Manual

70 Start-up
 Changed parameters mode
To view (and edit) a listing of all parameters that have been changed from macro
default values, follow these steps:
 Fault logger mode
Use the Fault logger mode to see drive fault history, fault state details and help for the
faults.
1. Select FAULT LOGGER in the MAIN MENU.
2. Press ENTER to see the latest faults (up to 10 faults, maximum).
3. Press DETAIL to see details for the selected fault.
• Details are available for the three latest faults.
4. Press DIAG to see the help description for the fault. See chapter Fault tracing.
Note: If a power off occurs, only the three latest faults will remain (with details only in
the first fault).
 Drive parameter backup mode
Use the parameter backup mode to export parameters from one drive to another. The
parameters are uploaded from a drive to the control panel and downloaded from the
control panel to another drive. Two options are available:
Par backup mode
The Assistant control panel can store a full set of drive parameters.
The Par backup mode has these functions:

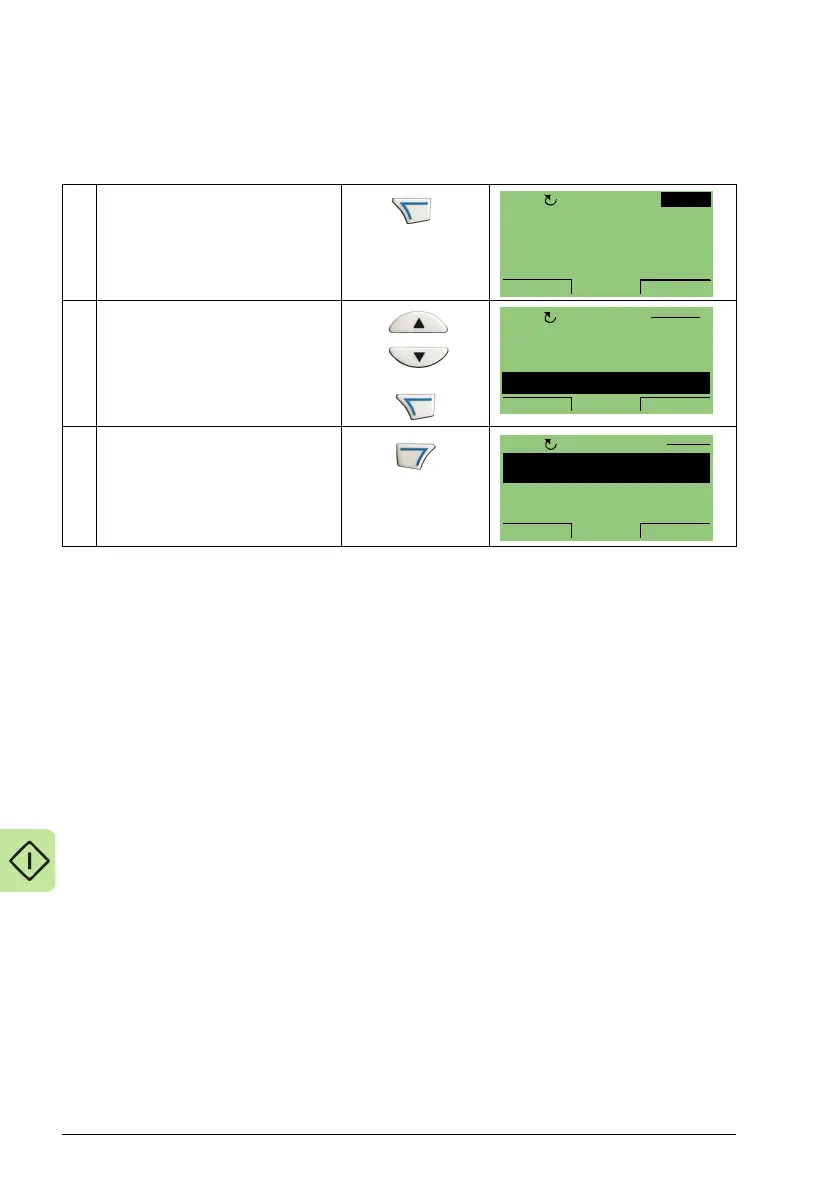

1
Select MENU to enter the menu.
2
Select CHANGED PAR with the
UP/DOWN buttons and select
ENTER.
3
A list of changed parameters is
displayed. Select EXIT to exit the
parameters mode.
0 A
0 %
0 mA0.
0.
0.
0.0HzOFF
MENU
SP
PARAMETERS
ASSISTANTS
CHANGED PAR
EXIT ENTER
OFF MAIN MENU 3
1202 CONST SPEED 1
20.0 Hz
1203 CONST SPEED 2
1204 CONST SPEED 3
1304 MINIMUM AI2
CHANGED PAR
EXIT
EDIT
OFF

ABB ACS320 Specifications

General

Overload Capacity	150% for 60 seconds
IP Rating	IP20
Frame Size	R1 to R3
Enclosure Rating	IP20
Frequency Range	0 to 500 Hz
Protection Features	Overvoltage, Undervoltage, Overcurrent, Overload, Short circuit, Ground fault, Overtemperature
Fieldbus Communication	Modbus RTU, PROFIBUS DP, CANopen
Communication Interfaces	RS485
Operating Temperature	-10 to +50 °C (14 to 122 °F)
Storage Temperature	-40°C to +70°C
Humidity	Less than 95% (non-condensing)
Supply Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
Input Voltage	200 V to 240 V (±10%), 380 V to 480 V (±10%)
