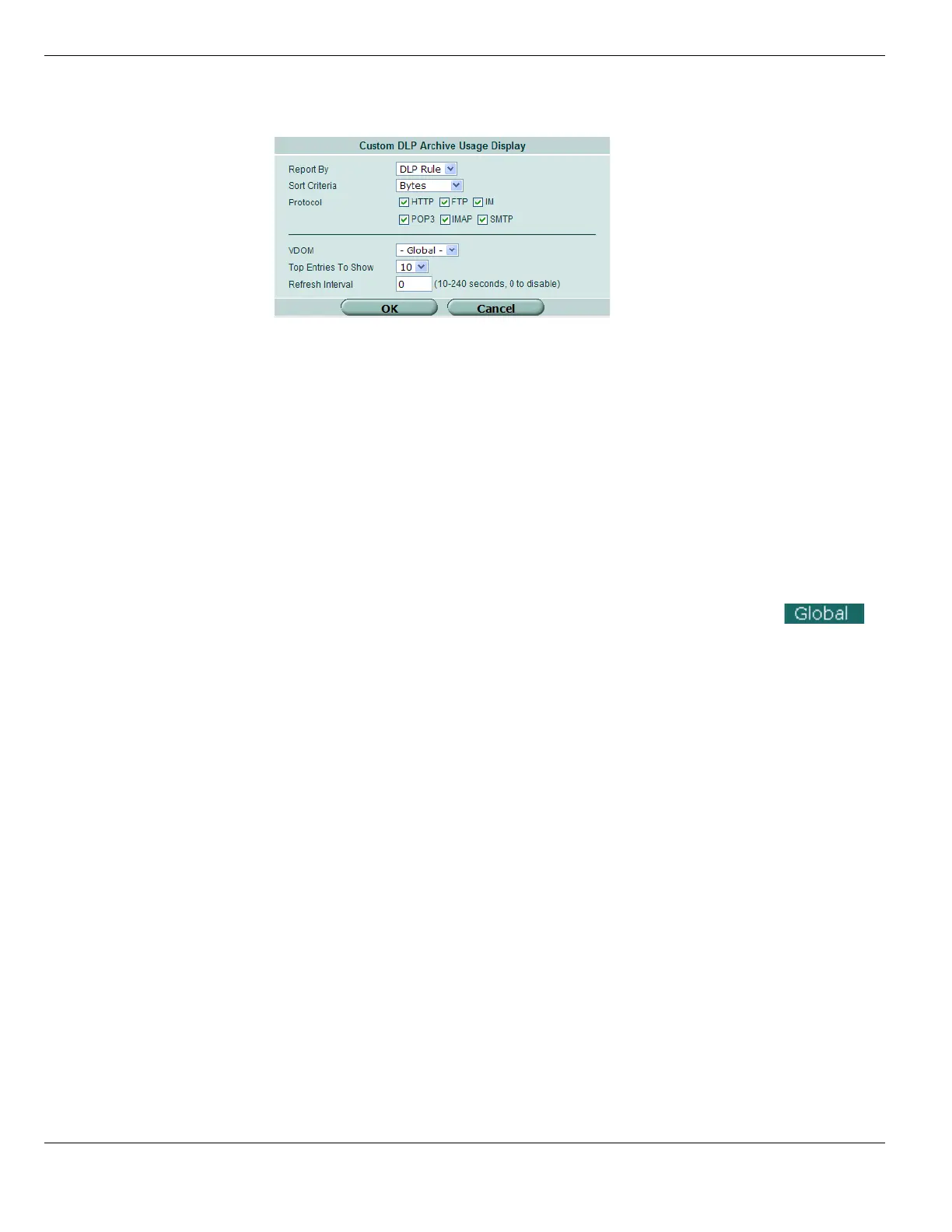

Figure 56: Configuring the DLP Archive module
Using the topology viewer
The Topology page provides a way to diagram and document the networks connected to
your FortiGate unit. The Topology viewer is not available if Virtual Domains (VDOMs) are
enabled.
To access the Topology viewer feature, go to System > Admin > Admin Profile and create
a custom menu layout in your administrative profile and add the Topology page. It is in the
Additional content category. See “Configuring an admin profile” on page 284.
Go to System > Status > Topology to view the system topology. The Topology page
consists of a large canvas upon which you can draw a network topology diagram of your
FortiGate installation.
Report By Select one of: DLP Rule, Profile, Policy, or Protocol.
Sort Criteria Select whether to sort the results by number of Bytes or number
of Messages.
Protocol Select the protocols to include.
VDOM Select the VDOM to monitor or select Global. This is available for
global administrators only. VDOM administrators see only their
only VDOM.
This field is not available if Report By is Protocol.
Top Entries To Show Select whether to display top 5, 10, 15, or 20 items.
Refresh Interval Select display update interval in seconds. Range 10 to 240
seconds. Select 0 to disable updating. You can also update
using the Refresh icon in the module header.
