SSL VPN enhancements What’s new in FortiOS Version 4.0 MR1
FortiGate Version 4.0 MR1 Administration Guide
38 01-410-89802-20090903
http://docs.fortinet.com/ • Feedback
SSL VPN enhancements
Single Sign-On
With this new feature, a web bookmark can include login credentials so that the SSL VPN
automatically logs the user into the web site. This means that the user logs into the SSL
VPN and then does not have to enter any more credentials to visit preconfigured web
sites. When the administrator configures bookmarks, the web site credentials must be the
same as the user’s SSL VPN credentials. Users configuring their own bookmarks can
specify alternative credentials for the web site.
To configure Single Sign-On bookmarks - web-based manager
1 Go to VPN > SSL > Portal and select the Edit icon for the portal.
2 Select the Edit icon in the Bookmarks widget title bar.
If the Bookmarks widget is missing, select Bookmarks from the Add Widget list.
3 In the Bookmarks widget, select Add.
4 Enter the following information:

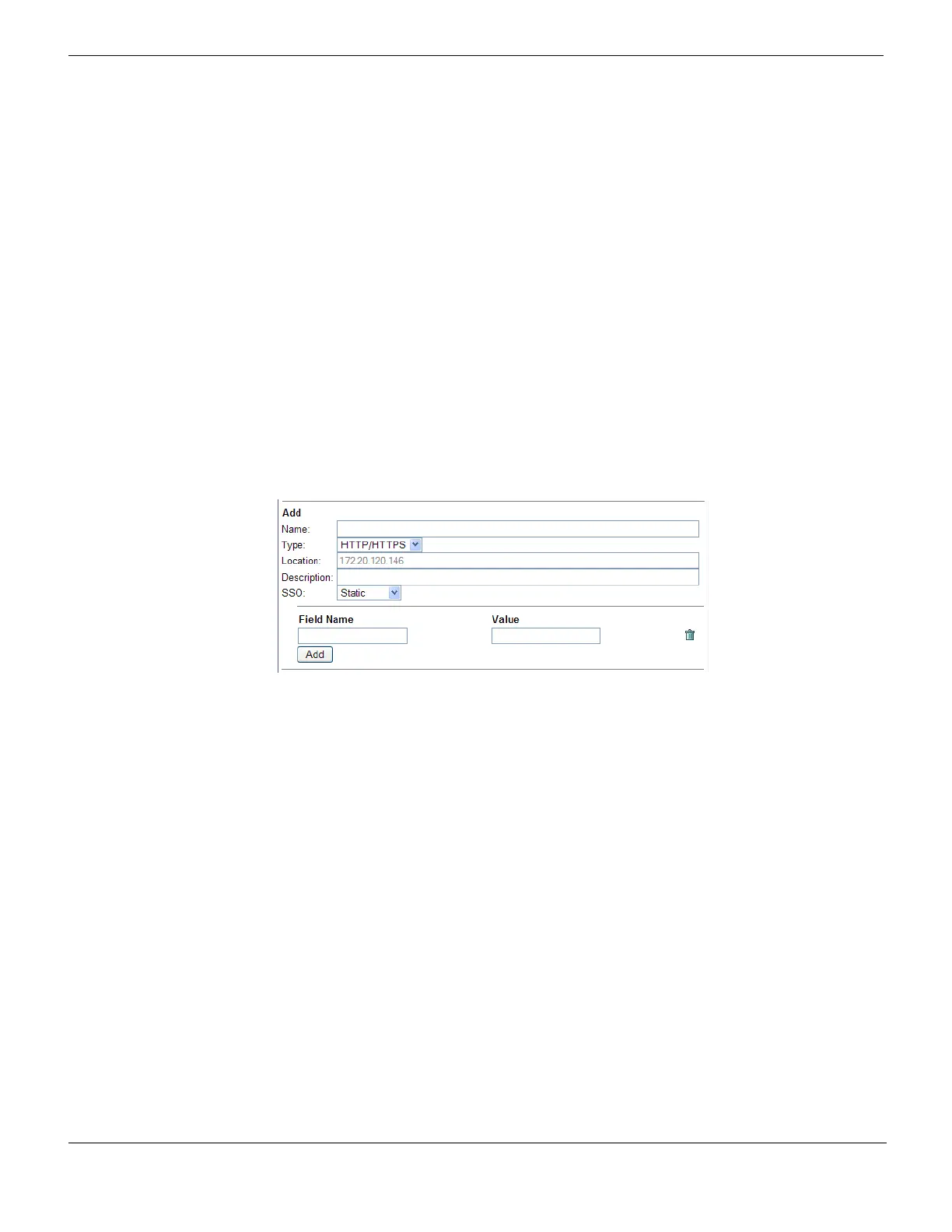

Figure 1: Configuring an SSO bookmark
5 Select OK.
6 Select Done.
Name Enter a name for the bookmark.
Type The type must be HTTP/HTTPS for an SSO bookmark.
Location Enter the bookmark location (URL without “http://” or “https://”).
Description Optionally, enter a description of the web site.
SSO Disabled — This is not an SSO bookmark.
Automatic — Use user’s SSL VPN credentials for login.
Static — Fill in the login credentials as defined below.
Field Name Enter a required login page field name, “User Name” for example.
Value Enter the value to enter in the field identified by Field Name.
If you are an administrator configuring a bookmark for users:
• enter %usrname% to represent the user’s SSL VPN user name
• enter %passwd% to represent the user’s SSL VPN password
Add Enter another Field Name / Value pair, for the password, for example.
A new set of Field Name / Value fields is added. Fill them in.
