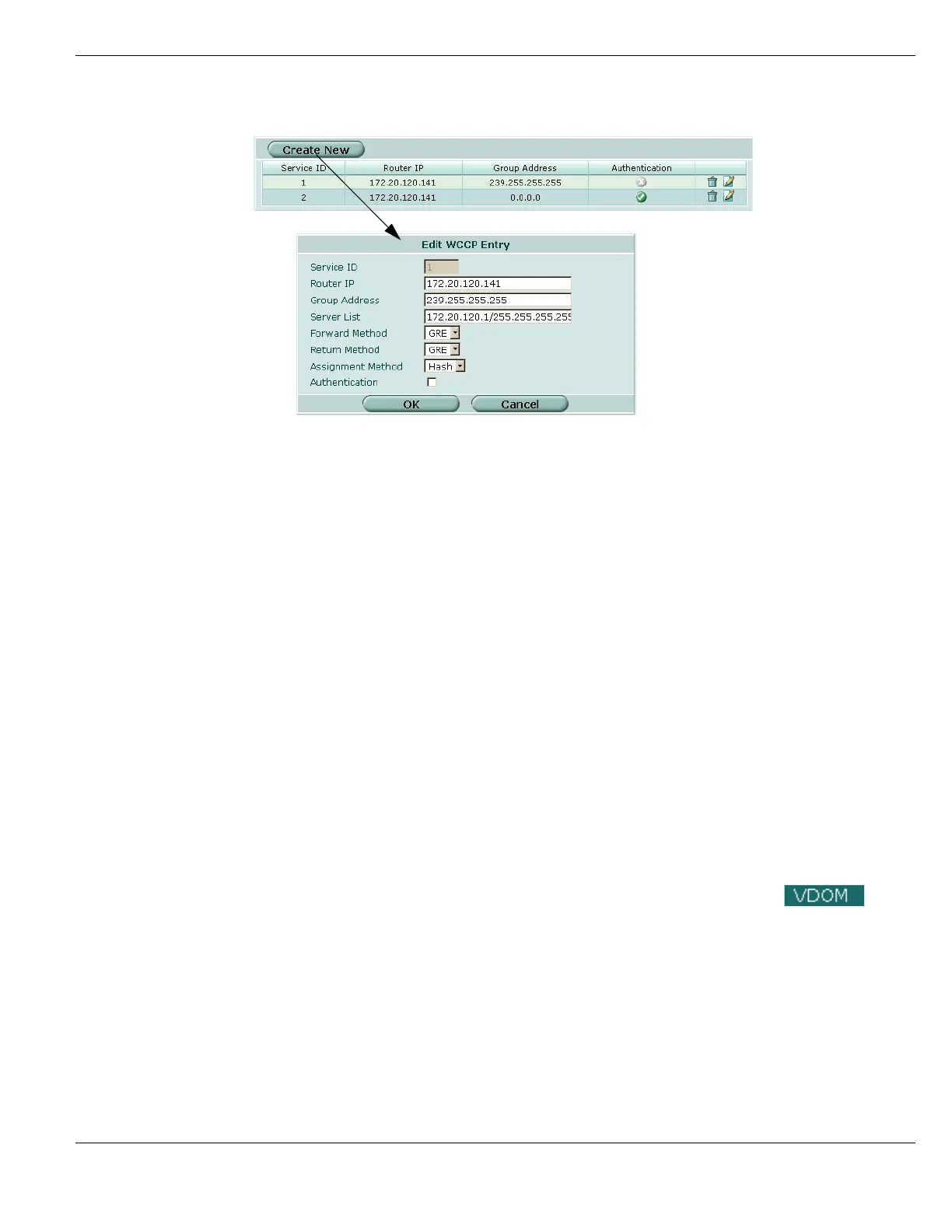

Figure 89: Adding WCCP entries
Routing table (Transparent Mode)
In NAT/Route mode the static routing table is located at System > Routing > Static, but in
Transparent Mode that static routing table is located at System > Network > Routing
Table.
Adding a static route in Transparent Mode
1 Ensure your FortiGate unit is in Transparent mode. For more details see “Changing
operation mode” on page 263.
2 Go to System > Network > Routing Table.
3 Select Create New.
Service ID Enter an ID number to identify the WCCP service.
Router IP Enter an IP address known to all cache servers. This IP address identifies a
FortiGate interface IP address to the cache servers. If all cache servers
connect to the same FortiGate interface, then Router IP can be 0.0.0.0, and
the FortiGate unit uses the IP address of that interface as the Router IP.
If the cache servers can connect to different FortiGate interfaces, you must
set Router IP to a single IP address, and this IP address must be added to
the configuration of the cache servers.
Group Address The IP multicast address used by the cache servers. Enter 0.0.0.0 to have
the FortiGate unit ignore multicast WCCP traffic. Otherwise, Group Address
must be from 224.0.0.0 to 239.255.255.255.
Server List The IP addresses of the web cache servers.
Forward Method Specify how the FortiGate unit forwards traffic to cache servers. You can
select GRE (the default), L2, or Any. If Forward Method is Any the cache
server determines the forward method.
Return Method Specify how a cache server declines a redirected packet and returns it to the
FortiGate unit. You can select GRE (the default), L2, or Any. If Return
Method is Any the cache server determines the return method.
Assignment Method Specify which assignment method the FortiGate unit prefers. You can select
Hash (the default), Mask, or Any. If Assignment Method is Any the cache
server determines the assignment method.
Authentication Select to use MD5 authentication for the WCCP configuration.
Password Enter an authentication password. Maximum length is 8 characters.
