Viewing and editing multicast settings
When multicast (PIM) routing is enabled, you can configure sparse mode or dense mode
operation on any FortiGate interface.
To view and edit PIM settings, go to Router > Dynamic > Multicast. The web-based
manager offers a simplified user interface to configure basic PIM options. You can also
configure advanced PIM options through the CLI. For more information, see the “router”
chapter of the FortiGate CLI Reference.

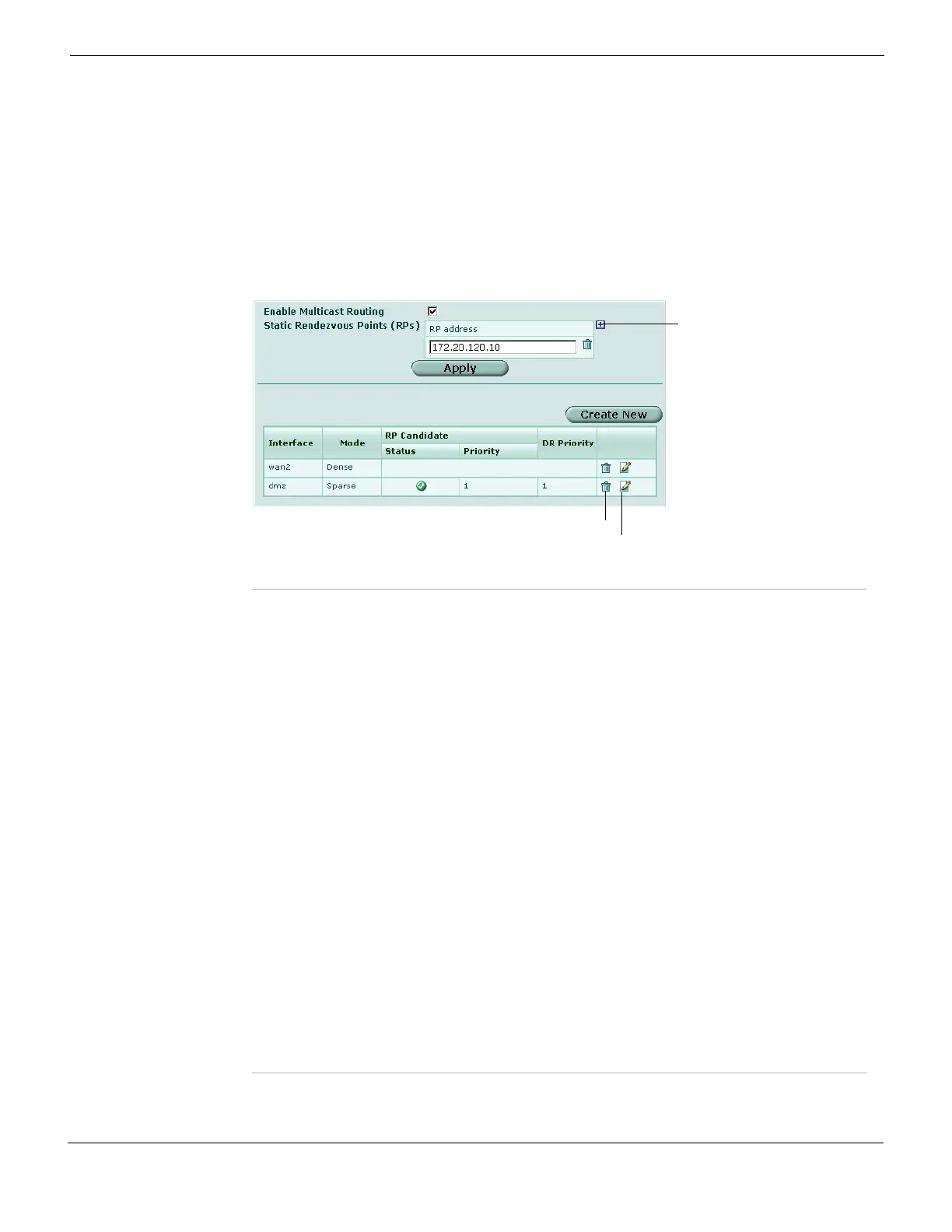

Figure 196: Basic Multicast options
Enable Multicast
Routing
Select to enable PIM version 2 routing. A firewall policy must be created on
PIM-enabled interfaces to pass encapsulated packets and decapsulated data
between the source and destination,
Add Static RP If required for sparse mode operation, enter the IP address of a Rendezvous
Point (RP) that may be used as the root of a packet distribution tree for a
multicast group. Join messages from the multicast group are sent to the RP,
and data from the source is sent to the RP.
If an RP for the specified IP’s multicast group is already known to the Boot
Strap Router (BSR), the RP known to the BSR is used and the static RP
address that you specify is ignored.
Apply Save the specified static RP addresses.
Create New Create a new multicast entry for an interface.
You can use the new entry to fine-tune PIM operation on a specific FortiGate
interface or override the global PIM settings on a particular interface. For
more information, see “Overriding the multicast settings on an interface” on
page 374.
Interface The names of FortiGate interfaces having specific PIM settings.
Mode The mode of PIM operation (Sparse or Dense) on that interface.
Status The status of parse-mode RP candidacy on the interface.
To change the status of RP candidacy on an interface, select the Edit icon in
the row that corresponds to the interface.
Priority The priority number assigned to RP candidacy on that interface. Available
only when RP candidacy is enabled.
DR Priority The priority number assigned to Designated Router (DR) candidacy on the
interface. Available only when sparse mode is enabled.
Delete and Edit
icons
Delete or edit the PIM settings on the interface.
Add Static RP
Edit
Delete
