Garmin G3X Touch
™
Pilot’s Guide for Certified Aircraft
190-02472-00 Rev. D 79
Flight Instruments
System
Overview
Flight
Instruments EIS
CNS
Interface
GPS
Navigation
Flight
Planning
Hazard
Avoidance
Additional
Features AFCS Annun/Alerts Appendix Index
User Timer on Status Bar
Adding User Timer to Data Bar:
1)
From any screen, press the MENU key twice.
2)
Touch Setup.
3)
Touch Data Bar.
4)
Find User Timer Button in the list. Touch to set the User Timer to Show
On Left, Show On Right, or Hide.
5)
Touch the Timer button on the Data Bar to access the User Timer dialog
box.

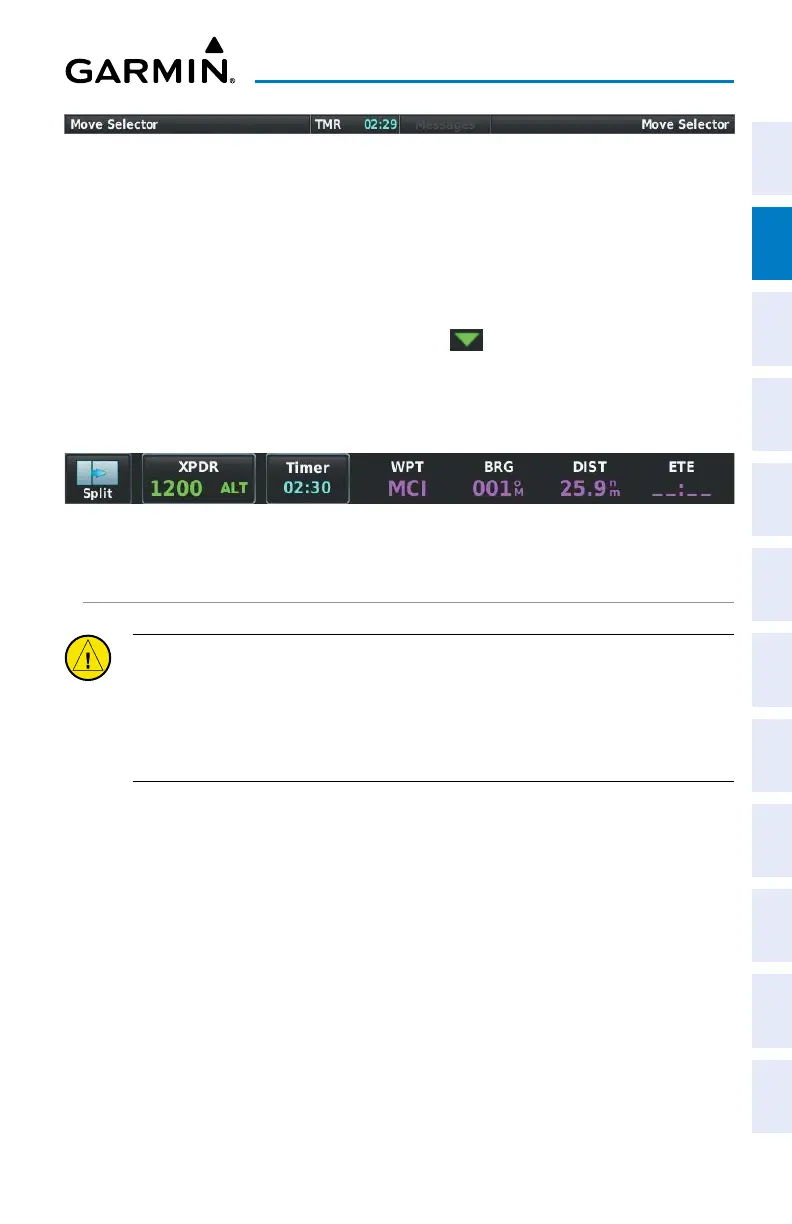

User Timer on Data Bar
ANGLE OF ATTACK (AOA)
CAUTION: The Angle of Attack display and stall warning is for reference only,
the aircraft's original stall warning system is the primary means of alerting
the pilot of an impending stall. Stall warning AOA may not provide the same
alert margin at different flap settings. AOA indication and the stall warning
function are only supported for positive G flight.
For G3X Touch installations that include a GAP 26 and a GSU 25, Angle of Attack
information can be displayed on the PFD. Refer to the G3X Touch Installation Manual
for the Angle of Attack Calibration procedure. During Angle of Attack Calibration Stall
Warning AOA, Caution Alert AOA, Minimum Visible AOA, and Approach Target AOA
(optional) settings are defined.
When AOA exceeds the calibrated Caution Alert threshold (AOA gauge , an
intermittent audible tone will be heard. The tone will increase in frequency until the
Stall Warning AOA, when it will play continuously.
When AOA is below the calibrated Minimum Visible AOA threshold, the angle of
attack gauge is not displayed.
