G3X TOUCH AFCS STATUS BOX
The AFCS status box displays Autopilot (AP), Optional Yaw Damper (YD), Flight
Director (FD) mode annunciations on the PFD, and Autopilot Preflight Test (PFT).
Autopilot (AP) status is displayed on the far left of the G3X Touch Autopilot Status
Box. Lateral modes are displayed in the center, and vertical modes are displayed on
the right. Armed modes are displayed in white and active in green.

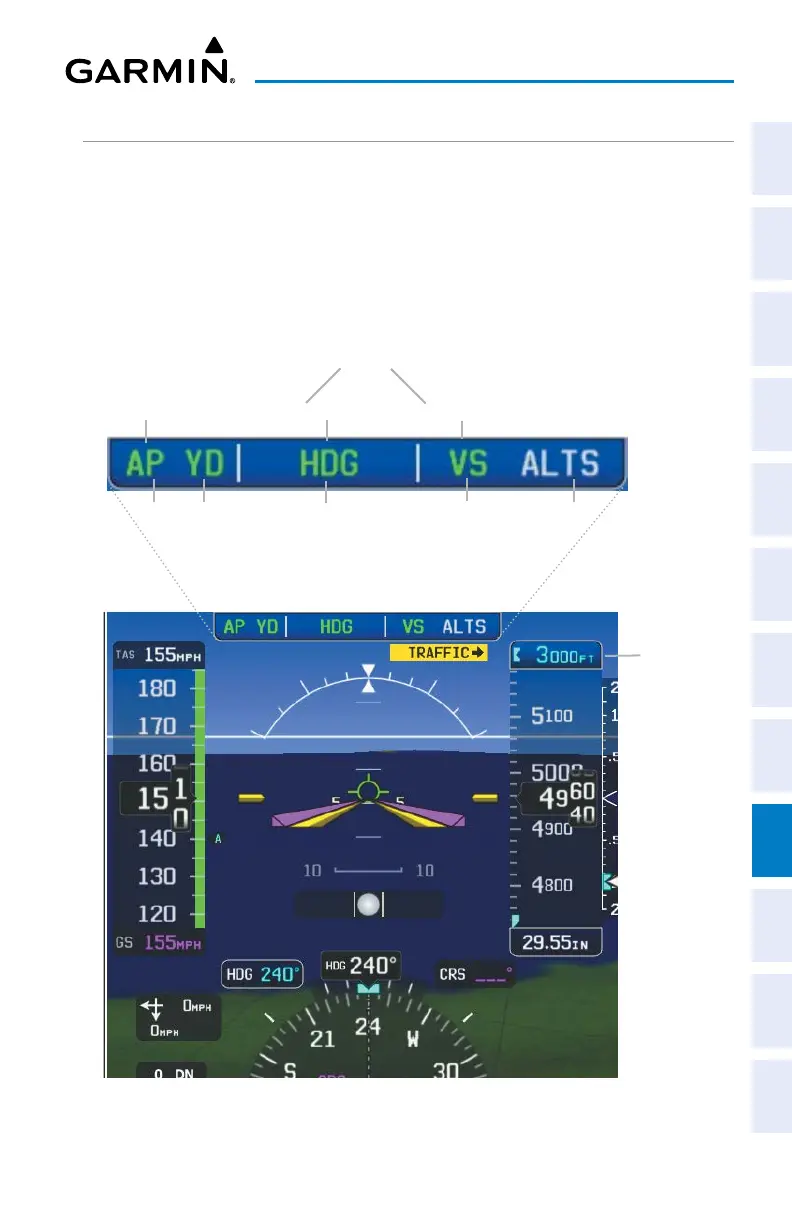

Autopilot Status Box
Autopilot Display
Selected
Altitude
Lateral Modes
Active Active
Autopilot
and
Yaw Damper
Status
Vertical Modes
Active
Armed
Flight Director
Modes
Active

Garmin G3X Touch Specifications

General

Power Input	10-32 VDC
Touchscreen	Yes
Built-in GPS	Yes
AHRS	Yes
Air Data Computer	Yes
Aviation Database	Yes
Terrain Awareness	Yes
Operating Temperature	-20°C to +55°C
Display Size	10.6 inches
Display Type	LCD
Connectivity	Wi-Fi, Bluetooth, USB, RS-232, CAN bus
Engine Monitoring	Yes
Autopilot Compatibility	Yes
Traffic Awareness	Yes
Weather Data	Yes
