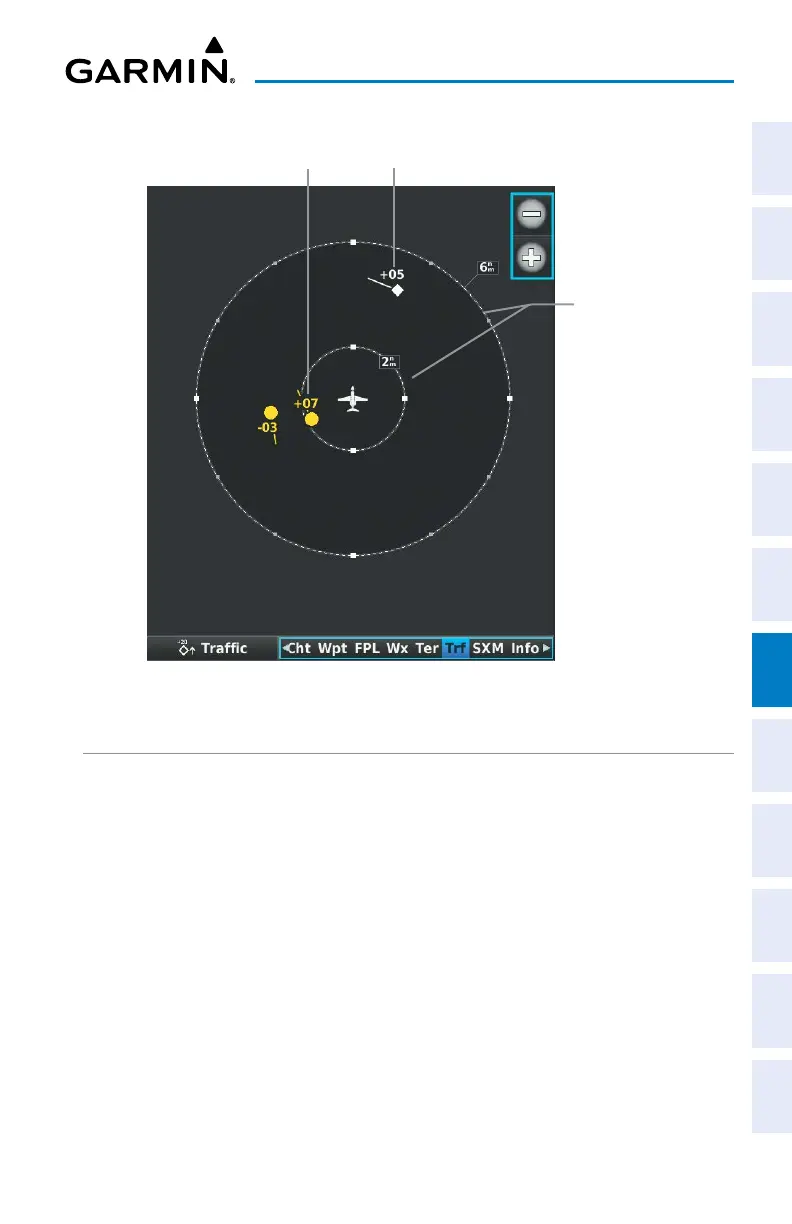

Traffic Page (GTS 8XX)
Traffic
Advisory,
700’ above
Traffic Display
Range Rings
Non-Threat
Traffic,
500’ above
DATA LINK TRAFFIC (OPTIONAL)
The ADS-B receiver is a receive-only data link radio with on-board GPS, 978 MHz
(Universal Access Transceiver frequency band), and 1090 MHz Extended Squitter (1090 ES)
receivers. It is designed to receive, process, and output traffic (ADS-B air-to-air, and TIS-B
traffic information), and weather (Flight Information Service-Broadcast (FIS-B)) information
to the G3X Touch system through an RS-232 serial connection or Bluetooth connection.
ADS-B (Automatic Dependent Surveillance-Broadcast) is a surveillance technology
deployed across the United States as the cornerstone of the FAA’s Next Generation Air
Transportation System (NextGen). ADS-B enables improved surveillance services, both
air-to-air and air-to-ground, especially in areas where radar is ineffective due to terrain
or where it is impractical or cost prohibitive. Initial applications of air-to-air ADS-B are
for “advisory” use only, enhancing a pilot’s visual acquisition of other nearby ADS-B
equipped aircraft either when airborne or on the airport surface.
